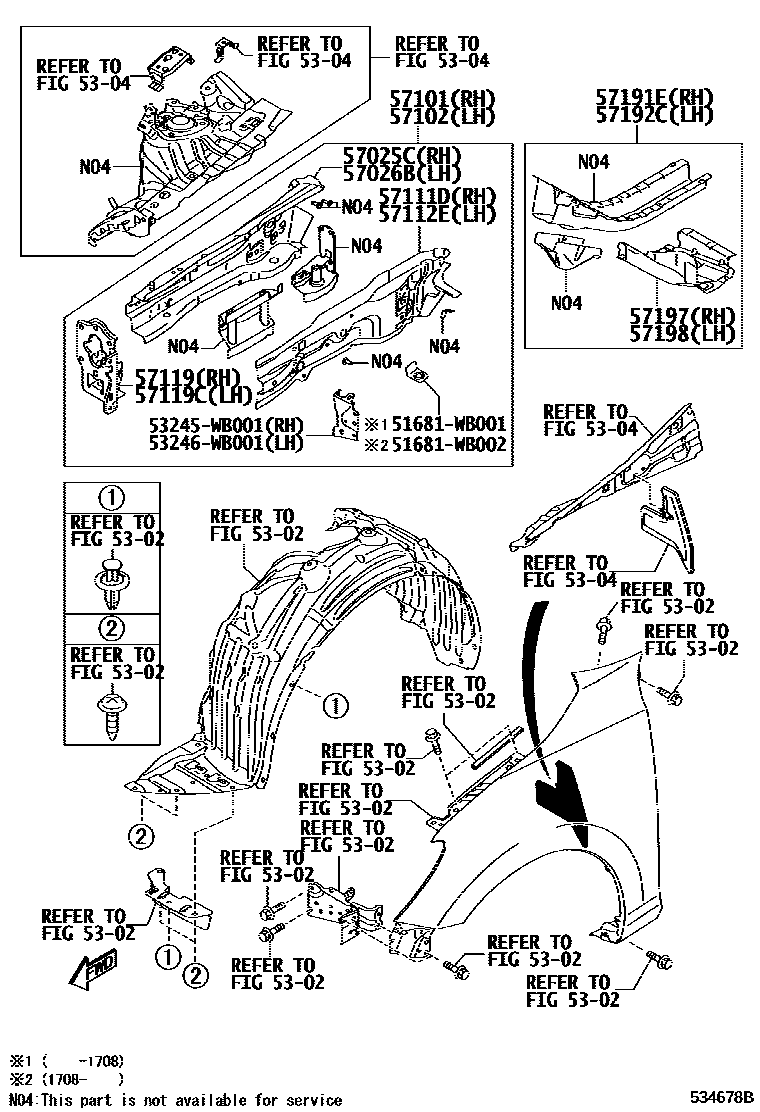

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1

5302

5304

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-WB001iDB7P,DD1B,DM0S,0T201506-201808

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-WB001iDB7P,DD1B,DM0S,0T201506-201808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-WB001iDB7P,DD1B201506-201612

sub57101-WB002

main57101-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201612

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-WB001iDB7P,DD1B201506-201612

sub57102-WB002

main57102-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201612

57111DMEMBER, FRONT SIDE, INNER RH

main57111-WB001iDB7P,DD1B,DM0S,0T201506-201808

57112EMEMBER, FRONT SIDE, INNER LH

main57112-WB001iDB7P,DD1B,DM0S,0T201506-201808

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-WB001iDB7P,DD1B,DM0S,0T201506-201808

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57129-WB001iDB7P,DD1B,DM0S,0T201506-201808

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-WB001iDB7P,DD1B,DM0S,0T201506-201808

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-WB001iDB7P,DD1B,DM0S,0T201506-201808

57197BOX, TORQUE, FRONT RH

main57197-WB001iDB7P,DD1B,DM0S,0T201506-201808

57198BOX, TORQUE, FRONT LH

main57198-WB001iDB7P,DD1B,DM0S,0T201506-201808

51681WB001BRACKET, FLEXIBLE HOSE

main51681-WB001

51681WB002BRACKET, FLEXIBLE HOSE

main51681-WB002

53245WB001BRACKET, HEADLAMP, RH

main53245-WB001

53246WB001BRACKET, HEADLAMP, LH

main53246-WB001

18 parts on this diagram · 5 diagrams in section
