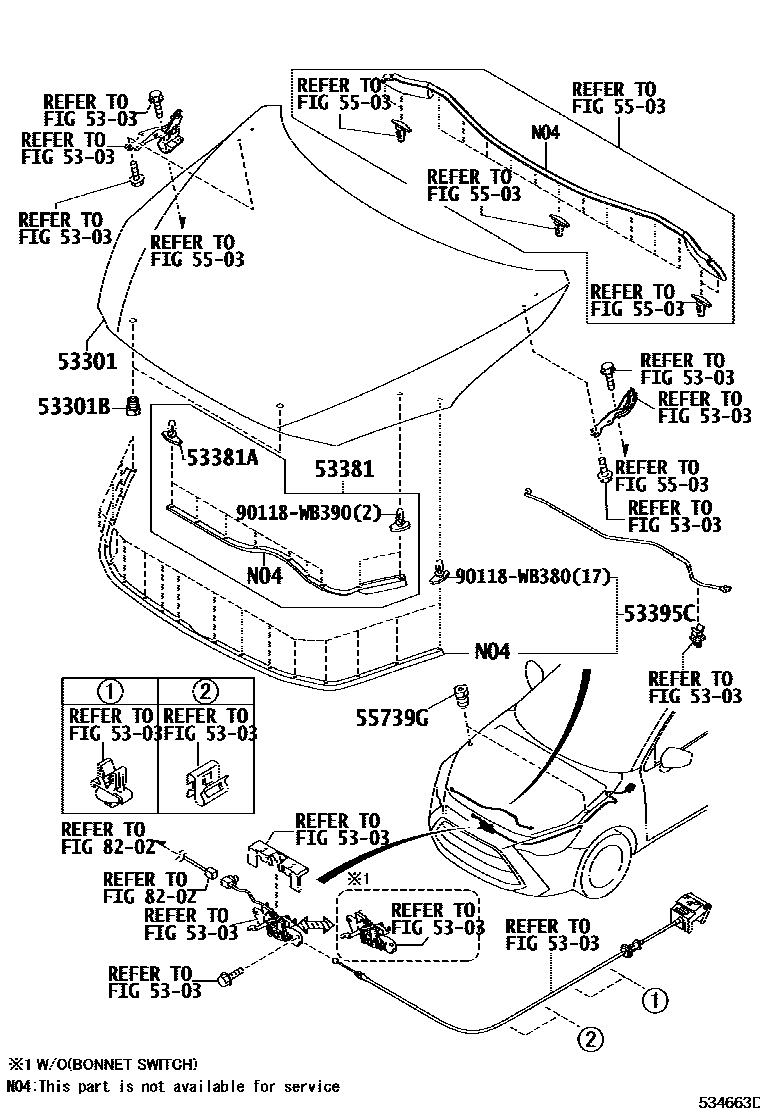

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

5303

53301HOOD SUB-ASSY

main53301-WB001iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

WITHOUT(R-DOT LABEL)

main53301-WB001iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

main53301-WB002iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

WITH(R-DOT LABEL)

53301BCUSHION, HOOD BUMPER

main55738-WB001iDB7P,DD1B,DM0S,0T201506-201808

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-WB001iDB7P,DD1B201506-201512

sub53381-WB002

main53381-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201512

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90118-WB008iDB7P,DD1B,DM0S,0T201506-201808

53395CSEAL, HOOD TO RADIATOR GRILLE

main53395-WB001iDB7P,DD1B201506-201512

sub53395-WB002

main53395-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201512

5503

55739GSTOPPER, HOOD

main55738-WB002iDB7P,DD1B,DM0S,0T201506-201808

8202

90118WB380

main90118-WB380

90118WB390

main90118-WB390

11 parts on this diagram · 7 diagrams in section
