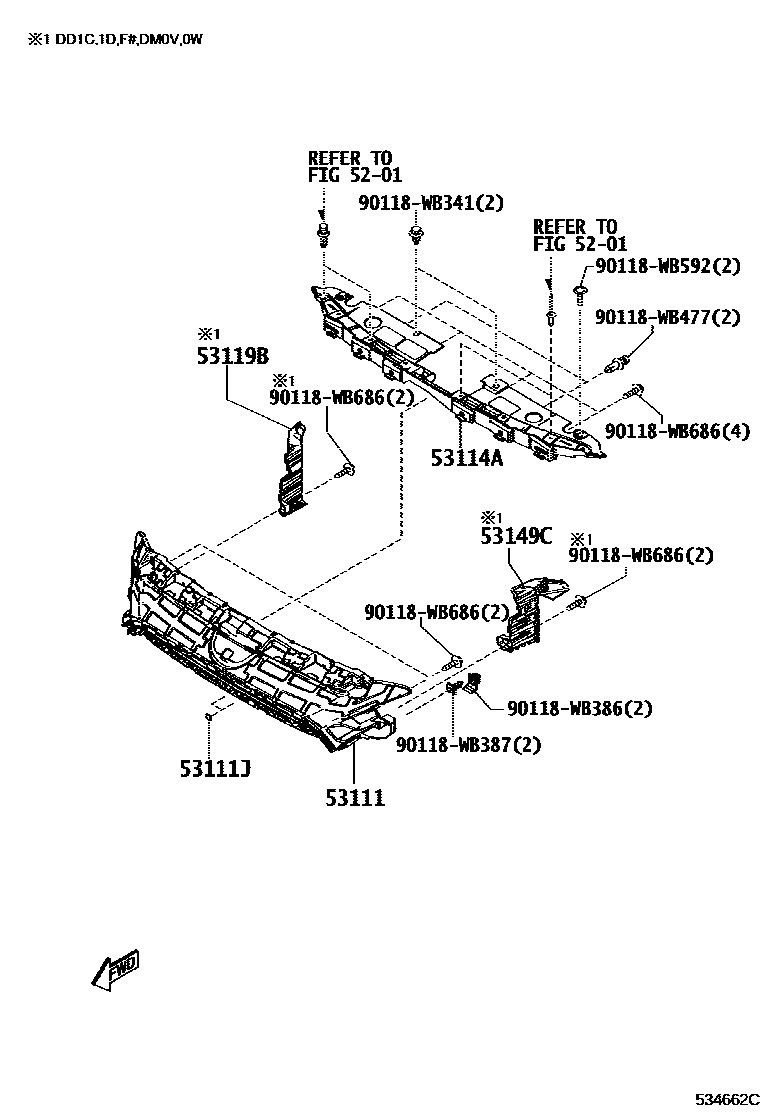

RADIATOR GRILLE

0001 1 0002 1

5201

53111GRILLE, RADIATOR

main53111-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201506-201808

53111JPROTECTOR, RADIATOR GRILLE

main90118-WB890iDB7P,DD1B,DM0S,0T201506-201808

53114AGRILLE, RADIATOR, INNER

main53114-WB001iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DD1C,1D,F#,DM0V,0W201506-201808

53119BPROTECTOR, RADIATOR GRILLE

main53119-WB002iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201508

53149CPROTECTOR, RADIATOR GRILLE, NO.2

main53149-WB002iDD1C,1D,DM0V,0W201508-201808

main53149-WB003iDDF#201808-201908

90118WB341

main90118-WB341

90118WB386

main90118-WB386

90118WB387

main90118-WB387

90118WB477

main90118-WB477

90118WB592

main90118-WB592

90118WB686

main90118-WB686

12 parts on this diagram · 2 diagrams in section
