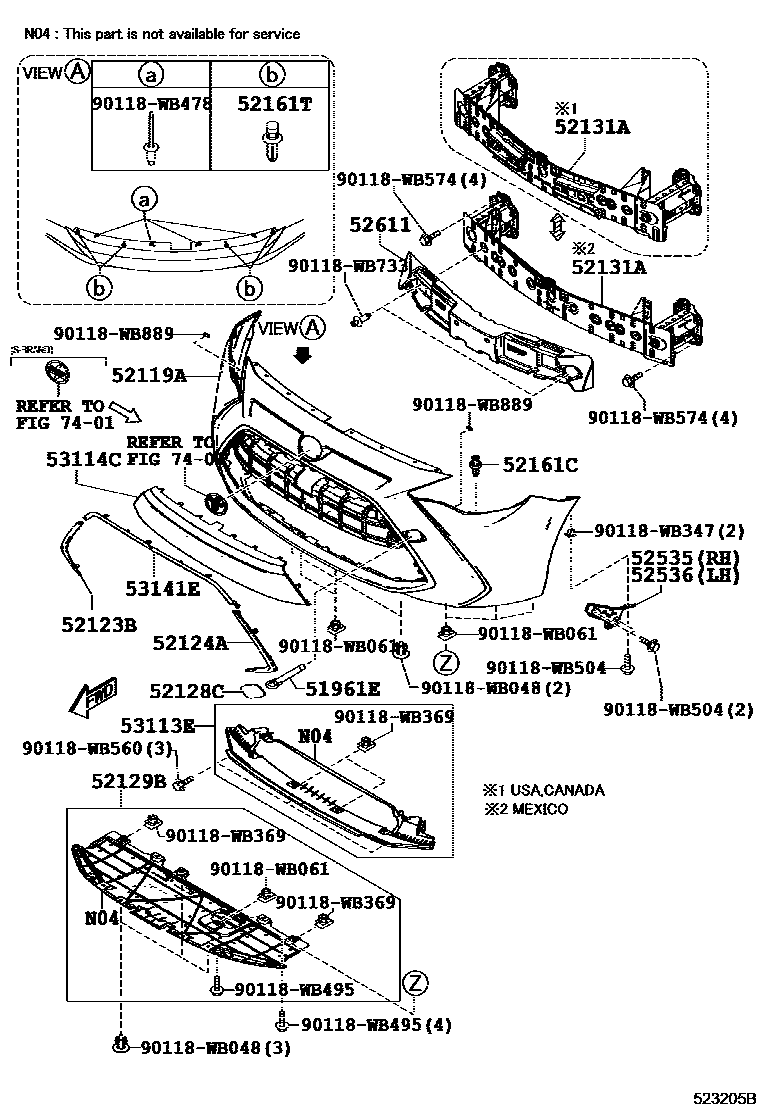

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

51961EHOOK, FRONT

main51961-WB001iDB7P,DD1B,DM0S,0T201506-201808

52119ACOVER, FRONT BUMPER

main52119-WB005iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201506

WITH(R-DOT LABEL)

main52119-WB006iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201506

WITHOUT(R-DOT LABEL)

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main53123-WB001iDB7P,DD1B,DM0S,0T201506-201808

52124APLATE, FRONT BUMPER REINFORCEMENT

main53124-WB001iDB7P,DD1B,DM0S,0T201506-201808

52128CCOVER, FRONT BUMPER HOLE, LH

main52128-WB002iDB7P,DD1B201506-201607

MATERIAL (PAINT TO MATCH),38P,41G,41W,42A,42M,44J,A4D

main52128-WB002iDB7P,DD1#201607-201609

MATERIAL (PAINT TO MATCH),41G ,41W ,42A ,42M ,44J ,A4D

main52128-WB002iDADW1,DAEA1,DAEB1,DAEC1,DAED1,DAEE1,DB7P,DD1#,F#,DM0#201609

MATERIAL (PAINT TO MATCH),41G ,41W ,42A ,42M ,44J ,45P ,A4D

52129BCOVER, FRONT BUMPER, LOWER

main52129-WB001iDB7P,DD1B,DM0S,0T201506-201808

52131AREINFORCEMENT, FRONT BUMPER

main52131-WB001iDB7P,DD1B201506-201510

sub52131-WB003

main52131-WB002iDD1C,1D201508-201510

sub52131-WB004

main52131-WB003iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F4,F5,DM0S,0T201510

main52131-WB004iDAED1,DAEE1,DD1C,1D,F8,F9,DM0V,0W201510

52161CPIECE, FRONT BUMPER

main52161-WB001iDB7P,DD1B,DM0S,0T201506-201808

52161TPIECE, FRONT BUMPER

main90118-WB477iDB7P,DD1B,DM0S,0T201506-201808

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-WB002iDB7P,DD1B,DM0S,0T201506-201808

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-WB002iDB7P,DD1B,DM0S,0T201506-201808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-WB001iDB7P,DD1B201506-201508

sub52611-WB002

main52611-WB002iDADW1,DAEA1,DAEB1,DAEC1,DB7P,DD1B,F#,DM0S,0T201508

53113EGRILLE, RADIATOR, LOWER NO.2

main53113-WB001iDB7P,DD1B,DM0S,0T201506-201808

53114CGRILLE, RADIATOR, INNER

main53114-WB003iDD1C,1D,DM0V,0W201506-201808

main53114-WB004iDAEA1,DAEC1,DAED1,DDF8,9..(BASE,ENTRY)..(A,D,E);DADW1,DAEB1,DAEE1,DDF4,5..(BASE,ENTRY)..(B,C,D,F)201808

main53114-WB006iDDF4..A;DDF5..A,C,E,G;DAEA1,DDF9..B,C,E;DADW1,DAEC1,DAEE1..(BASE,HI)..(A,C,D,F)201808

53141ECOVER, RADIATOR, NO.1

main53141-WB002iDB7P,DD1B,DM0S,0T201506-201808

7401

90118WB048

main90118-WB048

90118WB061

main90118-WB061

90118WB347

main90118-WB347

90118WB369

main90118-WB369

90118WB478

main90118-WB478

90118WB495

main90118-WB495

90118WB504

main90118-WB504

90118WB560

main90118-WB560

90118WB574

main90118-WB574

90118WB733

main90118-WB733

90118WB889

main90118-WB889

27 parts on this diagram · 7 diagrams in section
