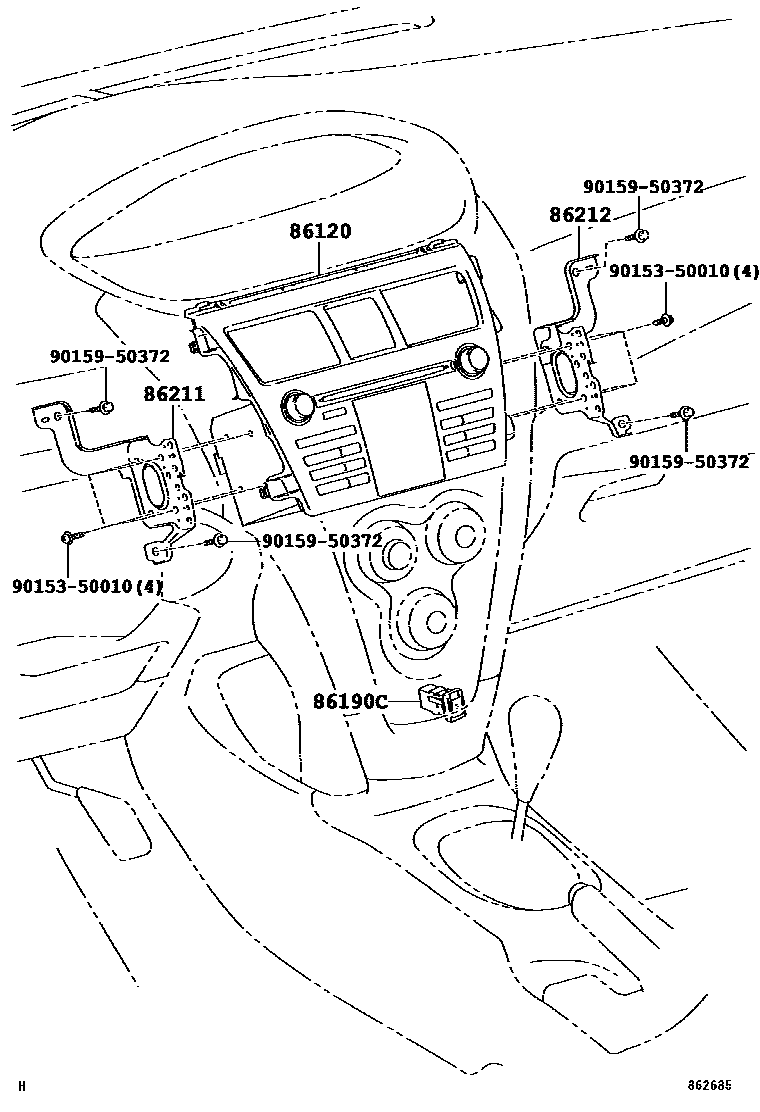

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-52490iNCP93..USA200602-200808

FUJITSU TEN,ID=11807

main86120-52490iNCP93..USA200602-200808

FUJITSU TEN,ID=11807,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA NEW MULTI

main86120-52510iNCP93..USA200808-201211

FUJITSU TEN,ID=11841,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA NEW MULTI

main86120-52510iNCP93..CND200808-201108

FUJITSU TEN,ID=11841

main86120-52690iNCP93..USA200602-200808

FUJITSU TEN,ID=11814,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA

main86120-52A70iNCP93..USA200808-201211

FUJITSU TEN,ID=11839,AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA EXTRA

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-48010iNCP93..USA200808-201108

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA NEW MULTI

main86190-53010iNCP93..CND200602-200808

AUDIO (OVERSEAS MARKET)-AM/FM CD 4SPEAKER USA NEW MULTI

86211BRACKET, RADIO, NO.1

main86211-52210iNCP93200602-200808

86212BRACKET, RADIO, NO.2

main86212-52220iNCP93200602-200808

9015350010

main90153-50010

9015950372

main90159-50372

6 parts on this diagram · 3 diagrams in section
