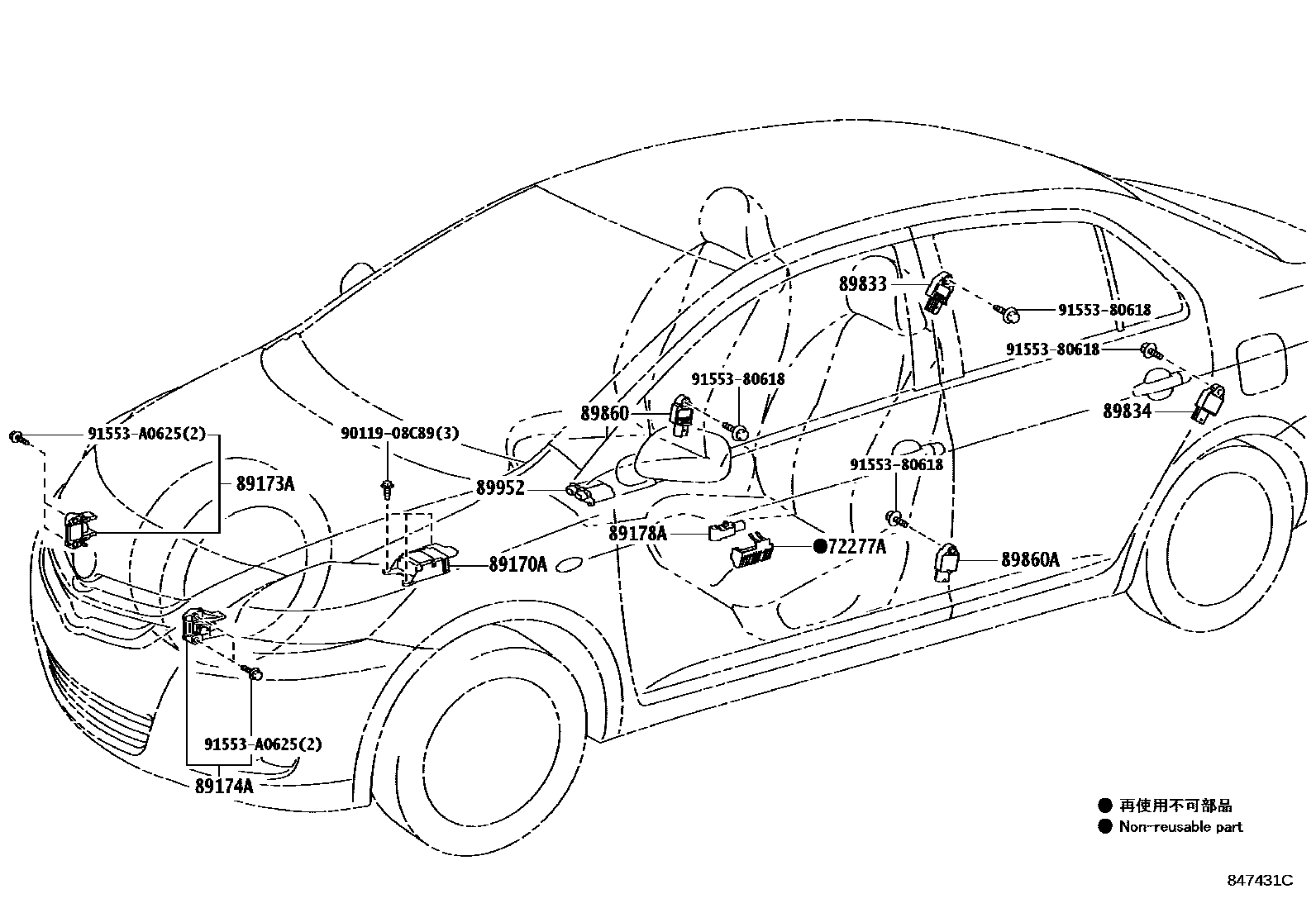

AIR BAG
72277APROTECTOR, SEAT SLIDE POSITION SENSOR
89170ACOMPUTER ASSY, AIRBAG
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
MEXICO SPEC&SRS AIR BAG-DRIVER
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89178ASENSOR, SEAT POSITION AIRBAG
89833SENSOR, AIRBAG, REAR RH
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
89834SENSOR, AIRBAG, REAR LH
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
89860SENSOR ASSY, SIDE AIRBAG, RH
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
89860ASENSOR ASSY, SIDE AIRBAG, LH
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
SRS AIR BAG-D(DUAL) & P(ADVANCED) & SIDE & CURTAIN
89952COMPUTER, OCCUPANT DETECTION
9011908C89
main90119-08C89
9155380618
main91553-80618
91553A0625
main91553-A0625
13 parts on this diagram · 1 diagram in section
