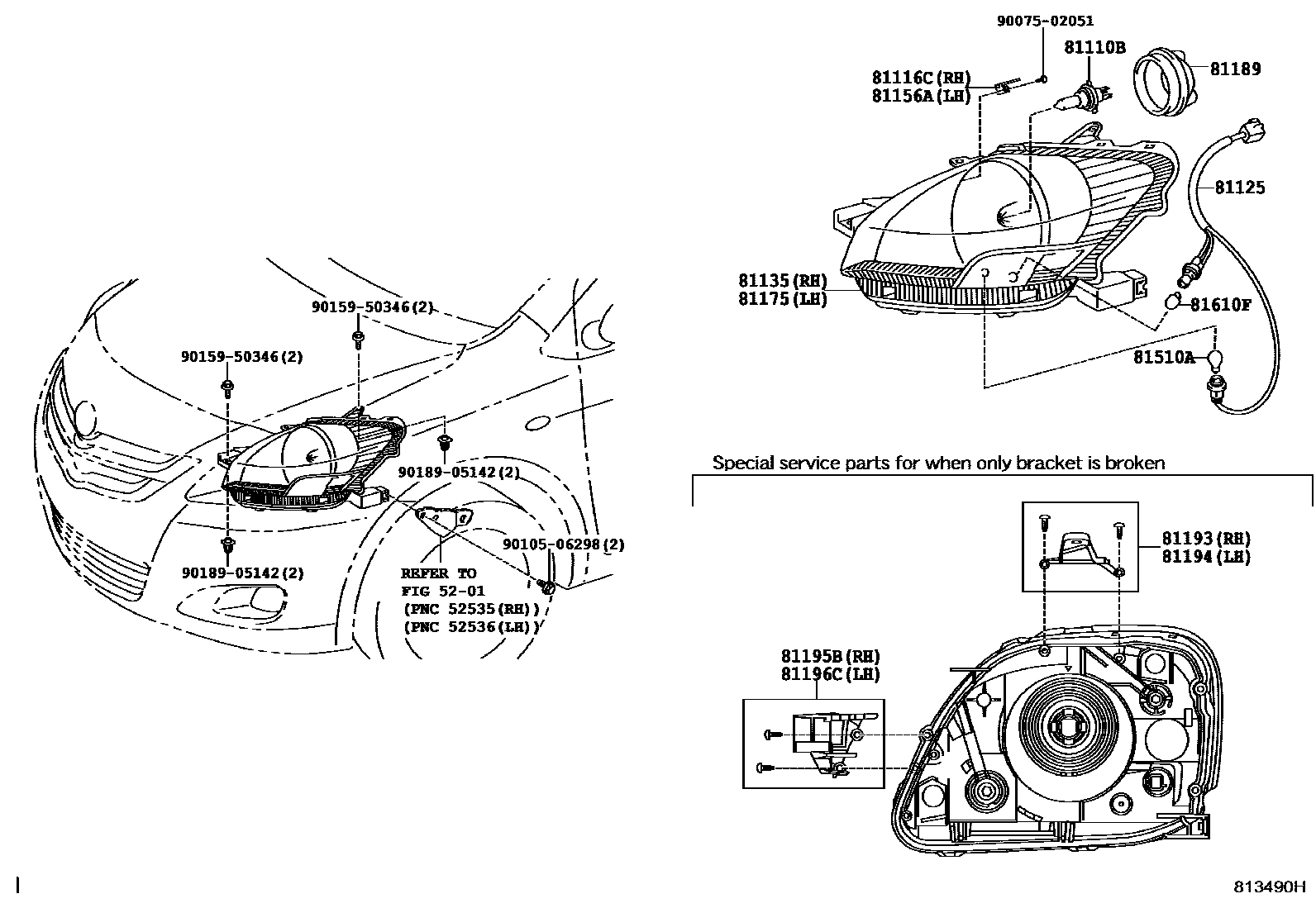

HEADLAMP

5201

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iNCP93200602-200808

12V 60/55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-52730iNCP93200602-200808

81125CORD, HEADLAMP

main81125-52750iNCP93200602-201108

main81125-52F20iNCP93201108

81135UNIT ASSY, HEADLAMP, RH

main81130-52750iNCP93200602-201108

main81130-52A90iNCP93200808-201108

HEADLAMP-2-HALOGEN(S PACKAGE)

main81130-52F20iNCP93201108

81156ABRACKET, HEADLAMP, LH

main81116-52730iNCP93200602-200808

81175UNIT ASSY, HEADLAMP, LH

main81170-52740iNCP93200602-201108

main81170-52A80iNCP93200808-201108

HEADLAMP-2-HALOGEN(S PACKAGE)

main81170-52F20iNCP93201108

81189COVER, HEADLAMP

main90075-65002iNCP93200602-200808

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52120iNCP93200602-200808

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52120iNCP93200602-200808

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-52080iNCP93200602-200808

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-52080iNCP93200602-200808

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-13044iNCP93200602-201108

12V 21/5W

main90981-15024iNCP93201108

12V 28/8W

81610FBULB(FOR CLEARANCE LAMP)

main90981-15012iNCP93201108

12V 5W

main99132-12050iNCP93200602-201108

12V 5W

9007502051

main90075-02051

9010506298

main90105-06298

9015950346

main90159-50346

9018905142

main90189-05142

18 parts on this diagram · 1 diagram in section
