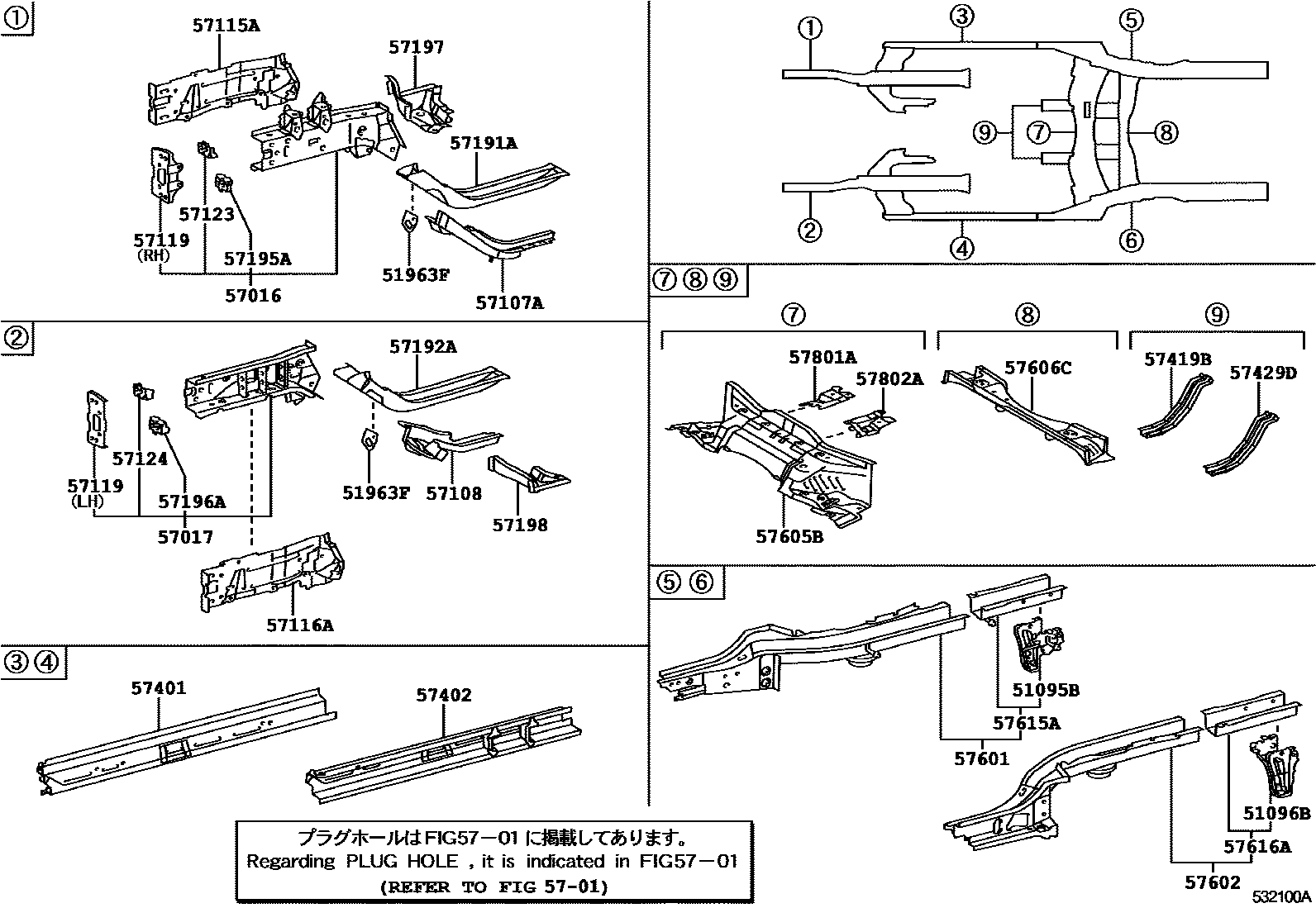

FLOOR SIDE MEMBER

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-52020iNCP93200602-200808

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-52010iNCP93200602-200808

51963FHOOK, TRANSPORT

main51963-52050iNCP93200602-200808

5701

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52070iNCP93200602-200808

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52060iNCP93200602-200808

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-52030iNCP93200602-200808

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-52030iNCP93200602-200808

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-52010iNCP93200602-200808

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-52010iNCP93200602-200808

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-52020iNCP93200602-200808

RH

main57129-52010iNCP93200602-200808

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-52010iNCP93200602-200808

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-52010iNCP93200602-200808

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNCP93200602-200808

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNCP93200602-200808

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-52020iNCP93200602-200808

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-52010iNCP93200602-200808

57197BOX, TORQUE, FRONT RH

main57197-52030iNCP93200602-200808

57198BOX, TORQUE, FRONT LH

main57198-52030iNCP93200602-200808

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-52170iNCP93200602-201010

sub57401-52190

main57401-52190iNCP93201010

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-52190iNCP93200602-201010

sub57402-52210

main57402-52210iNCP93201010-201409

sub57402-52280

main57402-52280iNCP93201410

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-52070iNCP93200602-200808

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-52080iNCP93200602-200808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52270iNCP93200602-201310

sub57601-52420

main57601-52272iNCP93201401-201412

sub57601-52273

main57601-52273iNCP93201501

main57601-52420iNCP93201310-201312

sub57601-52272

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52320iNCP93200602-201310

sub57602-52490

main57602-52322iNCP93201401-201412

sub57602-52323

main57602-52323iNCP93201501

main57602-52490iNCP93201310-201312

sub57602-52322

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52110iNCP93200602-201307

sub57605-52111

main57605-52111iNCP93201308-201511

sub57605-52112

main57605-52112iNCP93201512

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52170iNCP93200602-201304

sub57606-52171

main57606-52171iNCP93201305

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-52907iNCP93200602-200808

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-52908iNCP93200602-200808

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-52100iNCP93200602-200808

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-52100iNCP93200602-200808

31 parts on this diagram · 1 diagram in section
