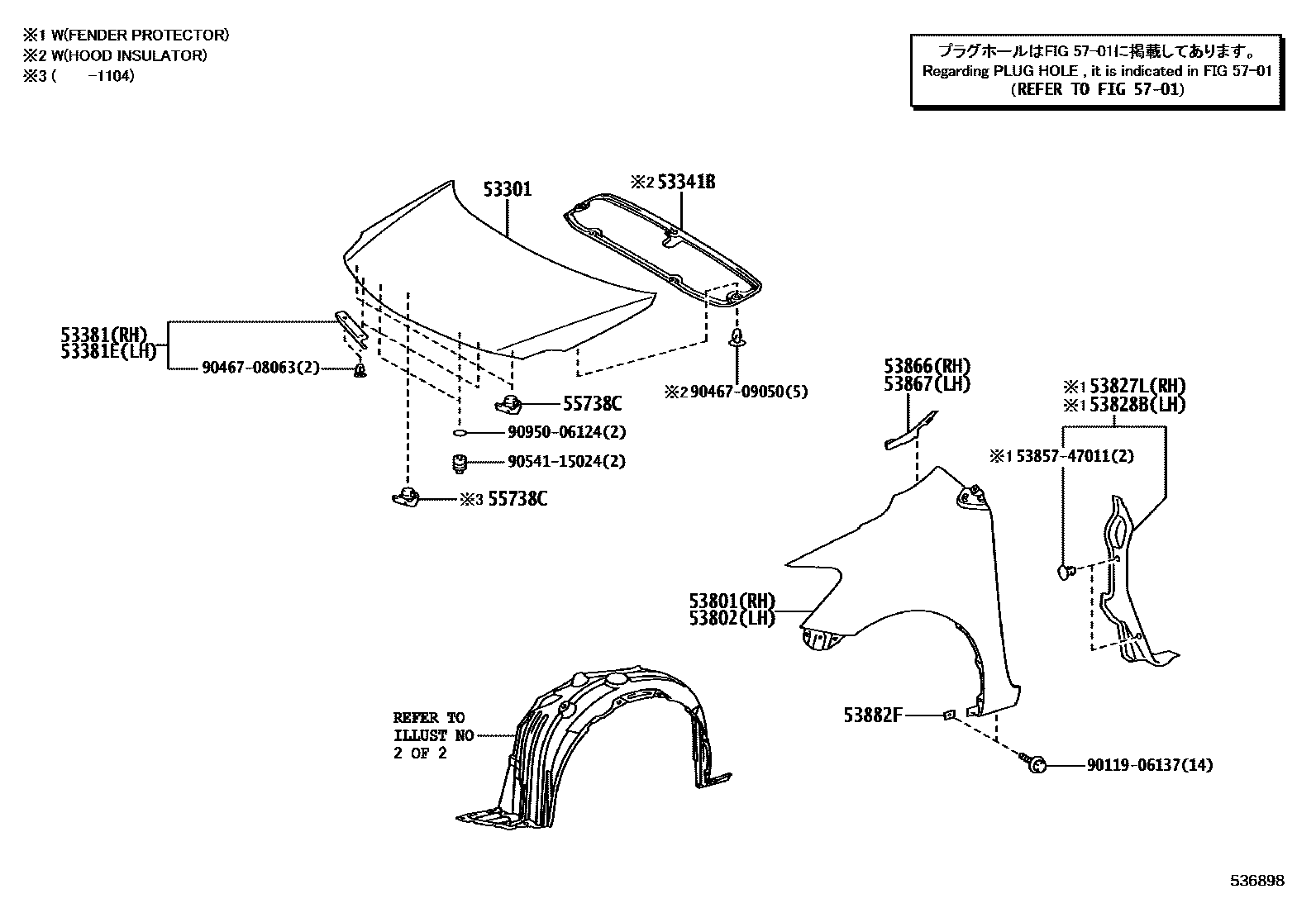

HOOD & FRONT FENDER
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ESEAL, HOOD TO RADIATOR SUPPORT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
S PACKAGE(POWER PACKAGE)
S PACKAGE(POWER PACKAGE)&COLD AREA SPEC
COLD AREA SPEC
POWER PACKAGE
POWER PACKAGE&COLD AREA SPEC
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
S PACKAGE(POWER PACKAGE)&COLD AREA SPEC
POWER PACKAGE
POWER PACKAGE&COLD AREA SPEC
COLD AREA SPEC
S PACKAGE(POWER PACKAGE)
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882FSEAL, FRONT FENDER
55738CSTOPPER, HOOD, RH
5701
5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH
main53857-47011
9011906137
main90119-06137
9046708063
main90467-08063
9046709050
main90467-09050
9054115024
main90541-15024
9095006124
main90950-06124
19 parts on this diagram · 2 diagrams in section
