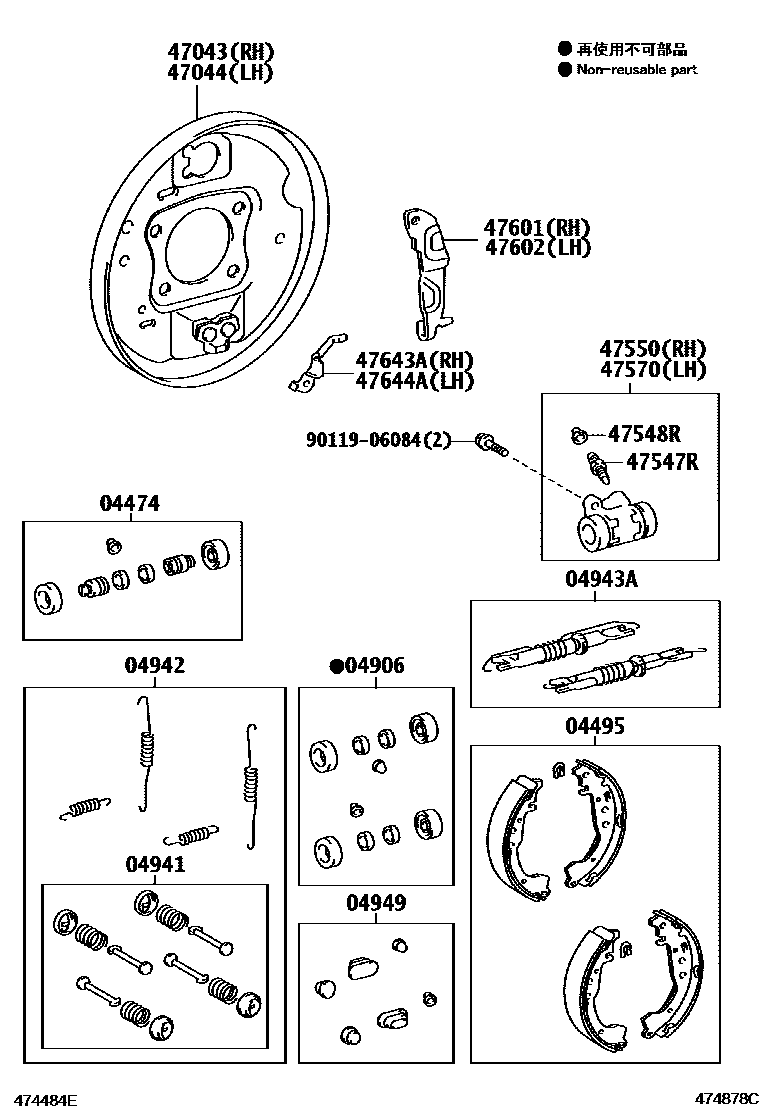

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020iNCP93¥1,730200602-200808

04495SHOE KIT, REAR BRAKE

main04495-52100iNCP93¥6,300200602-201306

MARK NBK LN521

sub04495-52140¥6,300

main04495-52150iNCP93¥7,100201306-201404

MARK NBK LN521

main04495-52170iNCP93¥3,440201404

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNCP93¥870200602-200808

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-46010iNCP93¥1,690200602-200808

04942SPRING KIT, REAR BRAKE

main04942-52050iNCP93¥2,060200602-200808

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNCP93¥2,730200602-200808

04949PLUG KIT, REAR BRAKE

main04949-12010iNCP93¥800200602-200808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iNCP93¥2,370200602-200808

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iNCP93¥2,370200602-200808

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNCP93¥200200602-200808

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNCP93¥160200602-200808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNCP93¥3,130200602-200808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-20101iNCP93¥3,130200602-200808

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52100iNCP93¥580200602-201306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52100iNCP93¥580200602-201306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNCP93¥200200602-201404

main47643-52102iNCP93¥200201404

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNCP93¥200200602-201404

main47644-52102iNCP93¥200201404

9011906084

main90119-06084¥100

18 parts on this diagram · 2 diagrams in section
