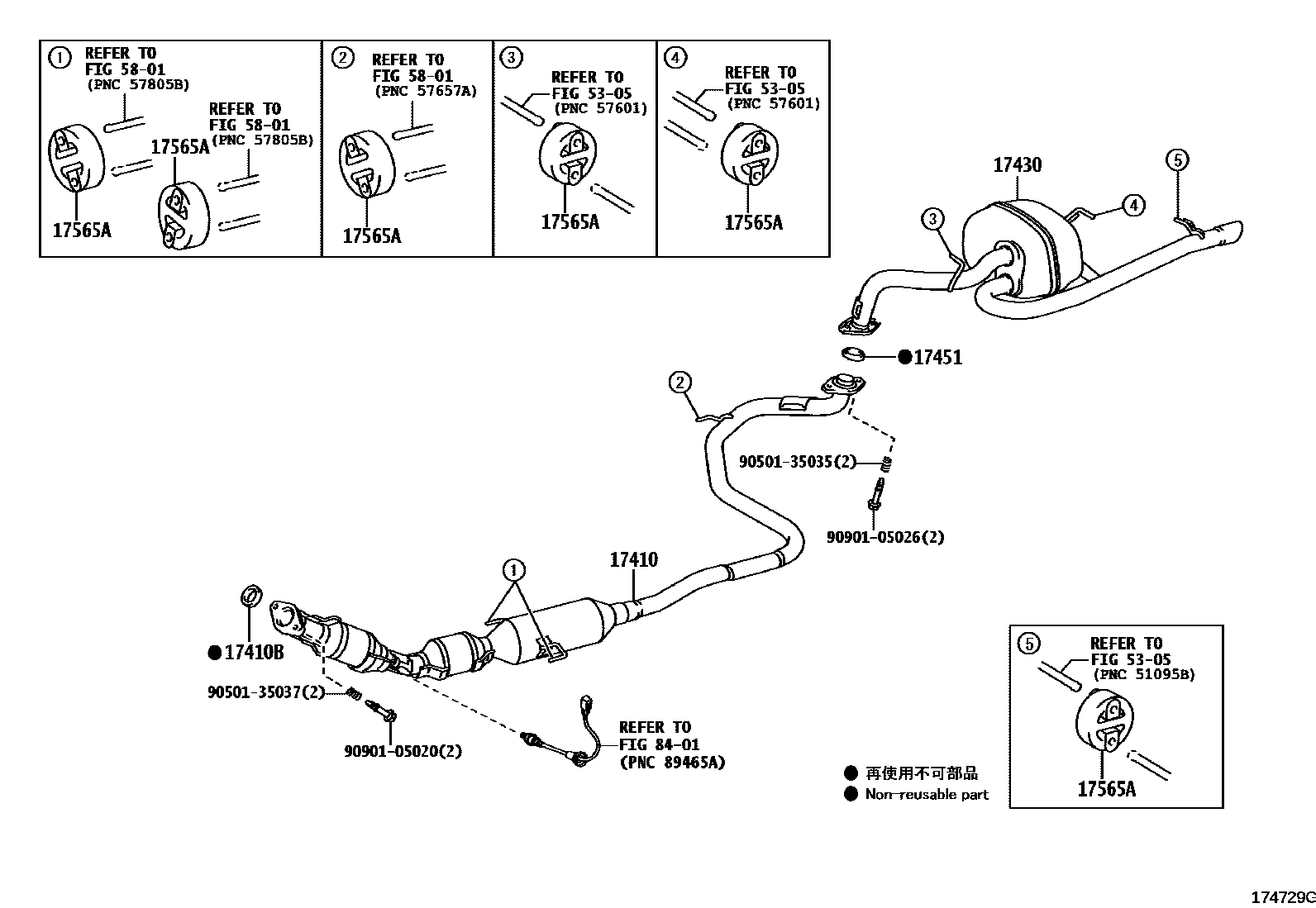

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21680i1NZFE..NCP93200602-200912

sub17410-21681

main17410-21681i1NZFE..NCP93201001

17410BGASKET, EXHAUST PIPE

main17451-21070i1NZFE..NCP93200602-200808

17430PIPE ASSY, EXHAUST, TAIL

main17430-21640i1NZFE..NCP93200602-200709

sub17430-21641

main17430-21641i1NZFE..NCP93200710-201105

sub17430-21642

main17430-21642i1NZFE..NCP93201106

17451GASKET, EXHAUST PIPE

main17451-23040i1NZFE..NCP93200602-200707

sub17451-23041

main17451-23041i1NZFE..NCP93200708-201009

sub17451-23042

main17451-23042i1NZFE..NCP93201010

sub17451-23043

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-40010i1NZFE..NCP93200602-201009

sub17565-47010

main17565-47010i1NZFE..NCP93201010

5305

5801

8401

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
