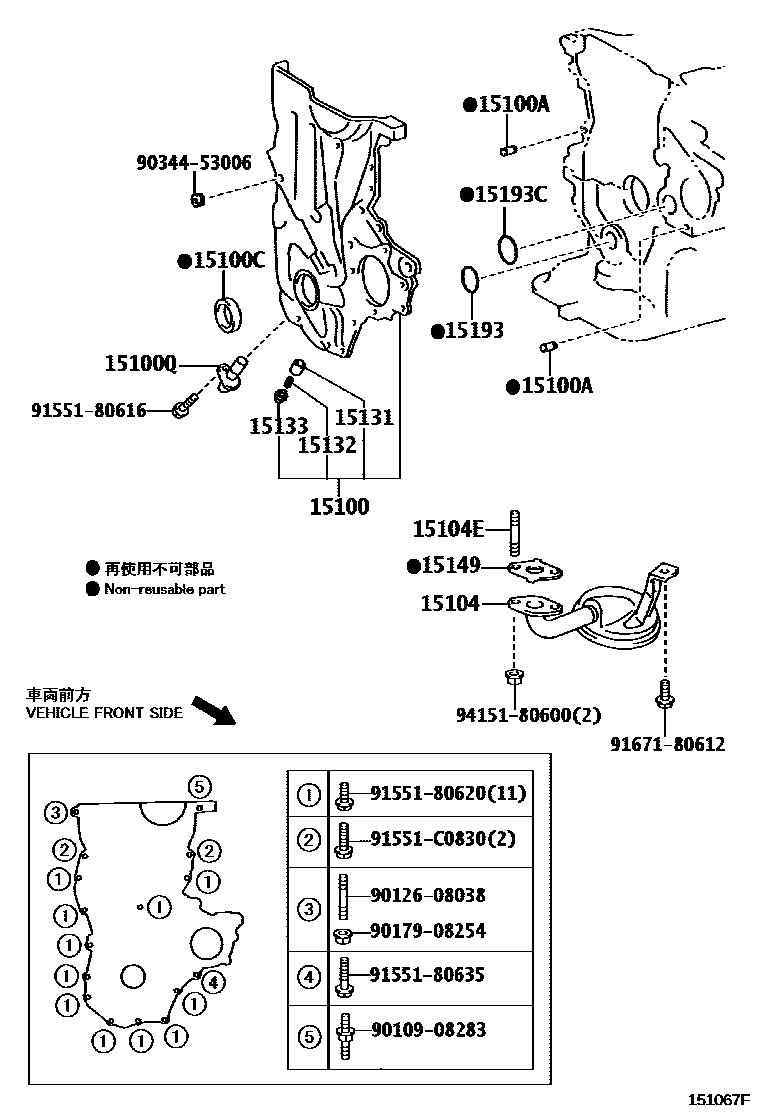

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NCP93200808-201111

main15100-21042i1NZFE..NCP93201111-201204

main15100-21043i1NZFE..NCP93201204

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFE..NCP93200602-200808

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NCP93200602-200808

main90311-25032i1NZFE..NCP93201204-201310

main90311-25033i1NZFE..NCP93201311

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP93200602-200808

main90919-05081i1NZFE..NCP93201105-201305

main90919-05087i1NZFE..NCP93201305

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NCP93200602-200612

main15104-21022i1NZFE..NCP93200808

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFE..NCP93200602-200808

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP93200602-200808

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NCP93200602-200808

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NCP93200602-200808

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NCP93200602-200808

15193GASKET, OIL PUMP

main12151-21010i1NZFE..NCP93201111

main90301-31012i1NZFE..NCP93200602-200808

15193CGASKET, OIL PUMP NO.2

main11497-21010i1NZFE..NCP93201111

main90301-42006i1NZFE..NCP93200602-200808

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

22 parts on this diagram · 2 diagrams in section
