WINDSHIELD WIPER

55812EBRACKET, COWL VENTILATOR

main55812-52040iNCP12199908-200208

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52130iNCP12..USA199908-200208

main85110-52140iNCP12..USA199908-200208

NORTH AMERICA SPEC

sub85110-52090

85160LINK ASSY, WINDSHIELD WIPER

main85150-52080iNCP12..USA199908-200208

main85150-52090iNCP12..USA199908-200208

NORTH AMERICA SPEC

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iNCP12199908-200208

85211BARM, FRONT WIPER, RH

main85211-52100iNCP12199908-200208

85212ABLADE, FR WIPER, RH

main85212-44031iNCP12199908-200511

sub85212-44032

85214ARUBBER, WIPER, RH

main85214-44031iNCP12199908-200312

sub85214-68010

main85214-68010iNCP12200312-200602

sub85214-68011

85214BRUBBER, WIPER, LH

main85214-33100iNCP12199908-200106

sub85214-48010

main85214-48010iNCP12200106-200511

85221BARM, FRONT WIPER, LH

main85221-52100iNCP12199908-200208

85222ABLADE, FR WIPER, LH

main85222-33140iNCP12199908-200208

sub85222-33180

main85222-33180iNCP12200208-200511

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-44031iNCP12199908-200208

sub85224-44070

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-44031iNCP12199908-200208

sub85224-44070

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33040iNCP12199908-200208

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33040iNCP12199908-200208

9011906806

main90119-06806

9017908113

main90179-08113

9338116010

main93381-16010

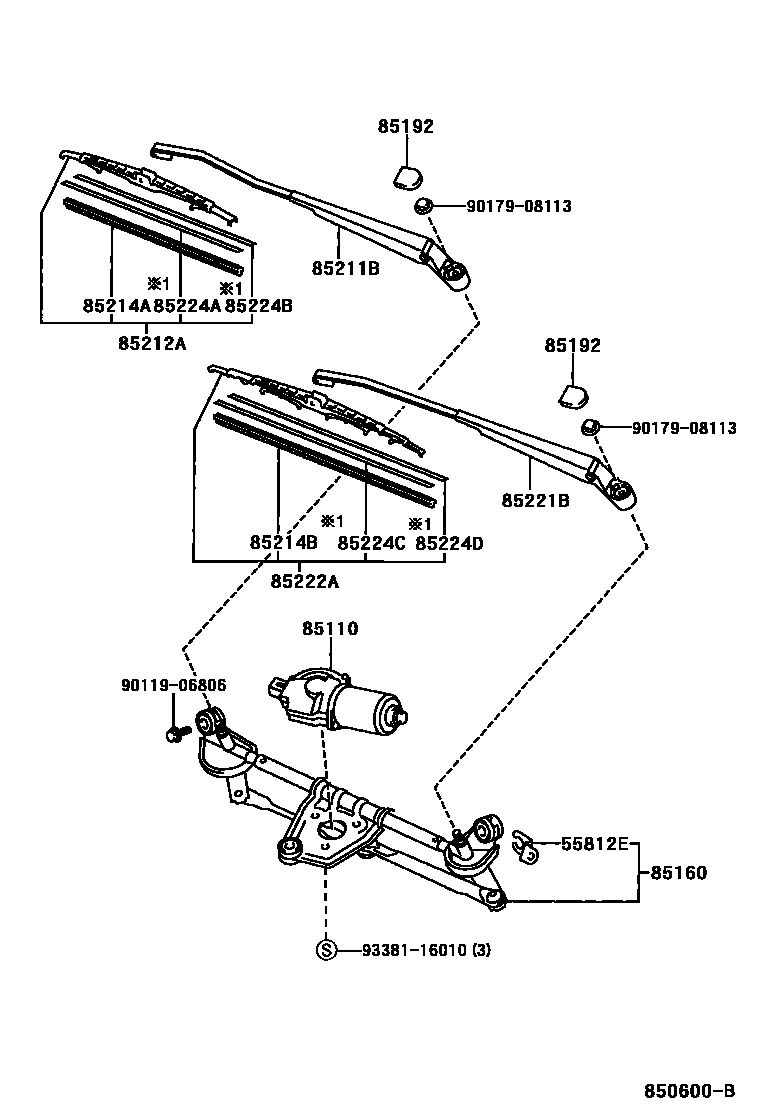

17 parts on this diagram · 1 diagram in section
