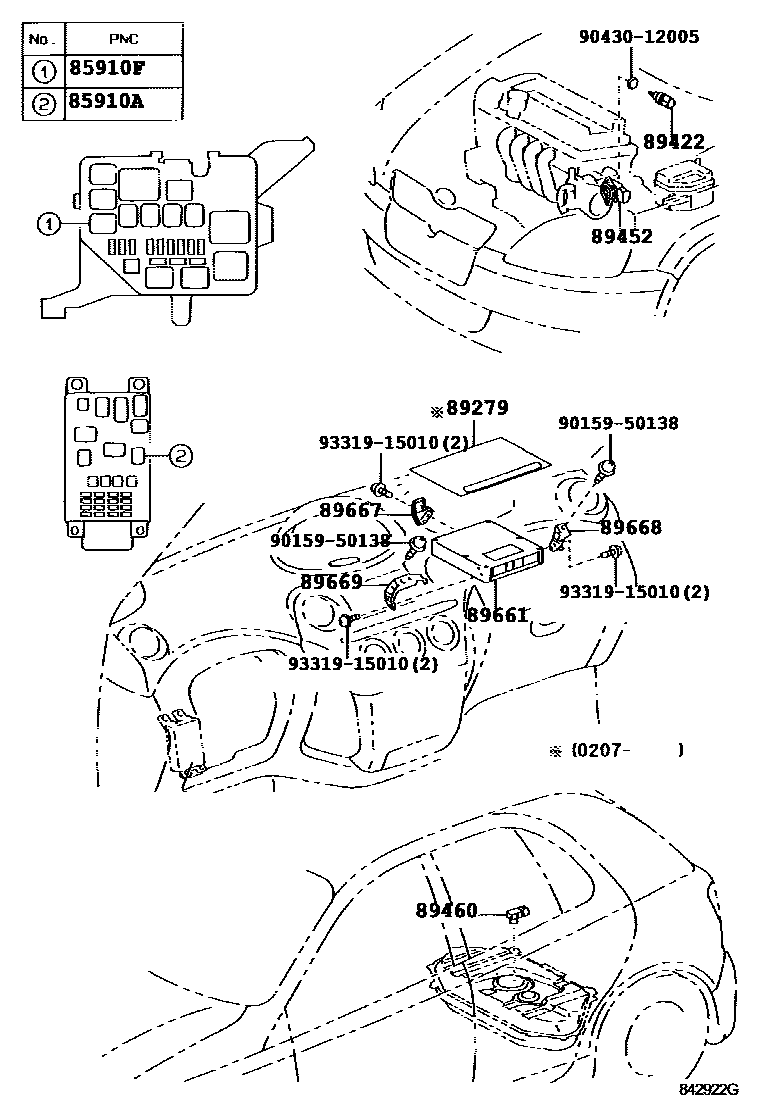

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP12199908-200212

main90987-02027iNCP12200212

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP12199908-200112

main90987-02022iNCP12200112-200212

main90987-02027iNCP12200212

89279COVER, ENGINE CONTROL COMPUTER

main89279-52040iNCP12200207-200208

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP12199908-200602

MARK 89422-16010*369

main89422-22030iNCP12199908-200602

MARK 89422-22030*369

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP12199908-200208

89460SENSOR ASSY, VAPOR PRESSURE

main89461-35010iNCP12199908-200511

89661COMPUTER, ENGINE CONTROL

main89661-52260iNCP12..MTM200107-200208

main89661-52270iNCP12..ATM200107-200208

main89661-52660iNCP12..MTM199908-200003

sub89661-52661

main89661-52661iNCP12..MTM200003-200004

sub89661-52662

main89661-52662iNCP12..MTM200004-200008

sub89661-52664

main89661-52663iNCP12..MTM200008-200102

sub89661-52664

main89661-52664iNCP12..MTM200102-200107

main89661-52671iNCP12..ATM199908-200003

sub89661-52672

main89661-52672iNCP12..ATM200003-200004

sub89661-52673

main89661-52673iNCP12..ATM200004-200008

main89661-52674iNCP12..ATM200008-200102

sub89661-52675

main89661-52675iNCP12..ATM200102-200107

main89661-5C230iNCP12..MTM200208-200408

main89661-5C240iNCP12..ATM200208-200408

main89661-5C260iNCP12..MTM200408

main89661-5C270iNCP12..ATM200408

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52020iNCP12199908-200208

main89667-52120iNCP12200208

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52020iNCP12199908-200208

main89668-52130iNCP12200208

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52020iNCP12199908-200208

main89669-52080iNCP12200208

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

13 parts on this diagram · 1 diagram in section
