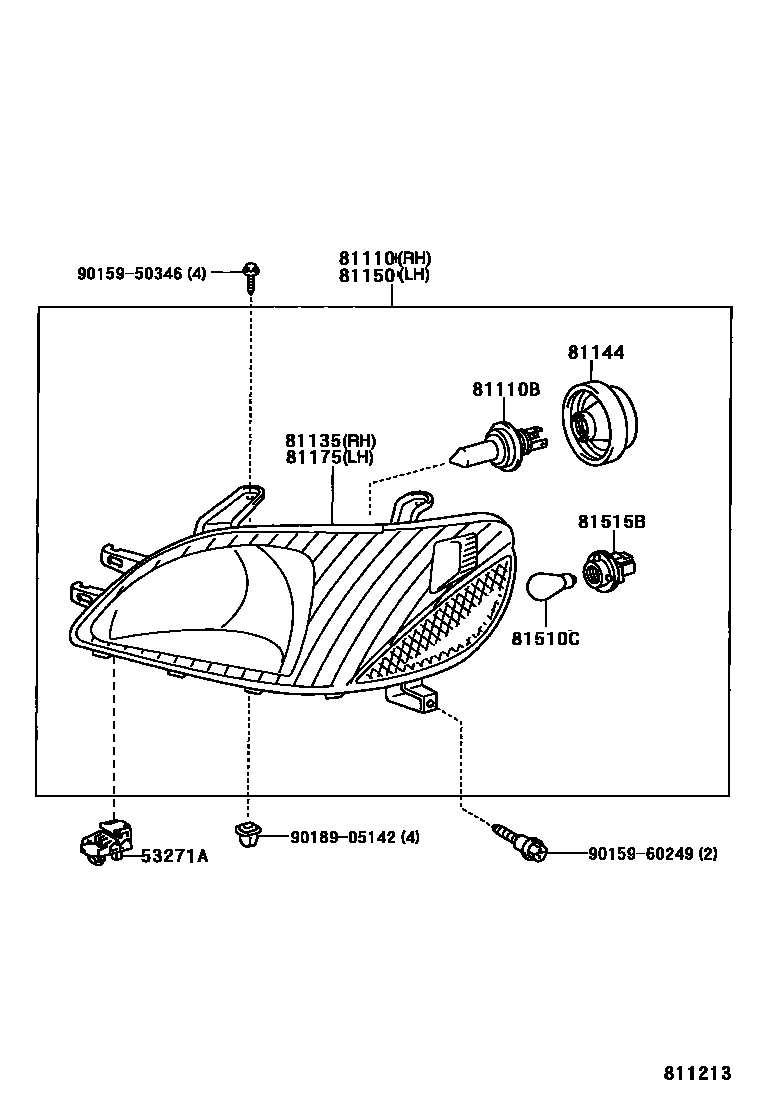

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060iNCP12199908-200211

main53271-52010iNCP12200211

81110HEADLAMP ASSY, RH

main81110-52190iNCP12199908-200208

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055iNCP12200106-200208

12V 60/55W,HALOGEN

sub90981-13058

main90981-13058iNCP12199908-200602

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-52190iNCP12199908-200208

main81130-52300iNCP12200208

81144COVER, HEADLAMP, NO.1

main90075-65002iNCP12199908-200208

81150HEADLAMP ASSY, LH

main81150-52190iNCP12199908-200208

81175UNIT ASSY, HEADLAMP, LH

main81170-52190iNCP12199908-200208

main81170-52300iNCP12200208

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12024iNCP12200106-200208

12V 27/8W

main90981-15008iNCP12199908-200106

12V 27/8W

sub90981-12024

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99106iNCP12199908-200208

9015950346

main90159-50346

9015960249

main90159-60249

9018905142

main90189-05142

12 parts on this diagram · 2 diagrams in section
