ARMREST & VISOR

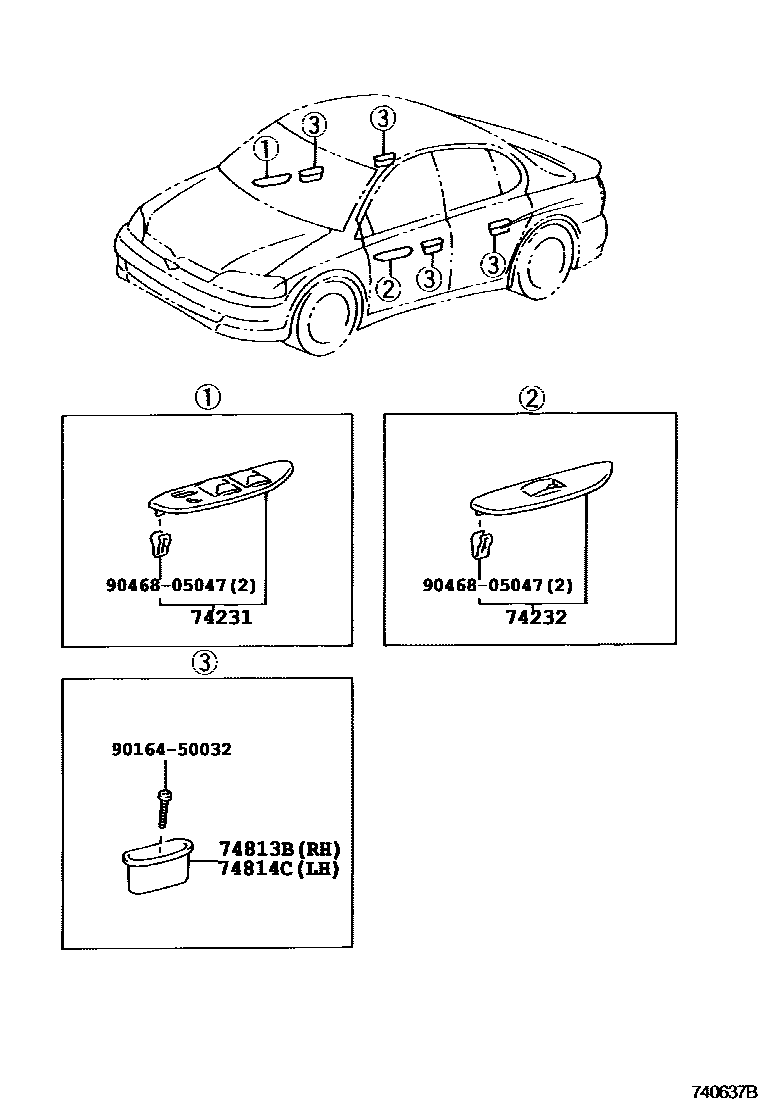

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52030i¥2,030199908-200208

PUERTORICO SPEC

main74231-52030-B0i200212-200511

PUERTORICO SPEC,DK.GRAY,TRIM1#

sub74231-52030¥2,030

main74231-52030-B1i200208-200212

PUERTORICO SPEC,SHADOW GRAY,TRIM1#

sub74231-52030¥2,030

main74231-52030-E0i200208-200511

PUERTORICO SPEC,SANDAL WOOD,TRIM4#

sub74231-52030¥2,030

main74231-52070i¥1,280199908-200511

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52010i¥1,810199908-200208

main74232-52010-B0i200208-200212

SHADOW GRAY,TRIM1#

sub74232-52010¥1,810

main74232-52010-B2i200212-200511

DK.GRAY,TRIM1#

sub74232-52010¥1,810

main74232-52010-E0i200208-200511

SANDAL WOOD,TRIM4#

sub74232-52010¥1,810

main74232-52020i¥1,810199908-200208

main74232-52020-B0i200208-200212

SHADOW GRAY,TRIM19

sub74232-52020¥1,810

main74232-52020-C0i200208-200212

SHADOW GRAY,TRIM1#

sub74232-52020¥1,810

main74232-52020-E0i200208-200212

SANDAL WOOD,TRIM4#

sub74232-52020¥1,810

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-B0i199908-200208

SHADOW GRAY,TRIM1#

sub74813-52010¥1,010

main74813-52010-B1i199908-200208

AMETHYST,TRIM9#

sub74813-52010¥1,010

main74813-52010-B2i200208-200511

DK.GRAY,TRIM1#

sub74813-52010¥1,010

main74813-52010-E0i200208-200511

SANDAL WOOD,TRIM4#

sub74813-52010¥1,010

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-B0i199908-200208

SHADOW GRAY,TRIM1#

sub74814-52010¥1,010

main74814-52010-B1i199908-200208

AMETHYST,TRIM9#

sub74814-52010¥1,010

main74814-52010-B2i200208-200511

DK.GRAY,TRIM1#

sub74814-52010¥1,010

main74814-52010-E0i200208-200511

SANDAL WOOD,TRIM4#

sub74814-52010¥1,010

9016450032

main90164-50032¥90

9046805047

main90468-05047¥90

6 parts on this diagram · 2 diagrams in section
