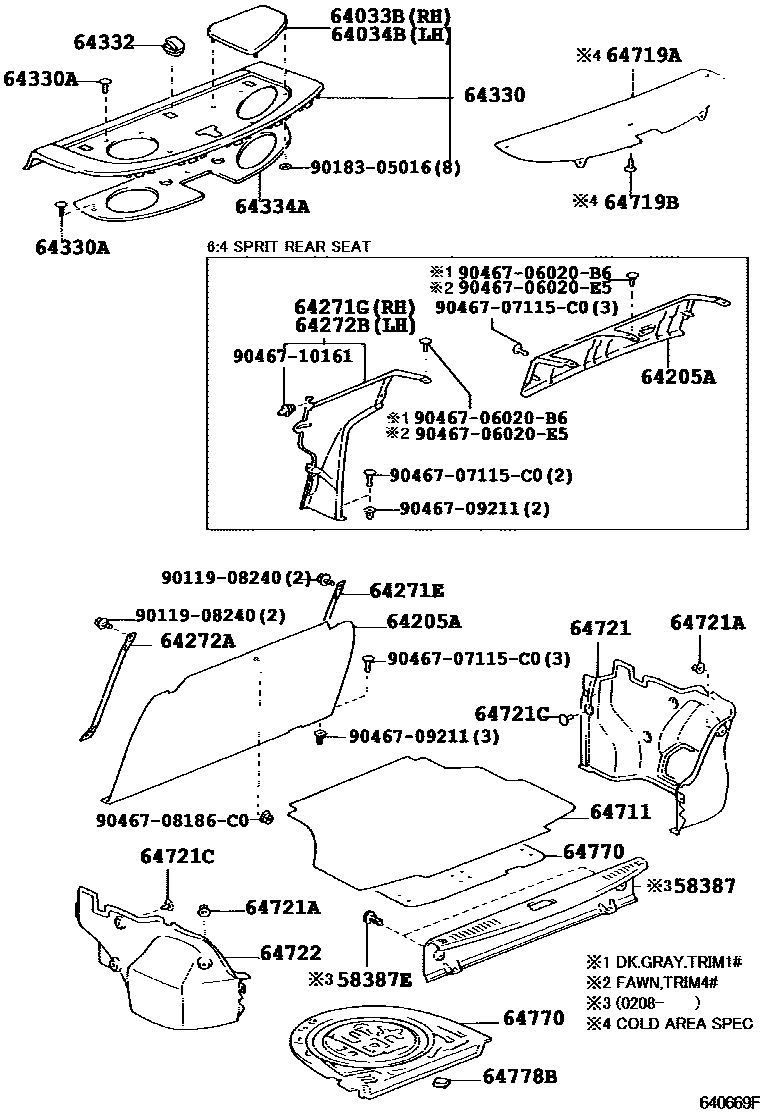

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64033BGRILLE SUB-ASSY, REAR SPEAKER, RH
64034BGRILLE SUB-ASSY, REAR SPEAKER, LH
64205ACOVER SUB-ASSY, ROOM PARTITION
W(FIXED TYPE REAR SEAT)
64271EPANEL, ROOM PARTITION
64271GBOARD, ROOM PARTITION, RH
64272APANEL, ROOM PARTITION, LH
64272BBOARD, ROOM PARTITION, LH
64330PANEL ASSY, PACKAGE TRAY TRIM
W(SPEAKER),BLACK,TRIM1#,9#
W(SPEAKER),BLACK,TRIM1#,9#
BLACK,TRIM1#,9#
BLACK,TRIM1#,9#
W(HIGH MOUNT STOP LAMP & SPEAKER),BLACK,TRIM1#
W(HIGH MOUNT STOP LAMP & SPEAKER),FAWN,TRIM4#
W(SPEAKER),BLACK,TRIM1#
W(SPEAKER),FAWN,TRIM4#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64332COVER, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#,9#
64334APAD, PACKAGE TRAY TRIM
W(SPEAKER)
64711MAT, LUGGAGE COMPARTMENT FLOOR
W(FIXED TYPE REAR SEAT ),BLACK,TRIM1#,9#
W(FIXED TYPE REAR SEAT ),BLACK,TRIM1#,4#
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
W(6:4 SPRIT REAR SEAT),BLACK,TRIM1#,9#
BLACK,TRIM1#,4#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,9#
BLACK,TRIM1#,4#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
BLACK,TRIM1#,9#
BLACK,TRIM1#,4#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
BLACK,TRIM1#,9#
BLACK,TRIM1#,4#
64770COVER ASSY, SPARE WHEEL
W(TIRE SIZE T125/70D16)
W(TIRE SIZE T115/70D14)
64778BPROTECTOR, SPARE WHEEL
9011908240
main90119-08240
9018305016
main90183-05016
9046706020B6
main90467-06020B6
9046706020E5
main90467-06020E5
9046707115C0
main90467-07115C0
9046708186C0
main90467-08186C0
9046709211
main90467-09211
9046710161
main90467-10161
30 parts on this diagram · 1 diagram in section
