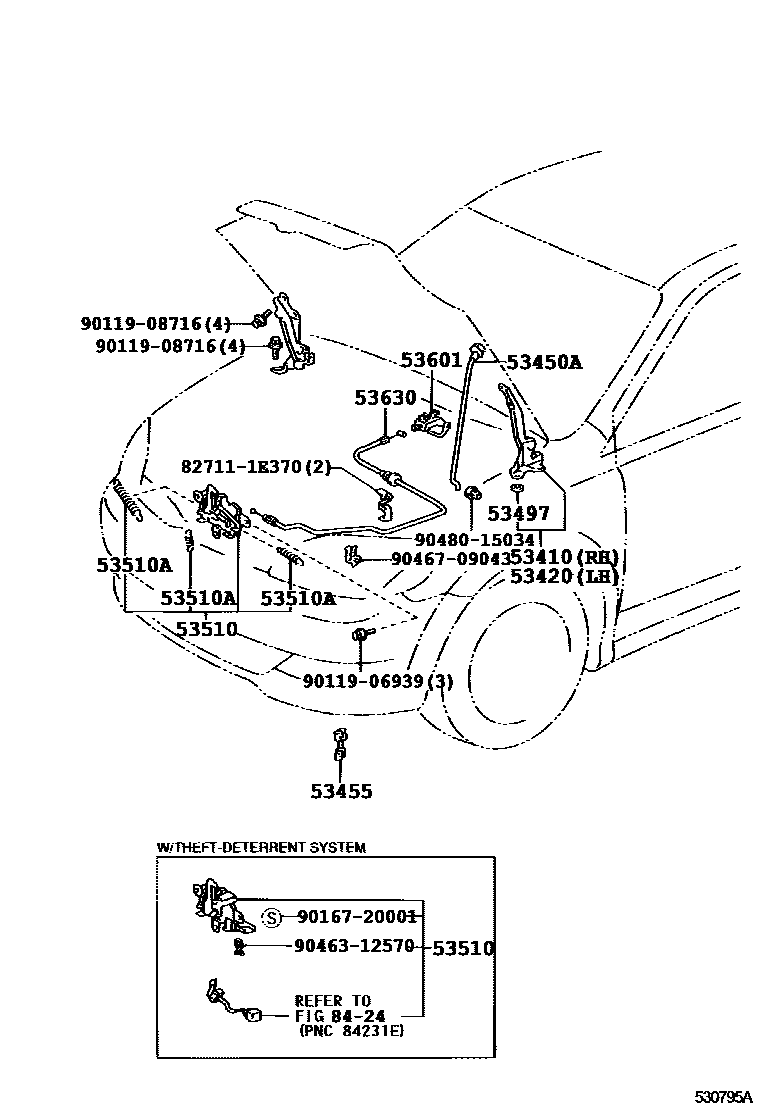

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52010iNCP12199908-200511

53420HINGE ASSY, HOOD, LH

main53420-52010iNCP12199908-200511

53450ASUPPORT ASSY, HOOD, LH

main53440-52010iNCP12199908-200208

sub53440-52100

main53440-52080iNCP12200208

53455CLAMP, HOOD SUPPORT ROD

main53455-52010iNCP12199908-200208

53497PAD, HOOD HINGE, NO.1

main53497-10020iNCP12199908-200208

T=1.5

main53497-12050iNCP12199908-200208

T=1.0

sub53497-42010

main53497-42010iNCP12200208

T=0.5

53510LOCK ASSY, HOOD

main53510-52060iNCP12199908-200208

sub53510-52130

main53510-52070iNCP12..USA199908-200208

W(THEFT-DETERRENT SYSTEM)

main53510-52130iNCP12200208-200305

main53510-52140iNCP12..USA200208

W(THEFT-DETERRENT SYSTEM)

main53510-52180iNCP12..USA200305

COLD SPEC

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNCP12..USA199908-200208

WD=0.9,CW=21

main90506-12063iNCP12199908-200208

WD=1.2,CW=8.5

main90506-16077iNCP12200003-200208

WD=1.6,CW=12

main90506-18067iNCP12199908-200003

WD=1.8,CW=13

main90905-06005iNCP12199908-200208

WD=0.9,CW=21.25

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B0iNCP12199908-200212

BLUE GRAY,TRIM1#

sub53601-52010

main53601-52010-B1iNCP12199908-200208

MD.CHARCOAL,TRIM9#

sub53601-52010

main53601-52010-B6iNCP12200212-200511

MD.GRAY,TRIM1#

sub53601-52010

main53601-52010-E0iNCP12200208-200511

FAWN,TRIM4#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52010iNCP12199908-200208

main53630-52090iNCP12200208

8424

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9011908716

main90119-08716

9016720001

main90167-20001

9046312570

main90463-12570

9046709043

main90467-09043

9048015034

main90480-15034

17 parts on this diagram · 1 diagram in section
