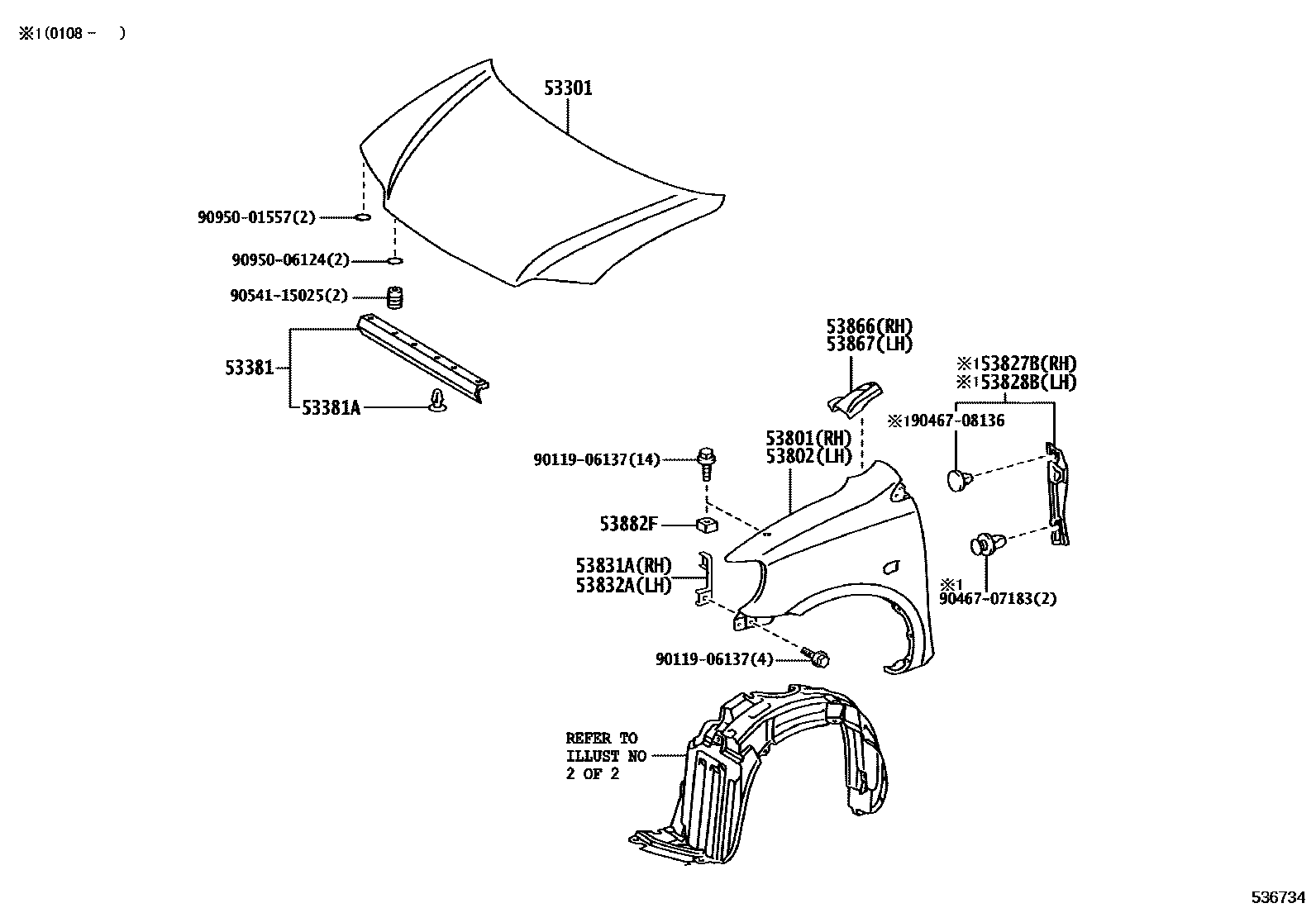

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-52060iNCP12199908-200208

main53301-52150iNCP12200208

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP12199908-200208

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP12199908-200208

53801FENDER SUB-ASSY, FRONT RH

main53801-52030iNCP12200208

main53801-52040iNCP12200208

W(SIDE MUDGUARD)

main53811-52050iNCP12199908-200208

main53811-52070iNCP12199908-200208

W(SIDE MUDGUARD)

53802FENDER SUB-ASSY, FRONT LH

main53802-52030iNCP12200208

main53802-52040iNCP12200208

W(SIDE MUDGUARD)

main53812-52040iNCP12199908-200208

main53812-52070iNCP12199908-200208

W(SIDE MUDGUARD)

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-52041iNCP12200108-200208

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52041iNCP12200108-200208

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-52010iNCP12199908-200208

main53831-52040iNCP12200208-200511

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-52010iNCP12199908-200208

main53832-52040iNCP12200208-200511

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52010iNCP12199908-200208

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52010iNCP12199908-200208

53882FSEAL, FRONT FENDER

main53882-16030iNCP12199908-200511

9011906137

main90119-06137

9046707183

main90467-07183

9046708136

main90467-08136

9054115025

main90541-15025

9095001557

main90950-01557

9095006124

main90950-06124

18 parts on this diagram · 2 diagrams in section
