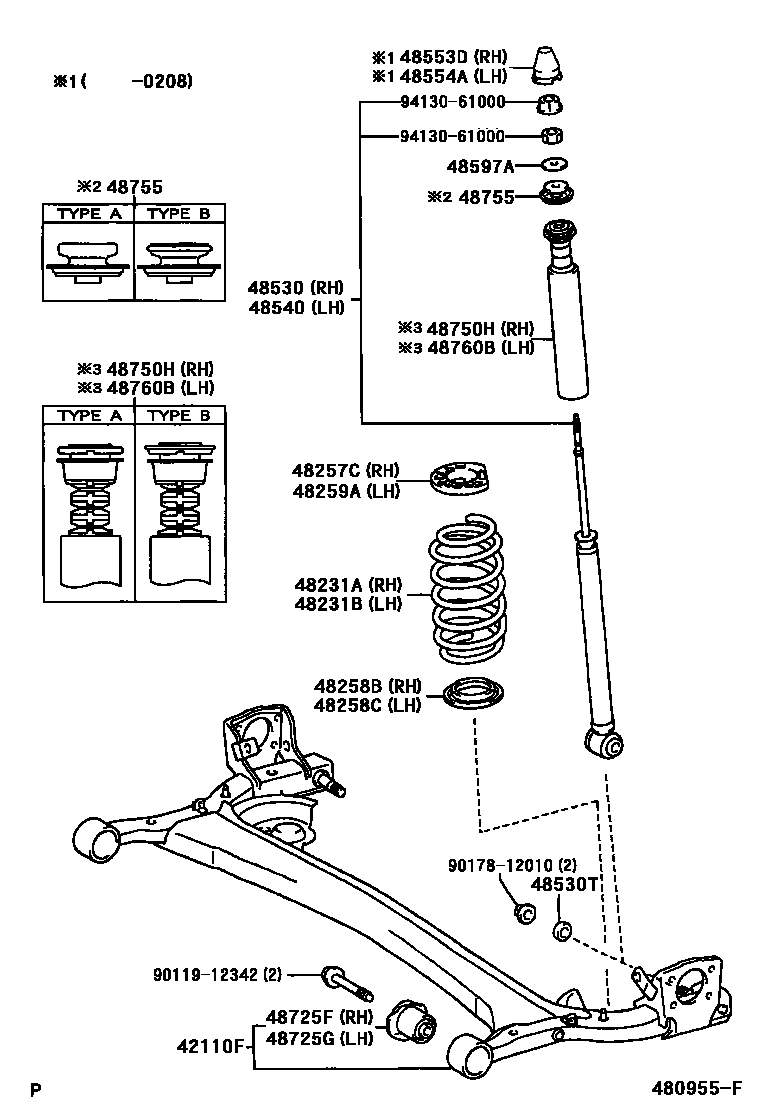

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52072
MARK 48530-52880
MARK 48530-52880
48530TSPACER(FOR REAR SHOCK ABSORBER)
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48755SUPPORT, REAR SUSPENSION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48760BSUPPORT ASSY REAR SUSPENSION, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
9011912342
main90119-12342
9017812010
main90178-12010
9413061000
main94130-61000
21 parts on this diagram · 1 diagram in section
