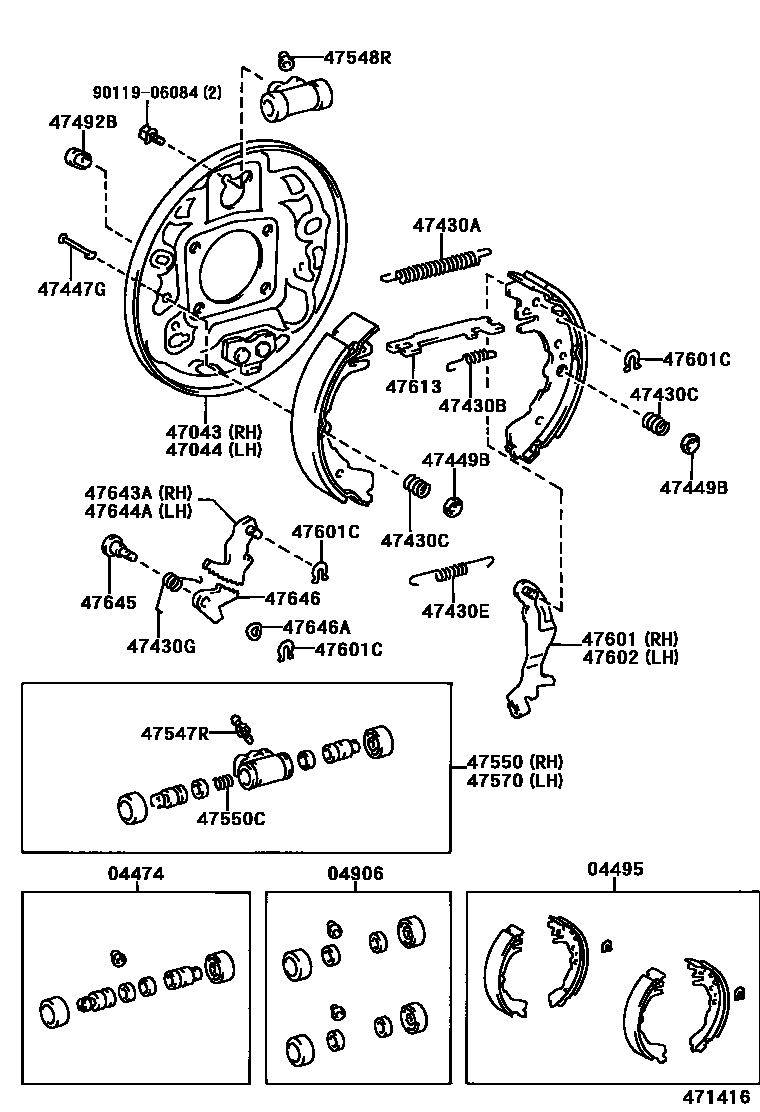

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iNCP12200212-200311

04495SHOE KIT, REAR BRAKE

main04495-52010iNCP12199908-200208

MARK NBK LN521

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP12199908-200208

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52020iNCP12199908-200208

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52020iNCP12199908-200208

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18081×2iNCP12199908-200208

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14075iNCP12199908-200208

RH

main90506-14076iNCP12199908-200208

LH

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-16166×4iNCP12199908-200208

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16068×2iNCP12199908-200208

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90949-03085iNCP12199908-200208

RH

main90949-03086iNCP12199908-200208

LH

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10020×4iNCP12199908-200208

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011×4iNCP12199908-200208

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-20020×2iNCP12199908-200208

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNCP12200208

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP12199908-200208

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iNCP12199908-200208

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014×2iNCP12200103-200208

main90501-07006×2iNCP12199908-200103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iNCP12199908-200208

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52010iNCP12199908-200208

47601CWASHER, C(FOR REAR BRAKE)

main90213-04001×6iNCP12199908-200208

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52010iNCP12199908-200208

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-52010×2iNCP12199908-200208

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-52010iNCP12199908-200208

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-52010iNCP12199908-200208

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-52010×2iNCP12199908-200208

47646LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47646-52010iNCP12199908-200208

RH

main47646-52020iNCP12200208

LH

47646AWASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH)

main90206-06008×2iNCP12200208

9011906084

main90119-06084

28 parts on this diagram · 2 diagrams in section
