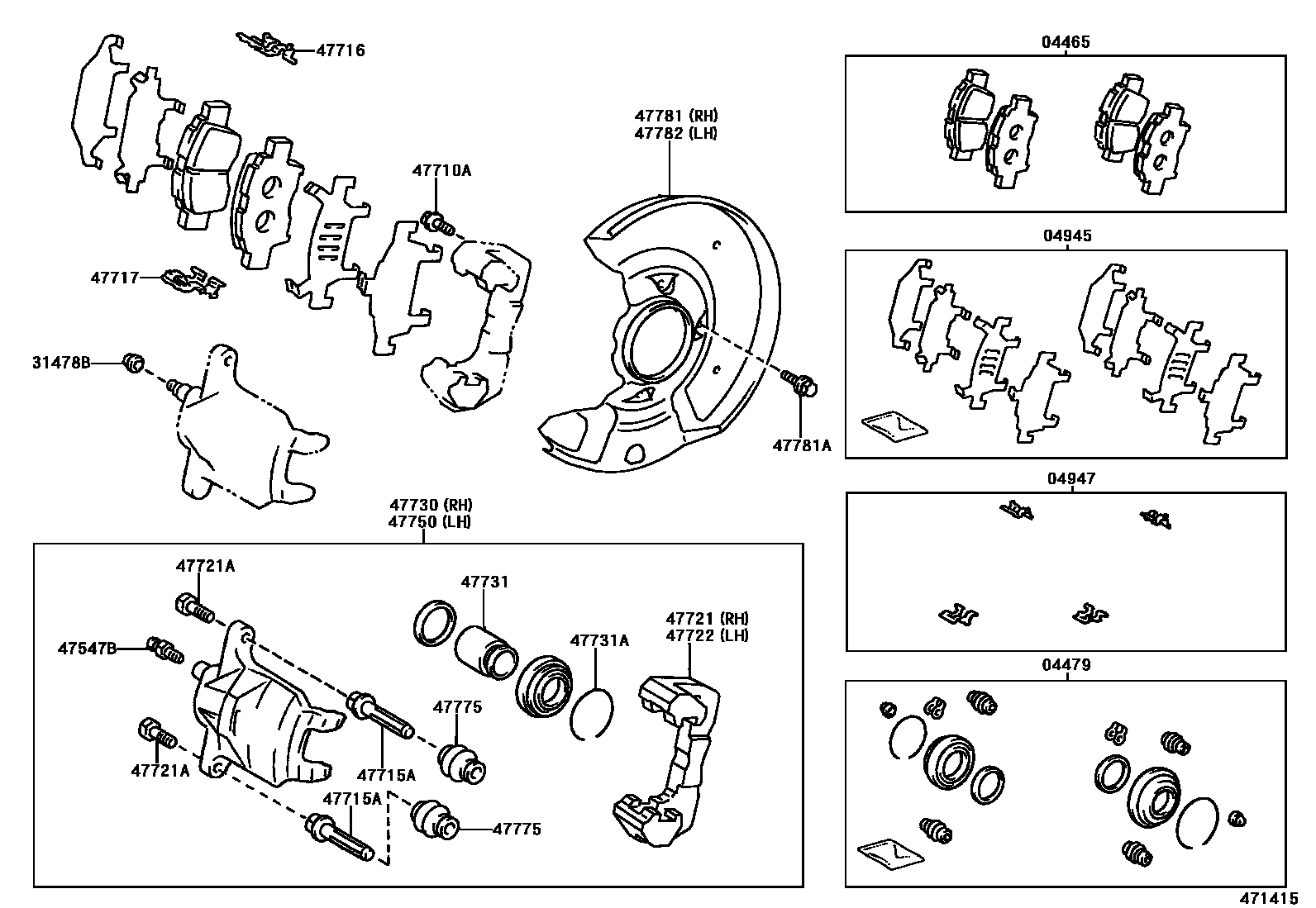

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-17100iNCP12200106-200112

MARK NBK PN540H

sub04465-17101

main04465-17140iNCP12200112-200602

MARK NBK PN540H

main04465-52031iNCP12199908-200008

sub04465-52032

main04465-52060iNCP12200008-200106

MARK NBK PN529A

sub04465-17100

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52020iNCP12199908-200208

sub04479-52021

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP12200008-200602

main04945-52010iNCP12199908-200008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52010iNCP12200008-200602

main04947-52020iNCP12199908-200008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNCP12199908-200208

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNCP12199908-200208

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314iNCP12199908-200511

*12-1.25PX27.5-23.8

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010iNCP12199908-200208

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52010iNCP12199908-200008

main47716-52020iNCP12200008-200208

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52010iNCP12199908-200008

main47717-52020iNCP12200008-200208

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52010iNCP12199908-200008

main47721-52020iNCP12200008-200208

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNCP12199908-200208

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52010iNCP12199908-200008

main47722-52020iNCP12200008-200208

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52010iNCP12199908-200008

main47730-52020iNCP12200008-200208

47731PISTON, FRONT DISC BRAKE

main47731-52010iNCP12199908-200208

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iNCP12199908-200208

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52010iNCP12199908-200008

main47750-52020iNCP12200008-200208

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010iNCP12199908-200208

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52010iNCP12199908-200008

main47781-52020iNCP12200008-200511

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iNCP12199908-200602

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52010iNCP12199908-200008

main47782-52020iNCP12200008-200511

21 parts on this diagram · 1 diagram in section
