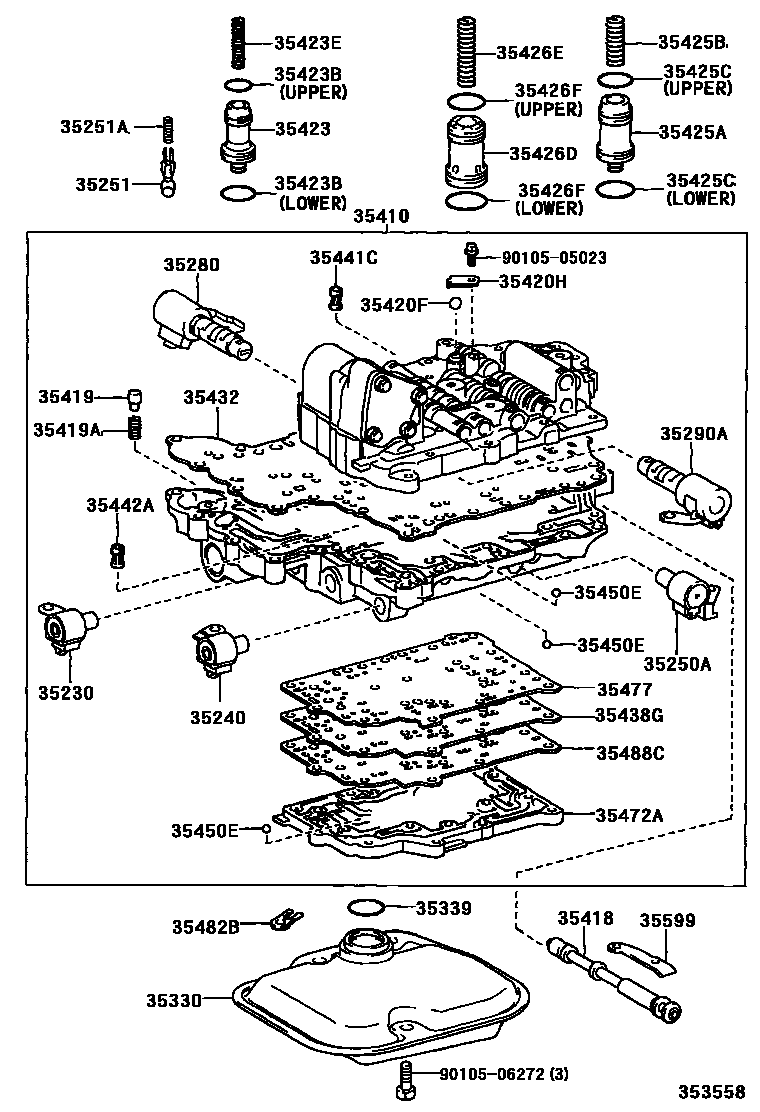

VALVE BODY & OIL STRAINER (ATM)
35250ASOLENOID ASSY, TRANSMISSION, NO.3
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35290ASOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
sub35330-0W020
35339GASKET, OIL STRAINER
35418VALVE, MANUAL
35419VALVE, CHECK, NO.1
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420FBALL, CHECK, NO.1
35420HCOVER, CHECK BALL
35423PISTON, B-2 ACCUMULATOR
MARK=52AB2
35423BRING, O (FOR B-2 ACCUMULATOR PISTON)
LOWER
UPPER
35423ESPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)
35425APISTON, C-2 ACCUMULATOR
MARK=52AC2
35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)
35425CRING, O (FOR C-2 ACCUMULATOR PISTON)
LOWER
UPPER
35426DPISTON, C-3 ACCUMULATOR
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
LOWER
UPPER
35438GPLATE, VALVE BODY, NO.2
35441CSTRAINER, SOLENOID OIL
35442ASTRAINER, SOLENOID OIL, NO.2
sub35442-21011
35450EBALL (FOR UPPER VALVE BODY)
OD=5.535,RUBBER
35472ACOVER, LOWER VALVE BODY
35477GASKET, VALVE BODY COVER
35482BCLAMP, TEMPERATURE SENSOR
35488CGASKET, VALVE BODY COVER, NO.2
35599COVER, MANUAL DETENT SPRING
9010505023
main90105-05023
9010506272
main90105-06272
36 parts on this diagram · 5 diagrams in section
