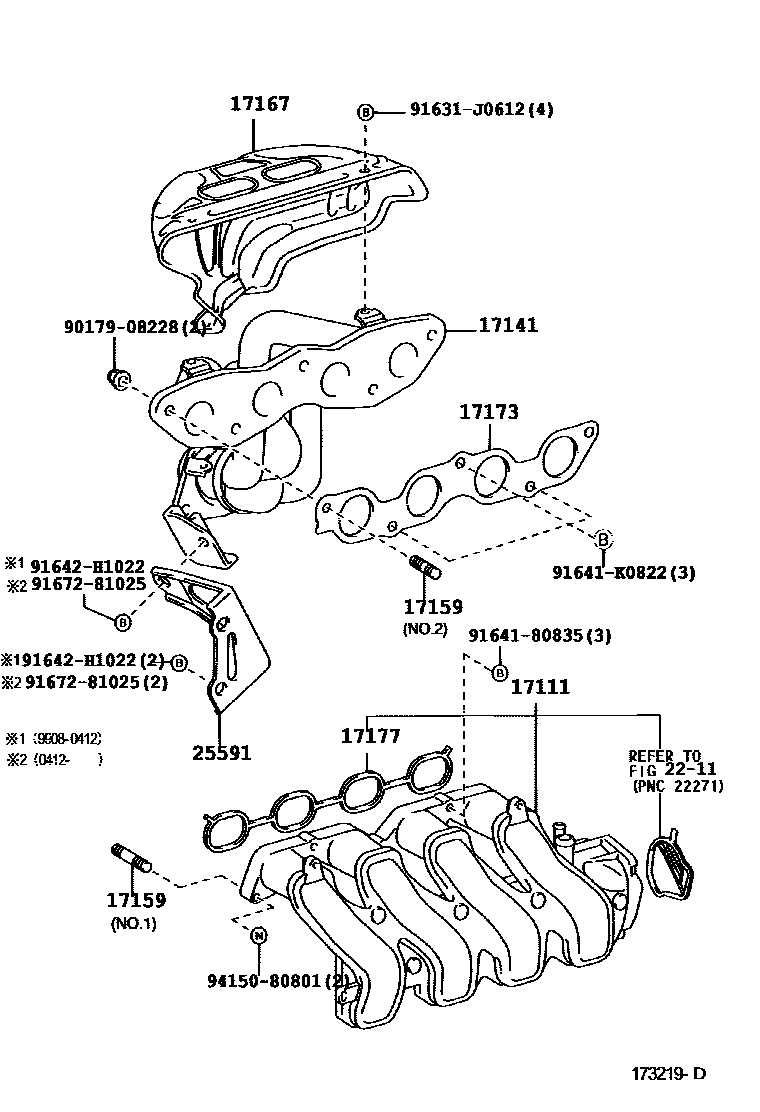

MANIFOLD
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.1
NO.2
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-21030
2211
25591BRACKET, MANIFOLD SUPPORT
9017908228
main90179-08228
91631J0612
main91631-J0612
9164180835
main91641-80835
91641K0822
main91641-K0822
91642H1022
main91642-H1022
9167281025
main91672-81025
9415080801
main94150-80801
15 parts on this diagram · 1 diagram in section
