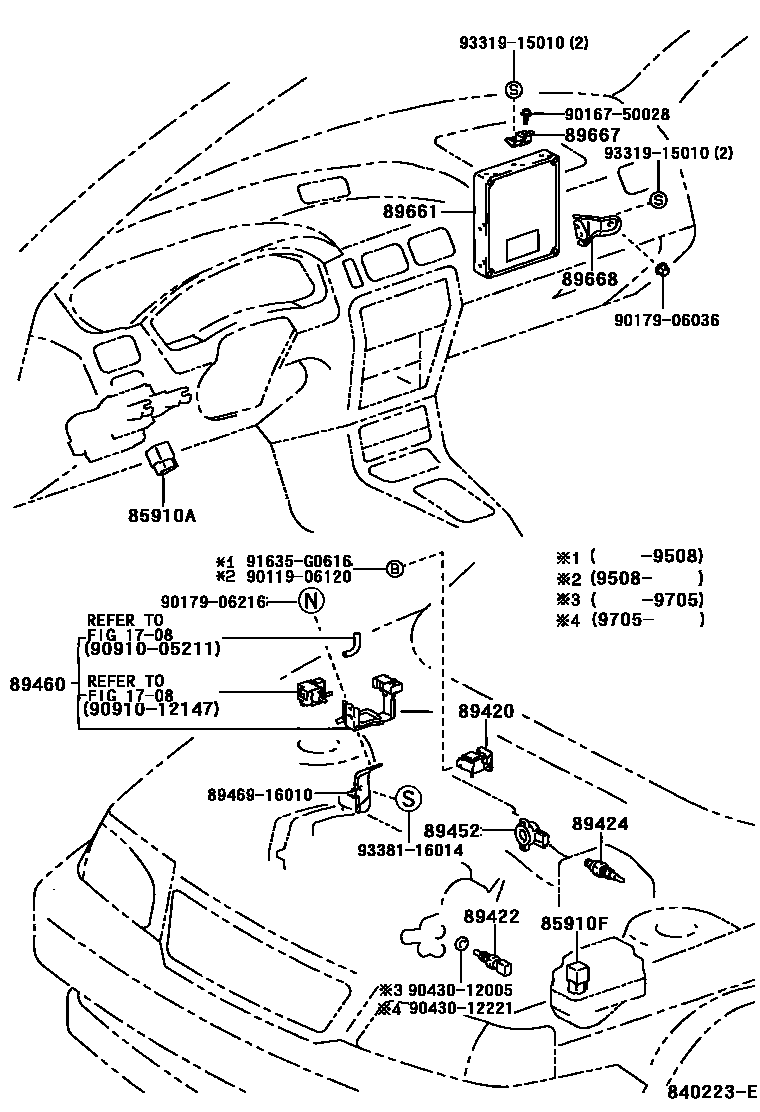

ELECTRONIC FUEL INJECTION SYSTEM

1708

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iEL53199409

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iEL53199409

89420SENSOR ASSY, VACUUM

main89420-0W020iEL53199604-199712

main89420-16060iEL53..3FC..STD;EL53..4F,4FC,5F199604-199712

NIPPON DENSO

main89420-16060iEL53199409-199604

main89420-16060iEL53..3FC199608-199712

DENSO

main89420-16090iEL53199712

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEL53199705

DENSO

main89422-20010iEL53199409-199705

main89422-22030iEL53199705

SAAMOSTA

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL53199409

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEL53199702-199808

sub89452-20130

main89452-20130iEL53199608-199702

main89452-22090iEL53199409-199608

89460SENSOR ASSY, VAPOR PRESSURE

main89460-16010iEL53199608

89661COMPUTER, ENGINE CONTROL

main89661-16340iEL53..MTM199409-199412

sub89661-16341

main89661-16341iEL53..MTM199412-199508

sub89661-16342

main89661-16342iEL53..MTM199508-199608

main89661-16350iEL53..3FC199409-199412

sub89661-16351

main89661-16351iEL53..3FC199412-199508

sub89661-16352

main89661-16352iEL53..3FC199508-199608

main89661-16360iEL53..4FC199409-199412

sub89661-16361

main89661-16361iEL53..4FC199412-199508

sub89661-16362

main89661-16362iEL53..4FC199508-199608

main89661-16530iEL53199608-199709

main89661-16531iEL53199709-199712

main89661-16620iEL53..5F199712-199803

sub89661-16621

main89661-16621iEL53..5F199803-199808

main89661-16622iEL53..5F199808

main89661-16630iEL53..ATM199712-199803

sub89661-16631

main89661-16631iEL53..ATM199803-199808

main89661-16632iEL53..ATM199808

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16060iEL53199409

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16050iEL53199409-199608

main89668-16070iEL53199712

main89668-16080iEL53199608-199712

8946916010BRACKET, ALTITUDE COMPENSATION SWITCH

main89469-16010

9011906120

main90119-06120

9016750028

main90167-50028

9017906036

main90179-06036

9017906216

main90179-06216

9043012005

main90430-12005

9043012221

main90430-12221

91635G0616

main91635-G0616

9331915010

main93319-15010

9338116014

main93381-16014

21 parts on this diagram · 1 diagram in section
