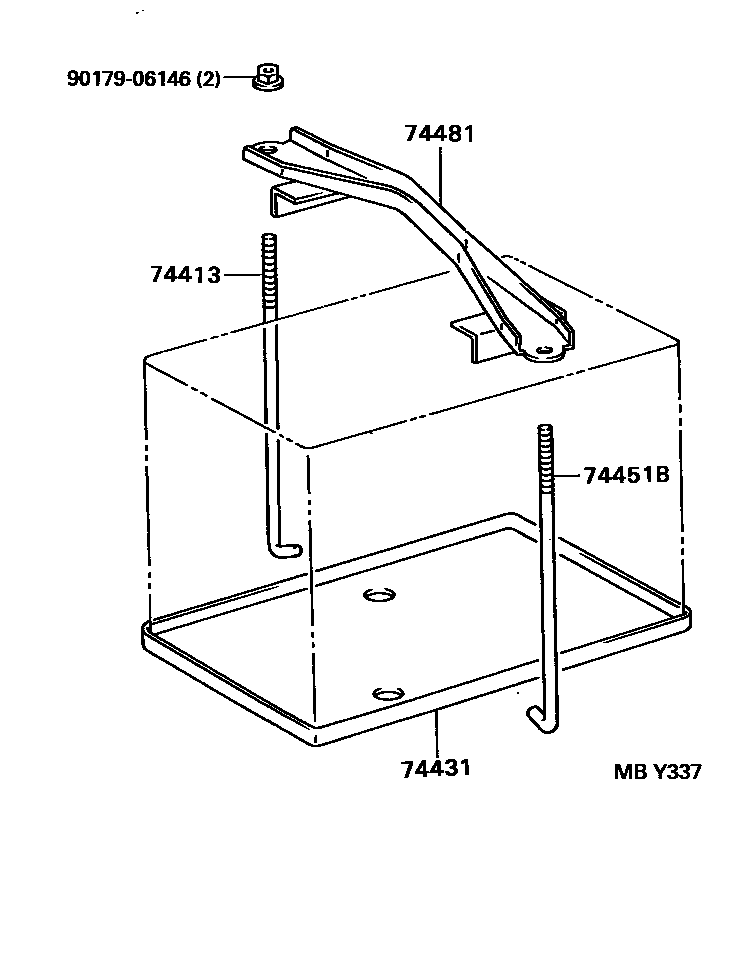

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-16030iEL53199409

74431TRAY, BATTERY

main74431-12010iEL53199409

sub74431-35030

main74431-20040iEL53..USA199409-199608

W(BATTERY=32C24R)

74451BBOLT, BATTERY CLAMP

main74451-16040iEL53199409

74481CLAMP, BATTERY HOLD DOWN

main74404-16110iEL53199409-199712

main74404-16120iEL53..USA199409-199712

W(BATTERY=32C24R)

main74404-16180iEL53199712

main74404-16190iEL53..5F..USA199712

W(BATTERY=32C24R)

9017906146

main90179-06146

5 parts on this diagram · 1 diagram in section
