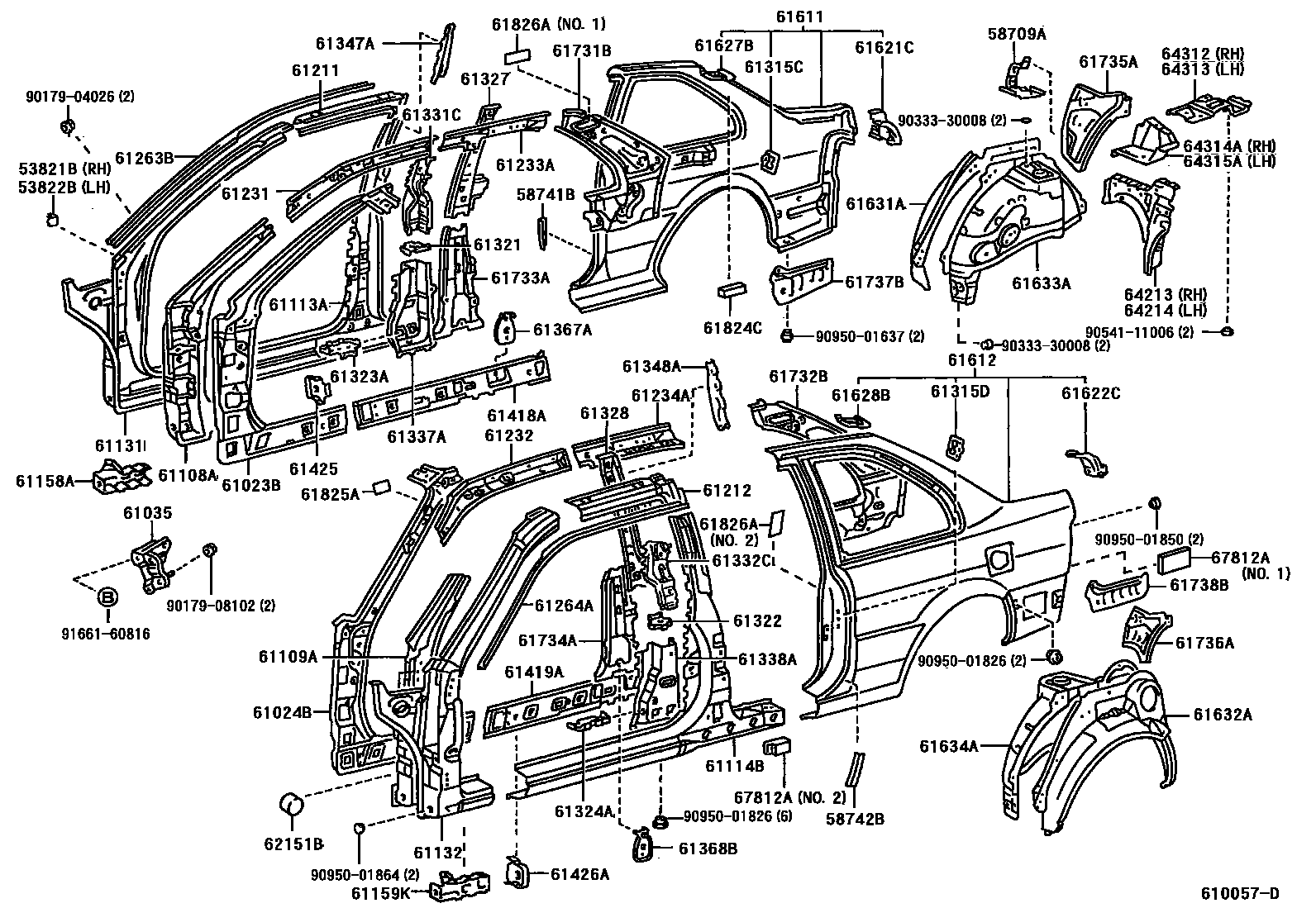

SIDE MEMBER

0001 1 0002 1

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010iEL53..4DS199409-199511

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010iEL53199511

58709ACARRIER SUB-ASSY, JACK

main58709-16030iEL53199409

58741BPROTECTOR, QUARTER PANEL, RH

main58741-12040iEL53..4DS199409

main58741-12090iEL53..2DS199409

58742BPROTECTOR, QUARTER PANEL, LH

main58742-12040iEL53..4DS199409

main58742-12080iEL53..2DS199409

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-16100iEL53199409-199712

sub61023-16170

main61023-16170iEL53199712

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-16170iEL53199409-199712

sub61024-16200

main61024-16200iEL53199712

61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH

main61035-16030iEL53199409

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-16060iEL53..4DS199409-199712

sub61108-16902

main61108-16070iEL53..2DS199409-199712

sub61108-16903

main61108-16902iEL53..4DS199712

sub61108-16903

main61108-16903iEL53..2DS199712

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-16060iEL53..4DS199409-199712

sub61109-16902

main61109-16070iEL53..2DS199409-199712

sub61109-16903

main61109-16902iEL53..4DS199712

sub61109-16903

main61109-16903iEL53..2DS199712

61113APANEL, SIDE, OUTER NO.2 RH

main61113-16070iEL53..4DS199409

main61113-16080iEL53..2DS199409

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-16070iEL53..4DS199409

main61114-16080iEL53..2DS199409

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-16190iEL53199409

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-16220iEL53199409

61158AEXTENSION, FRONT PILLER, LOWER RH

main61158-16010iEL53199712

61159KEXTENSION, FRONT PILLER, LOWER LH

main61159-16020iEL53199712

61211RAIL, ROOF SIDE, OUTER RH

main61211-16160iEL53..4DS199409

main61211-16170iEL53..2DS199409

61212RAIL, ROOF SIDE, OUTER LH

main61212-16160iEL53..4DS199409

main61212-16170iEL53..2DS199409

61231RAIL, ROOF SIDE, INNER RH

main61231-16230iEL53..4DS199409-199712

main61231-16240iEL53..2DS199409-199712

main61231-16280iEL53..4DS199712

main61231-16300iEL53..2DS199712

61232RAIL, ROOF SIDE, INNER LH

main61232-16230iEL53..4DS199409-199712

main61232-16240iEL53..2DS199409-199712

main61232-16280iEL53..4DS199712

main61232-16300iEL53..2DS199712

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61233-16070iEL53..2DS199409-199712

main61233-16080iEL53..4DS199409-199712

main61233-16090iEL53..4DS199712

main61233-16120iEL53..2DS199712

61234ARAIL, ROOF SIDE, INNER NO.2 LH

main61234-16070iEL53..2DS199409-199712

main61234-16080iEL53..4DS199409-199712

main61234-16090iEL53..4DS199712

main61234-16120iEL53..2DS199712

61263BCHANNEL, ROOF DRIP SIDE, FRONT RH

main61263-16090iEL53..2DS199409

main61263-16100iEL53..4DS199409

61264ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61264-16090iEL53..2DS199409

main61264-16100iEL53..4DS199409

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-22020iEL53199409

61315DRETAINER, DOOR LOCK STRIKER, LH

main61315-22020iEL53199409

61321REINFORCEMENT, CENTER BODY PILLAR, UPPER RH

main61321-16030iEL53..2DS199409

61322REINFORCEMENT, CENTER BODY PILLAR, UPPER LH

main61322-16040iEL53..2DS199409

61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH

main61323-16050iEL53..2DS199409

61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH

main61323-16050iEL53..2DS199409

61327REINFORCEMENT, CENTER BODY PILLAR, OUTER RH

main61327-16130iEL53..2DS199409

61328REINFORCEMENT, CENTER BODY PILLAR, OUTER LH

main61328-16130iEL53..2DS199409

61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH

main61331-16010iEL53..2DS199409

61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH

main61332-16010iEL53..2DS199409

61337AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61305-16060iEL53..2DS199409

61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61306-16060iEL53..2DS199409

61347AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH

main61347-16100iEL53..4DS199409-199907

main61347-16110iEL53..2DS199409-199907

61348AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH

main61348-16090iEL53..4DS199409-199907

main61348-16100iEL53..2DS199409-199907

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-16010iEL53..4DS199409-199712

main61367-16020iEL53..4DS199712

main61367-16030iEL53..2DS199409-199712

main61367-16040iEL53..2DS199712

61368BREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER LH

main61368-16010iEL53..4DS199409-199712

main61368-16020iEL53..4DS199712

main61368-16030iEL53..2DS199409-199712

main61368-16040iEL53..2DS199712

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-16040iEL53..2DS199409

main61418-16050iEL53..4DS199409

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-16040iEL53..2DS199409

main61419-16050iEL53..4DS199409

61425REINFORCEMENT, ROCKER PANEL, NO.4 RH

main61425-16010iEL53199409-199608

61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH

main61426-16010iEL53199409-199608

61611PANEL, QUARTER, RH

main61601-1G070iEL53..4DS199409

main61601-1G080iEL53..2DS199409

61612PANEL, QUARTER, LH

main61602-1G410iEL53..4DS199409

main61602-1G420iEL53..2DS199409

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-16100iEL53199409

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-16100iEL53199409

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-16050iEL53199409

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-16050iEL53199409

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-16170iEL53199409

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-16170iEL53199409

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-16240iEL53..3FC,4FC,5F199409-199608

sub61607-16241

sub71303-16070

sub90119-08A21

main61607-16241iEL53..DX199504-199608

W(REAR SPLIT SEAT)

main61607-16440iEL53199608

main61607-16904iEL53..4F199409-199608

sub61607-16240

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-16350iEL53..3FC,4FC,5F199409-199608

sub61608-16351

sub71304-16050

sub90119-08A21

main61608-16351iEL53..DX199508-199608

W(REAR SPLIT SEAT)

main61608-16460iEL53199608

main61608-16904iEL53..4F199409-199608

sub61608-16350

61731BPANEL, ROOF SIDE, INNER RH

main61731-16220iEL53..4DS199409

main61731-16230iEL53..2DS199409

61732BPANEL, ROOF SIDE, INNER LH

main61732-16220iEL53..4DS199409

main61732-16230iEL53..2DS199409

61733APANEL, ROOF SIDE, INNER FRONT RH

main61707-16010iEL53..2DS199409-199712

sub61707-16020

main61707-16020iEL53..2DS199712

61734APANEL, ROOF SIDE, INNER FRONT LH

main61708-16010iEL53..2DS199409-199712

sub61708-16020

main61708-16020iEL53..2DS199712

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-16120iEL53199409

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-16120iEL53199409

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-16090iEL53199409

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61738-16090iEL53199409

61824CPAD, NOISE SHUTTER, NO.1

main61824-16010iEL53199409-199712

61825APLATE, NOISE CONTROL, NO.2

main61825-12010iEL53199409-199608

main61825-16030iEL53199608-199712

61826APLATE, NOISE CONTROL, NO.3

main61826-16020iEL53..2DS199712

NO.1

main61826-16020iEL53199409-199712

main61826-16030iEL53..2DS199712

NO.2

62151BPAD, COWL SIDE SILENCER

main62151-12100iEL53199409-199608

main62151-12100iEL53199608

COWL PANEL SIDE

main62151-12130iEL53199608

ROCKKER PANEL REAR

64213EXTENSION, PACKAGE TRAY STRAINER, RH

main64213-16060iEL53199409

64214EXTENSION, PACKAGE TRAY STRAINER, LH

main64214-16060iEL53199409

64312BRACKET, PACKAGE TRAY, RH

main64312-16050iEL53199409

64313BRACKET, PACKAGE TRAY, LH

main64313-16050iEL53199409

64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-16080iEL53199409

64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-16080iEL53199409

67812APAD, QUARTER PANEL SILENCER

main67812-10020iEL53..4DS199712

NO.1

main67812-16070iEL53199608-199712

main67812-16070iEL53..2DS199712

NO.2

9017904026

main90179-04026

9017908102

main90179-08102

9033330008

main90333-30008

9054111006

main90541-11006

9095001637

main90950-01637

9095001826

main90950-01826

9095001850

main90950-01850

9095001864

main90950-01864

9166160816

main91661-60816

82 parts on this diagram · 2 diagrams in section
