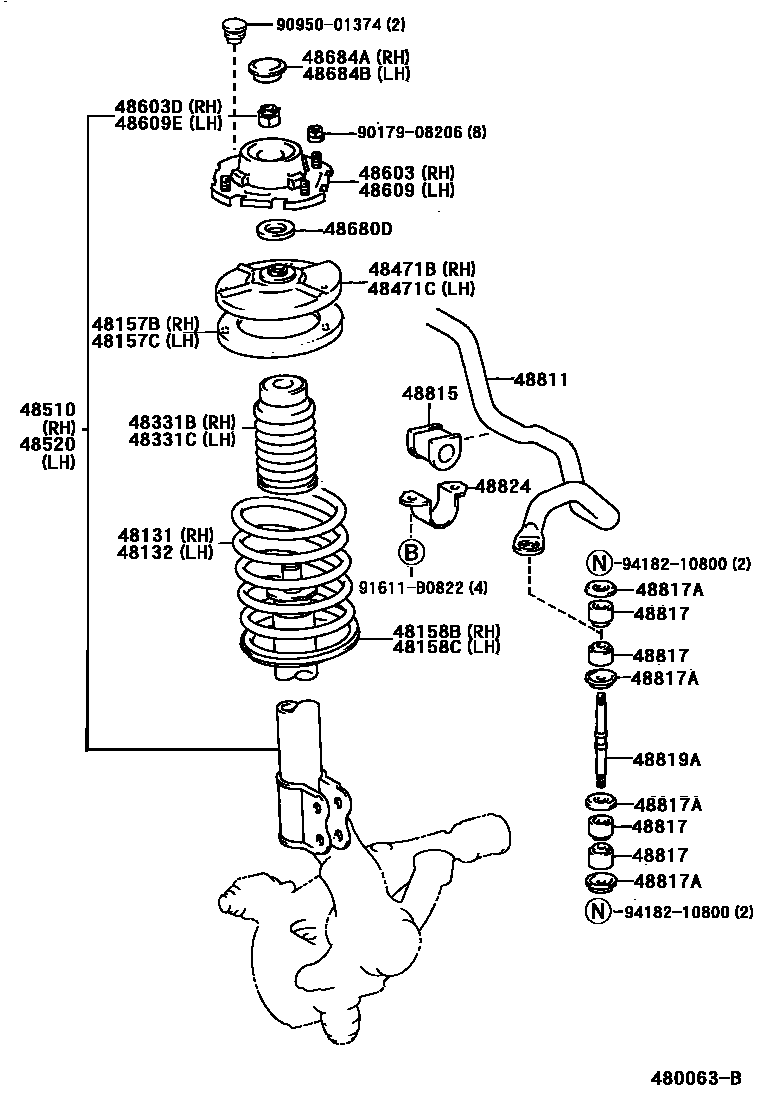

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
W(TIRE SIZE 175/65R14);W(TIRE SIZE 185/60R14)
W(TIRE SIZE 175/65R14);W(TIRE SIZE 185/60R14)
sub48131-10621
W(TIRE SIZE 155SR13)
sub48131-1G251
sub48131-1G890
48132SPRING, FRONT COIL, LH
W(TIRE SIZE 175/65R14);W(TIRE SIZE 185/60R14)
W(TIRE SIZE 175/65R14);W(TIRE SIZE 185/60R14)
sub48131-10621
W(TIRE SIZE 155SR13)
sub48131-1G251
sub48131-1G890
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
SPORTS PACKAGE
W(14 INCHES DISC WHEEL)
W(13 INCHES DISC WHEEL)
48331CBUMPER, FRONT SPRING, LH
W(14 INCHES DISC WHEEL)
SPORTS PACKAGE
W(13 INCHES DISC WHEEL)
48510ABSORBER ASSY, SHOCK, FRONT RH
W(13 INCHES DISC WHEEL)
48520ABSORBER ASSY, SHOCK, FRONT LH
W(13 INCHES DISC WHEEL)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
SPORTS PACKAGE
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
SPORTS PACKAGE
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
SPORTS PACKAGE
48817CUSHION, FRONT STABILIZER
SPORTS PACKAGE
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
SPORTS PACKAGE
48819ABOLT, FRONT STABILIZER
SPORTS PACKAGE
48824BRACKET, STABILIZER, FRONT
SPORTS PACKAGE
9017908206
main90179-08206
9095001374
main90950-01374
91611B0822
main91611-B0822
9418210800
main94182-10800
29 parts on this diagram · 1 diagram in section
