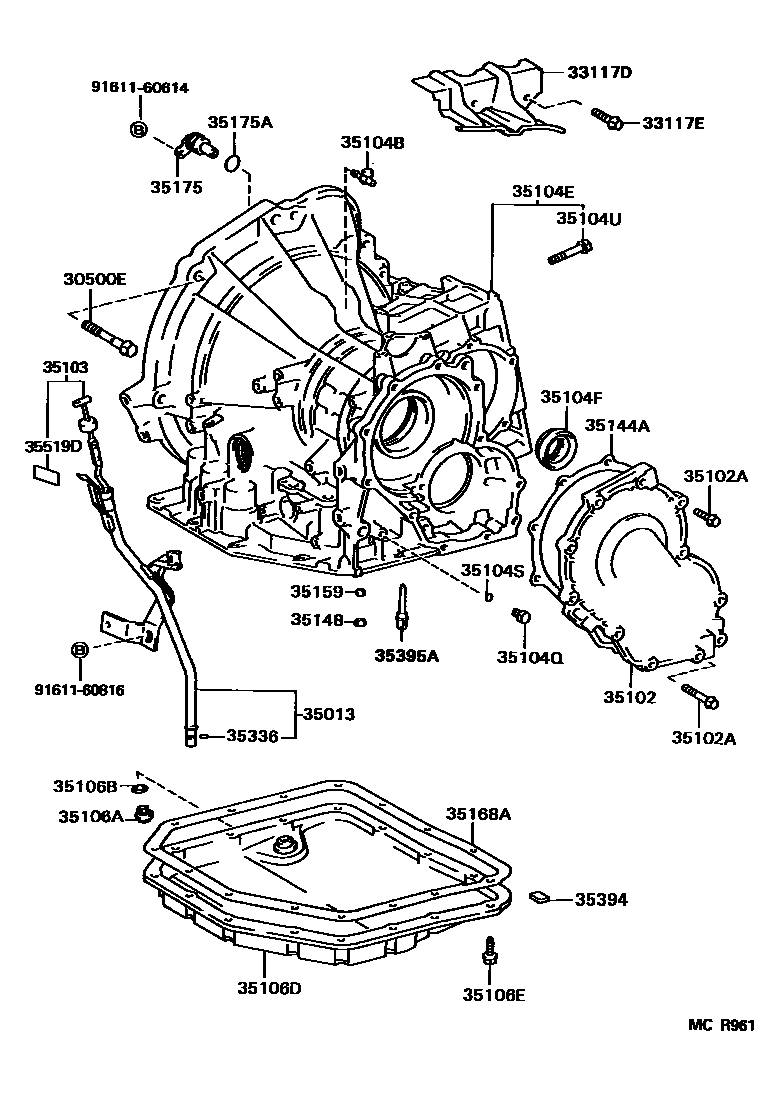

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A132L 0002 1A242L

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10097iEL53..ATM199409

*10-1.25PX60-22

main90119-12168iEL53..ATM199409

*12-1.25PX55-30

main91612-41025iEL53..4FC199409

*10-1.25PX25-25

sub90119-10223

main91619-61245iEL53..ATM199409

*12-1.25PX45-30

main91621-60614iEL53..4FC199409-199506

*6-1.00PX14-14

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-10011iEL53..3FC199409

main33117-12030iEL53..4FC199409

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iEL53..ATM199409

sub91641-H0820

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-16240iEL53..4FC199409-199712

main35013-16241iEL53..4FC199712

main35013-16250iEL53..3FC199409

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iEL53..3FC199409

main35102-16031iEL53..4FC199409

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08050iEL53..3FC199409

*8-1.25PX28-28

main90105-08056iEL53..3FC199409

*8-1.25PX40-40

main90105-08065iEL53..4FC199409

*8-1.25PX45-35

main90105-08068iEL53..4FC199409

*8-1.25PX35-30

sub90105-08333

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-16210iEL53..4FC199409-199712

main35103-16211iEL53..4FC199712

main35103-16230iEL53..3FC199409

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iEL53..3FC199409

main90930-03101iEL53..4FC199409

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-10043iEL53..3FC199409

35104FSEAL, OIL (FOR TRANSAXLE CASE)

main90311-34012iEL53..3FC199409-199803

main90311-34013iEL53..4FC199409

sub90311-34026

main90311-34023iEL53..3FC199803

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iEL53..4FC199409

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iEL53..4FC199409

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iEL53..3FC199409

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iEL53..4FC199409

sub90341-10011

main90341-18016iEL53..3FC199409

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iEL53..4FC199409

main90430-18008iEL53..3FC199409

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iEL53..3FC199409

main35106-12070iEL53..4FC199409

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iEL53..4FC199409

35144AGASKET, TRANSAXLE REAR COVER

main35144-12020iEL53..3FC199409-199808

sub35144-12030

main35144-12030iEL53..3FC199808

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iEL53..ATM199409

35159GASKET, BRAKE DRUM

main35159-20010iEL53..4FC199409

main35159-32011iEL53..3FC199409

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iEL53..4FC199409

main35168-32010iEL53..3FC199409

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iEL53..3FC199409

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iEL53..3FC199409

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iEL53..ATM199409

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iEL53..ATM199409

35395ASTRAINER, GOVERNOR OIL

main35395-12020iEL53..4FC199409

main35395-32030iEL53..3FC199409

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iEL53..3FC199409

9161160614

main91611-60614

9161160816

main91611-60816

29 parts on this diagram · 2 diagrams in section
