WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16420iEL42..USA199009-199208

sub85110-16460

main85110-16430iEL42..CND199009-199208

COLD SPEC

sub85110-16470

main85110-16511iEL42..USA199208-199409

CHILE SPEC

sub85110-16550

main85110-16520iEL42..CND199208-199409

COLD SPEC

sub85110-16550

85160LINK ASSY, WINDSHIELD WIPER

main85150-16410iEL42..USA199009-199208

main85150-16411iEL42..4DS..CND199208-199409

CHILE SPEC

main85150-16420iEL42..CND199009-199207

COLD SPEC

sub85150-16421

main85150-16421iEL42..USA199207-199409

COLD SPEC

85190ARM ASSY, WINDSHIELD WIPER

main85211-16080iEL42199009-199111

RH

main85211-16081iEL42199111-199409

RH

main85221-16120iEL42199009-199111

LH

sub85221-16121

main85221-16121iEL42199111-199409

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iEL42199009-199111

main85292-12020iEL42199111-199409

85220BLADE ASSY, WINDSHIELD WIPER

main85212-16090iEL42199009-199111

RH

sub85212-20301

main85212-16091iEL42199111-199211

RH

sub85212-16092

main85212-16092iEL42199211-199409

RH

sub85212-30271

main85222-1G010iEL42199009-199111

LH

sub85222-1G011

main85222-1G011iEL42199111-199211

LH

sub85222-1G012

main85222-1G012iEL42199211-199409

LH

sub85222-1G080

85221BLADE, WINDSHIELD WIPER

main85213-16080iEL42199009-199112

RH

sub85214-20330

main85213-16100iEL42199112-199211

RH

sub85213-30270

main85213-30270iEL42199211-199409

RH

sub85214-20330

main85213-60020iEL42199211-199409

LH

sub85214-20330

main85223-1G030iEL42199009-199211

LH

sub85213-60020

9011906187

main90119-06187

9017908113

main90179-08113

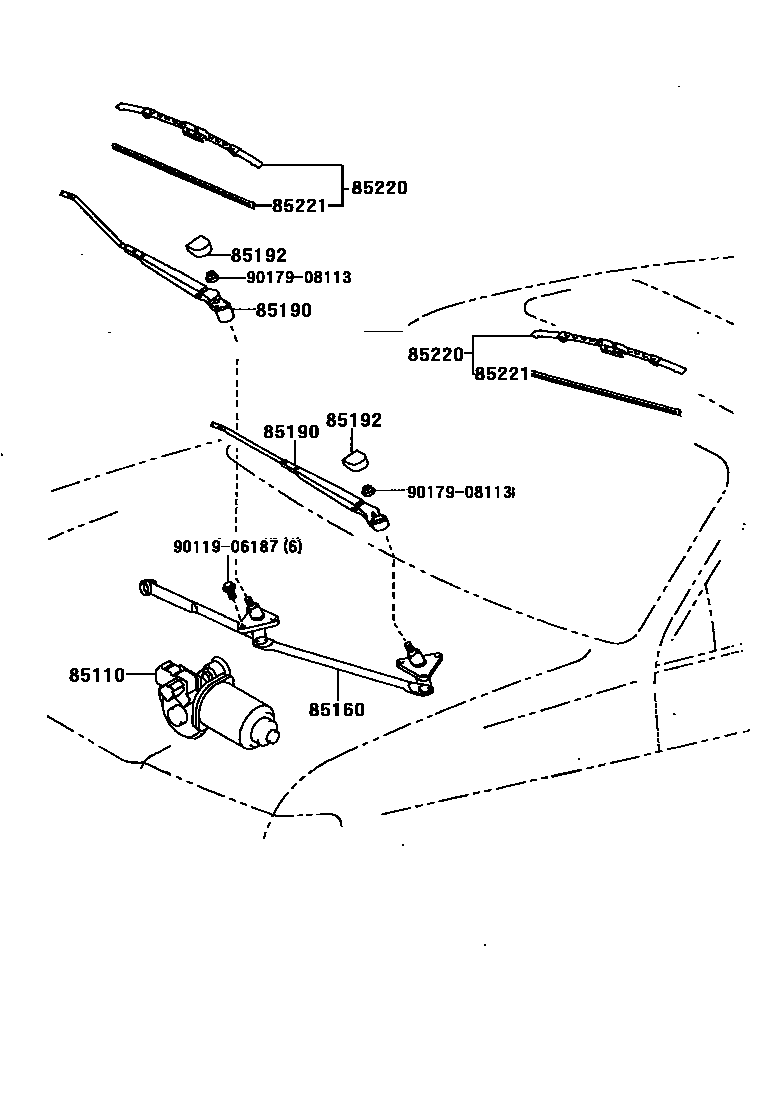

8 parts on this diagram · 1 diagram in section
