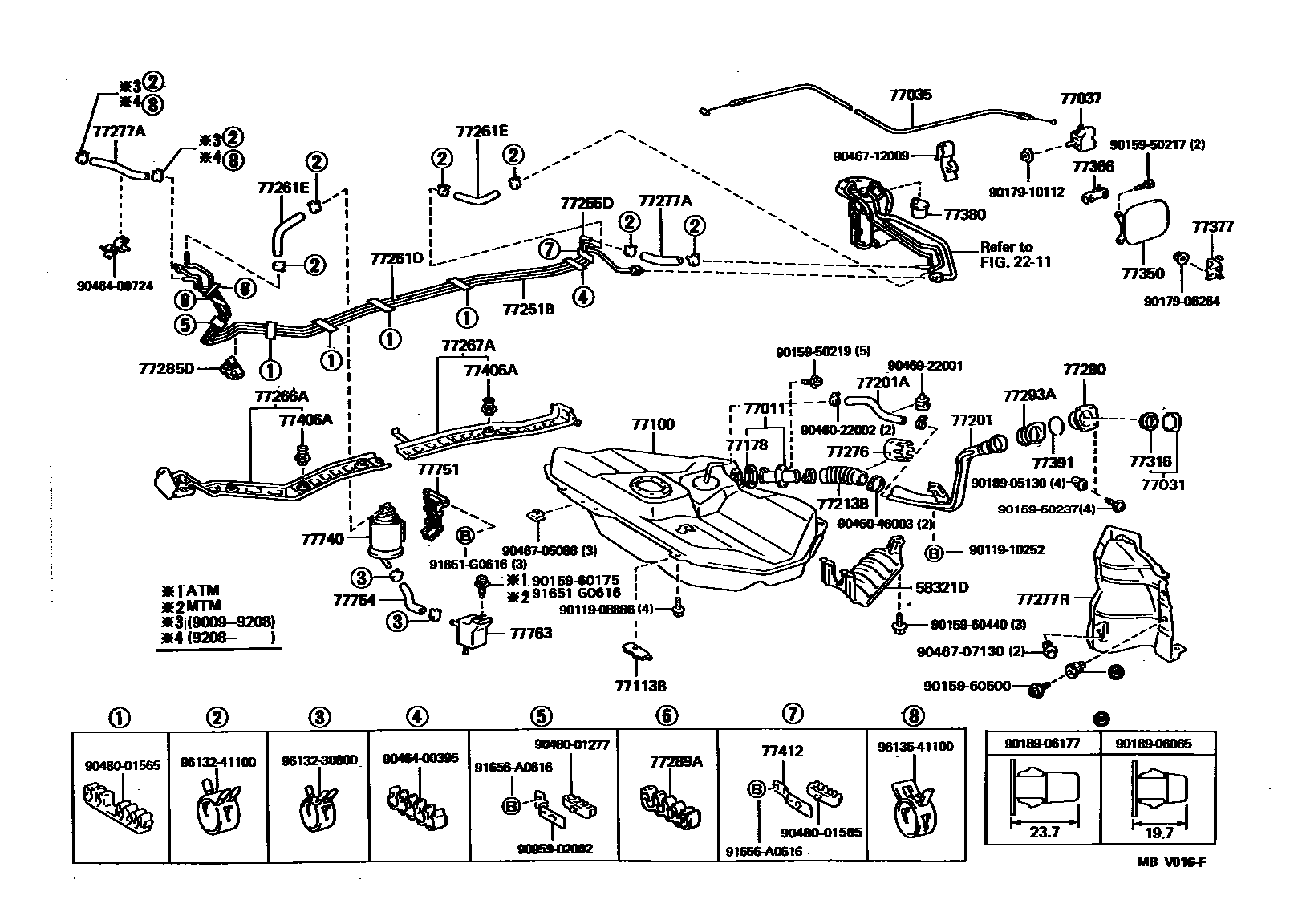

FUEL TANK & TUBE

2211

58321DINSULATOR, REAR FLOOR HEAT, NO.1

main58321-10020iEL42199009-199409

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10060iEL42199009-199409

77031CAP ASSY, FUEL TANK

main77310-12140iEL42199009-199409

main77310-16011iEL42..4DS..CND199401-199409

CHILE SPEC

sub77310-12140

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-16150iEL42..DLX..USA199009-199409

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iEL42..DLX,LE199009-199104

main77037-16030iEL42..DLX,LE199104-199409

77100TANK ASSY, FUEL

main77001-16220iEL42199009-199409

sub77001-16230

77113BPLATE, FUEL TANK SIDE

main77113-10020iEL42199009-199409

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iEL42199208-199409

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-16170iEL42199009-199105

sub77201-16171

main77201-16171iEL42199105-199409

sub77201-16270

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95311-13028iEL42199009-199409

L=280

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-16050iEL42199009-199409

L=395

sub77213-16090

77251BTUBE, FUEL MAIN

main77251-16190iEL42199009-199409

77255DTUBE, FUEL RETURN

main77255-16180iEL42199009-199409

77261DTUBE, FUEL TANK TO CANISTER

main77261-16110iEL42199009-199409

77261EHOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

main77259-20120iEL42199104-199409

L=170

main77419-10010iEL42199009-199409

L=140

main95333-06020iEL42199009-199104

L=200

sub95337-06020

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEL42199009-199409

77267APROTECTOR, FUEL TUBE, NO.2

main77267-16020iEL42199009-199409

77276PROTECTOR, FUEL HOSE

main77276-10020iEL42199009-199409

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main23271-11150iEL42199101-199409

*H,L=360

main77279-10020iEL42199009-199301

L=200

sub95333-06020

main77279-10050iEL42199301-199409

L=130

sub95333-06020

main95333-06040iEL42199009-199101

L=400

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-16100iEL42199009-199409

77285DCLAMP, FUEL TUBE, NO.1

main77285-10010iEL42199307-199409

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10030iEL42199009-199409

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-16070iEL42..LE..USA;EL42..(DLX,LE)..CND199009-199409

W(BACK DOOR & TRUNK OPENER)

main77290-16090iEL42..STD..CND;EL42..(DLX,STD)..USA199009-199409

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-16070iEL42..LE..USA;EL42..(DLX,LE)..CND199009-199409

W(BACK DOOR & TRUNK OPENER)

main77293-16080iEL42..STD..CND;EL42..(DLX,STD)..USA199009-199409

77316GASKET, FUEL TANK CAP

main77316-16010iEL42199009-199409

77350LID ASSY, FUEL FILLER OPENING

main77350-16150iEL42..STD..CND;EL42..(DLX,STD)..USA199009-199409

main77350-16160iEL42..LE..USA;EL42..(DLX,LE)..CND199009-199409

W(BACK DOOR & TRUNK OPENER)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-20030iEL42199009-199409

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20050iEL42..DLX,LE199009-199409

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iEL42199208-199409

77391RING, FUEL INLET BOX

main77391-14020iEL42199009-199409

77406ACLIP(FOR FUEL TUBE PROTECTOR)

main90467-16023iEL42199009-199409

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEL42199009-199409

77740CANISTER ASSY, CHARCOAL

main77740-16180iEL42199009-199409

77751BRACKET, CHARCOAL CANISTER BASE

main77751-16120iEL42199009-199409

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main90445-14167iEL42..3FC199104-199409

L=210

main95333-08030iEL42..3FC199009-199409

L=300

77763CASE, CHARCOAL CANISTER DRAIN

main77763-10010iEL42..3FC199009-199409

main77763-10020iEL42..MTM199009-199409

9011908866

main90119-08866

9011910252

main90119-10252

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9015960175

main90159-60175

9015960440

main90159-60440

9015960500

main90159-60500

9017906264

main90179-06264

9017910112

main90179-10112

9018905130

main90189-05130

9018906065

main90189-06065

9018906177

main90189-06177

9046022002

main90460-22002

9046046003

main90460-46003

9046400395

main90464-00395

9046400724

main90464-00724

9046705086

main90467-05086

9046707130

main90467-07130

9046712009

main90467-12009

9046922001

main90469-22001

9048001277

main90480-01277

9048001565

main90480-01565

9095902002

main90959-02002

91651G0616

main91651-G0616

91656A0616

main91656-A0616

9613230800

main96132-30800

9613241100

main96132-41100

9613541100

main96135-41100

66 parts on this diagram · 1 diagram in section
