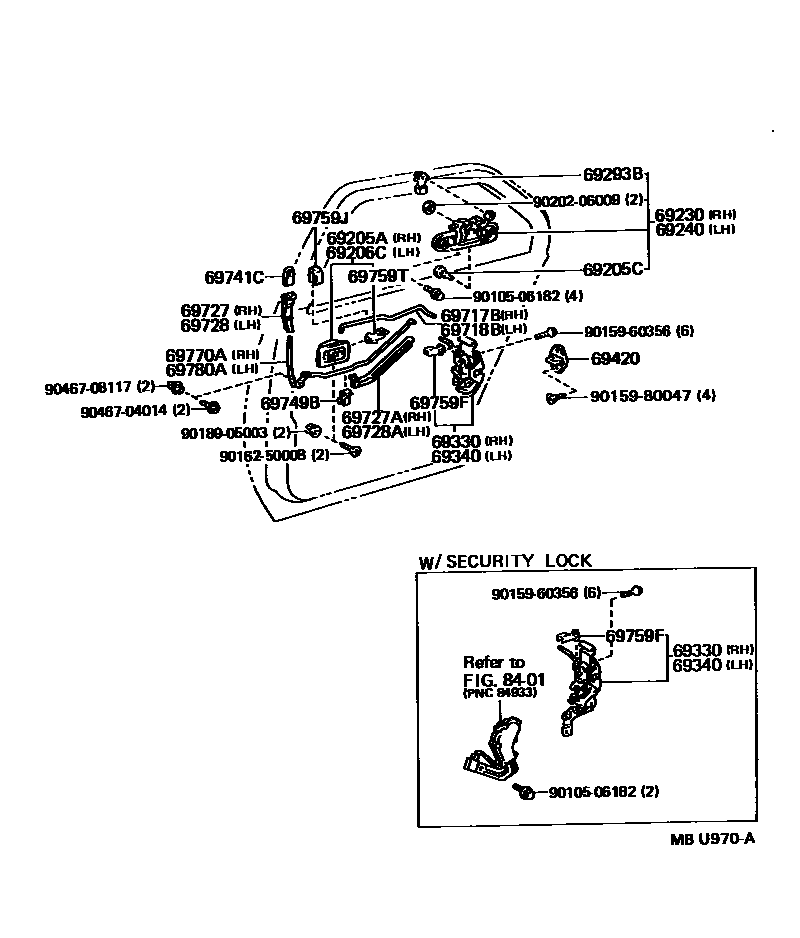

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
LH
RH
69330LOCK ASSY, REAR DOOR, RH
PUERTORICO SPEC & W(POWER WINDOW)
PUERTORICO SPEC
69340LOCK ASSY, REAR DOOR, LH
PUERTORICO SPEC & W(POWER WINDOW)
PUERTORICO SPEC
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69727APROTECTOR, REAR DOOR INSIDE LOCKING LINK
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69728APROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
YELLOW
BROWN
69759JSILENCER, DOOR LOCK LINK
69759TSNAP, REAR DOOR INSIDE HANDLE
LH
RH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
8401
9010506182
main90105-06182
9015960356
main90159-60356
9015980047
main90159-80047
9016250008
main90162-50008
9018905003
main90189-05003
9020206009
main90202-06009
9046704014
main90467-04014
9046708117
main90467-08117
31 parts on this diagram · 1 diagram in section
