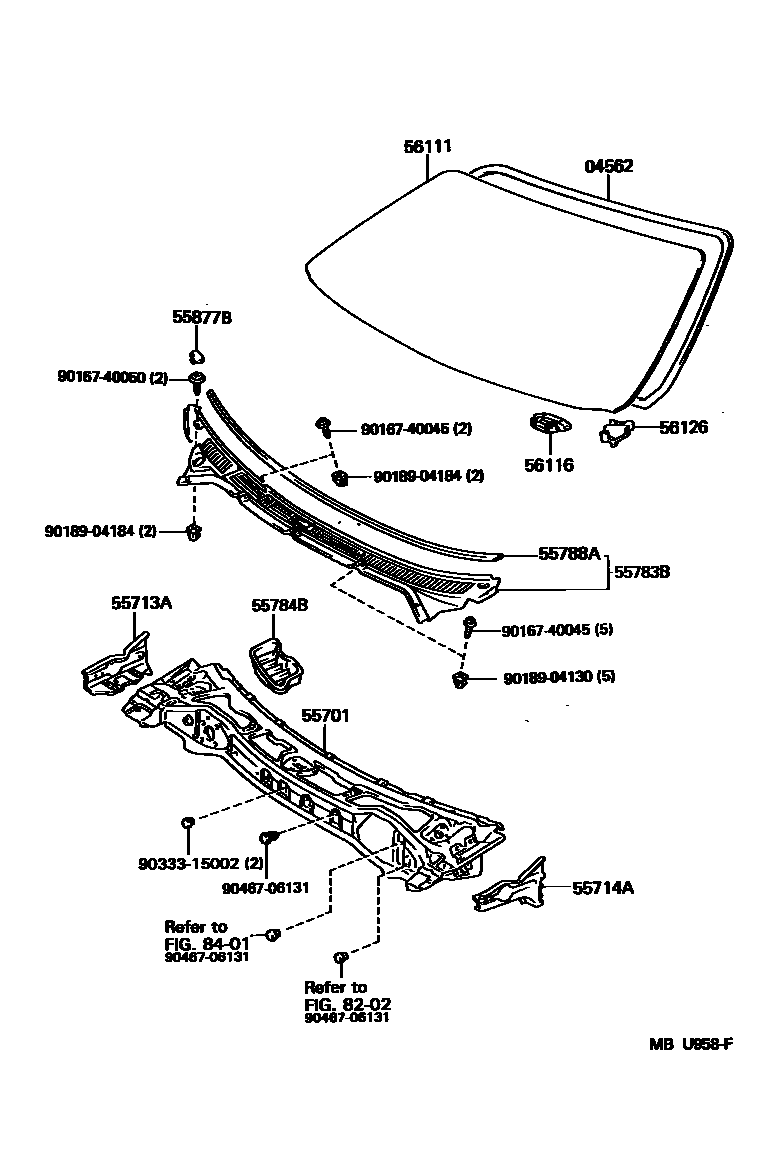

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55701PANEL SUB-ASSY, COWL
sub55700-16230
55713APANEL, COWL TOP SIDE, RH
sub55713-16060
55714APANEL, COWL TOP SIDE, LH
sub55714-16060
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
COLD AREA PACKAGE
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55877BCOVER, COWL VENT, RH
56111GLASS, WINDSHIELD
*LAM,T=4.7,BLUE,CHILE SPEC
*LAM,T=4.7,BLUE
56126SPACER, WINDSHIELD GLASS, NO.2
RH
LH
8202
8401
9016740045
main90167-40045
9016740050
main90167-40050
9018904130
main90189-04130
9018904184
main90189-04184
9033315002
main90333-15002
9046706131
main90467-06131
19 parts on this diagram · 1 diagram in section
