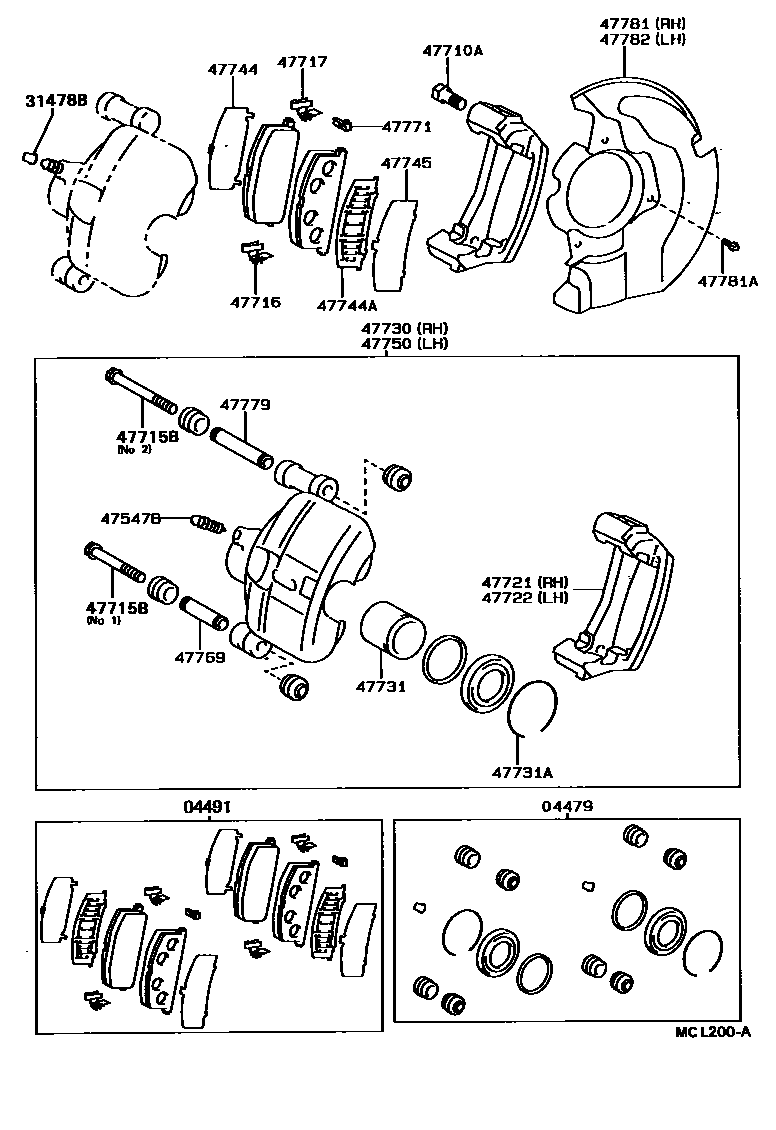

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-10070iEL42199009-199409

main04479-12091iEL42199208-199409

W(*66)

04491PAD KIT, DISC BRAKE, FRONT

main04491-10220iEL42199009-199401

sub04491-10221

main04491-10221iEL42199401-199409

sub04465-12090

main04491-16210iEL42199208-199401

W(*66)

sub04491-16211

main04491-16211iEL42199401-199409

W(*66)

sub04465-12090

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iEL42199009-199409

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iEL42199009-199409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iEL42199009-199409

*12-1.25PX25.8-19.5

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90119-09003iEL42199208-199409

W(*66),NO.1

main90119-09004iEL42199208-199409

W(*66),NO.2

main90119-09007iEL42199208-199409

NO.1

main90119-09007iEL42199009-199208

NO. 1

main90119-09008iEL42199009-199208

NO. 2

main90119-09008iEL42199208-199409

NO.2

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140iEL42199009-199409

main47716-32031iEL42199208-199409

W(*66)

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140iEL42199009-199409

main47717-32031iEL42199208-199409

W(*66)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12120iEL42199208-199409

W(*66)

main47721-16040iEL42199009-199409

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-12120iEL42199208-199409

W(*66)

main47721-16040iEL42199009-199409

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-10100iEL42199208-199409

W(*66)

sub47730-10101

main47730-16090iEL42199009-199409

47731PISTON, FRONT DISC BRAKE

main47731-12150iEL42199208-199409

W(*66)

main47731-16040iEL42199009-199409

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-61001iEL42199009-199409

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iEL42199208-199409

W(*66)

sub47744-32010

main47744-20050iEL42199009-199409

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-20050iEL42199009-199409

main47742-32040iEL42199208-199409

W(*66)

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-20050iEL42199009-199409

main47745-32040iEL42199208-199409

W(*66)

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-10100iEL42199208-199409

W(*66)

sub47750-10101

main47750-16090iEL42199009-199409

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iEL42199208-199409

W(*66)

main47769-20010iEL42199009-199409

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030iEL42199009-199409

sub47771-32010

main47771-32010iEL42199208-199409

W(*66)

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iEL42199208-199409

W(*66)

main47779-20010iEL42199009-199409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10060iEL42199009-199409

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iEL42199009-199409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10060iEL42199009-199409

23 parts on this diagram · 2 diagrams in section
