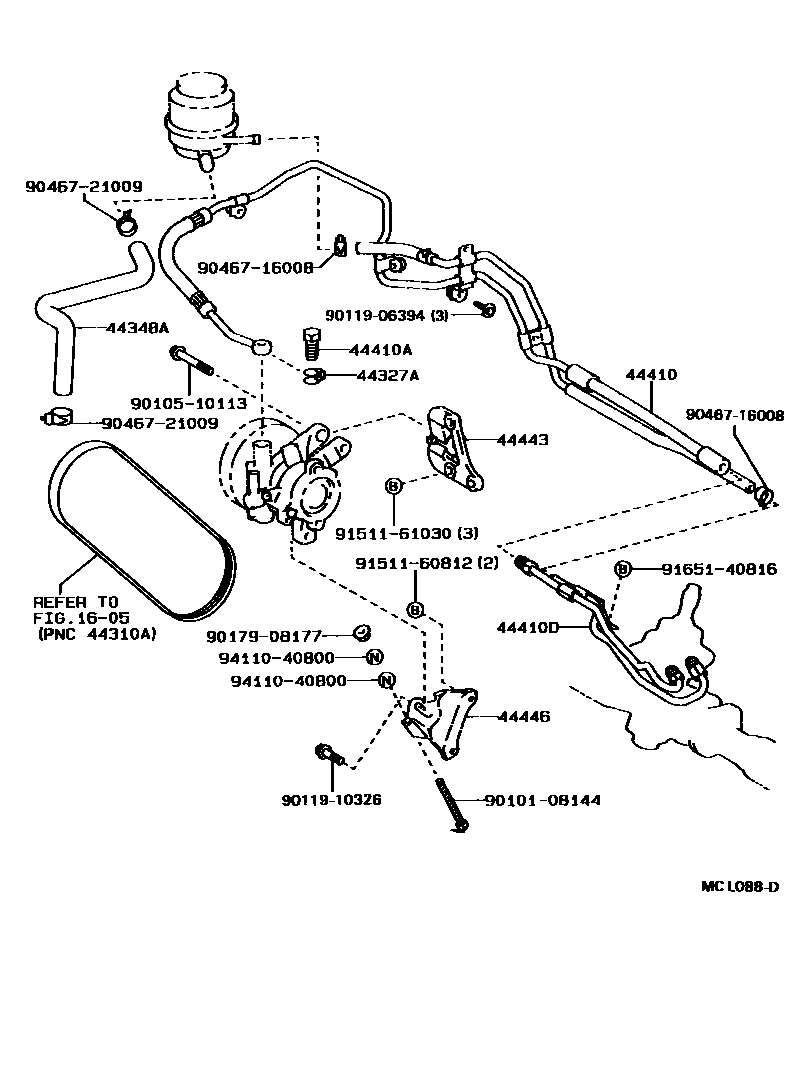

POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEL42199009-199409

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16100iEL42199009-199409

44410TUBE ASSY, PRESSURE FEED

main44410-16200iEL42199009-199104

main44410-16201iEL42199104-199208

sub44410-16202

main44410-16202iEL42199208-199405

sub44410-16203

main44410-16203iEL42199405-199409

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEL42199208-199212

main90401-16012iEL42199212-199409

main90401-16017iEL42199009-199208

sub90401-16008

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-10190iEL42199408-199409

main44410-16150iEL42199009-199104

main44410-16240iEL42199104-199408

sub44410-10190

44443BRACKET, PUMP

main44443-13010iEL42199009-199409

44446STRUT, ADJUSTING

main44446-16060iEL42199009-199012

sub44446-16061

main44446-16061iEL42199012-199409

9010108144

main90101-08144

9010510113

main90105-10113

9011906394

main90119-06394

9011910326

main90119-10326

9017908177

main90179-08177

9046716008

main90467-16008

9046721009

main90467-21009

9151160812

main91511-60812

9151161030

main91511-61030

9165140816

main91651-40816

9411040800

main94110-40800

19 parts on this diagram · 1 diagram in section
