RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-16350iEL31..USA198808-199009

FUJITSU TEN

sub86120-10290

main86120-16550iEL31198808-199009

sub86120-16551

main86120-16560iEL31..DX,STD198808-198908

sub86120-16570

main86120-16570iEL31..DX,STD198908-199009

*AFM/4-AMP

main86120-28040iEL31..DX,STD198808-199009

AM-530-1620KHZ

main86120-32390iEL31..USA198808-199009

FUJITSU TEN,AM-530-1602KHZ

86128KNOB, RADIO RECEIVER

main86128-12140iEL31198808-199009

AM/FM MPX ETR/2-AMP,NO.1

main86128-12160iEL31198808-199009

AM/FM MPX ETR/2-AMP,NO.2

main86128-12180iEL31198808-199009

NO.3

main86128-12300iEL31..DX,STD198808-199009

*AFM/4-AMP,NO.2

main86128-16040iEL31..USA198808-199009

AM-5PB,NO.1

main86128-16060iEL31..USA198808-199009

AM 5-PB,NO.2

main86128-28140iEL31..DX,STD198808-199009

AM/FM MPX ETR/4-AMP,NO.2

main86128-28160iEL31..DX,STD198808-199009

*AFM/4-AMP,AM/FM MPX ETR/4-AMP,NO.1

86211BRACKET, RADIO, NO.1

main86211-16180iEL31198808-199009

86212BRACKET, RADIO, NO.2

main86212-16180iEL31198808-199009

86260TAPE PLAYER ASSY

main86260-16140iEL31198808-199009

9014950032

main90149-50032

9015950173

main90159-50173

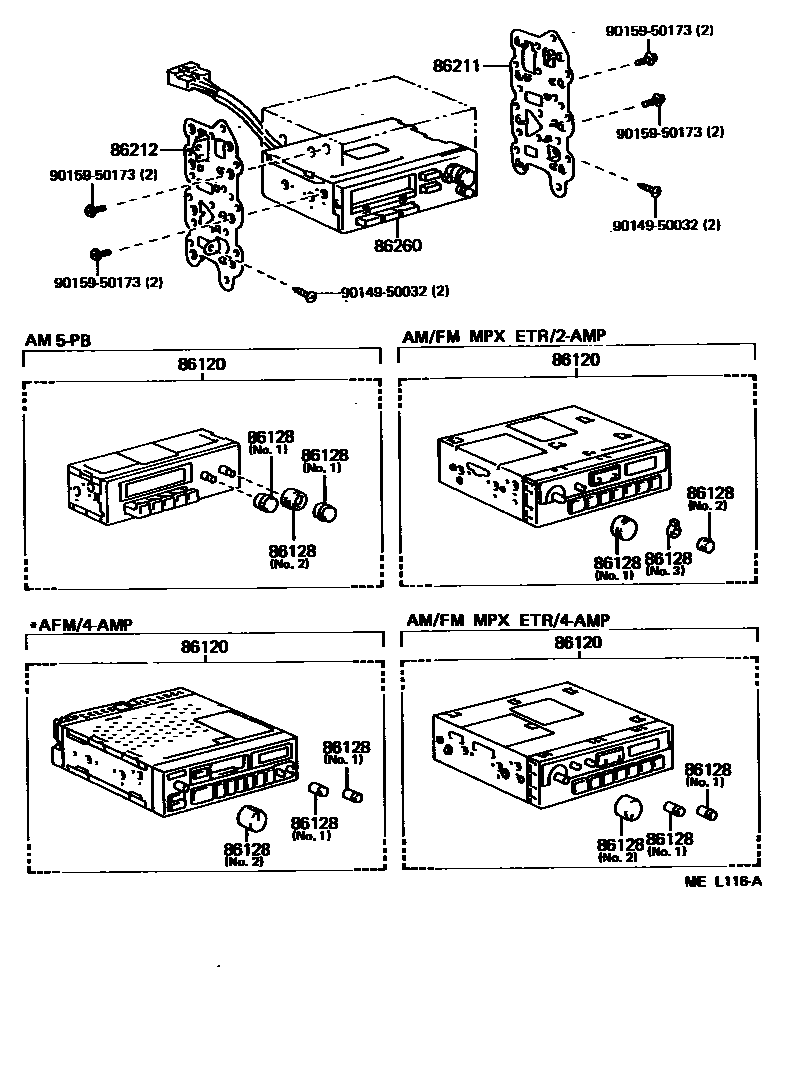

7 parts on this diagram · 1 diagram in section
