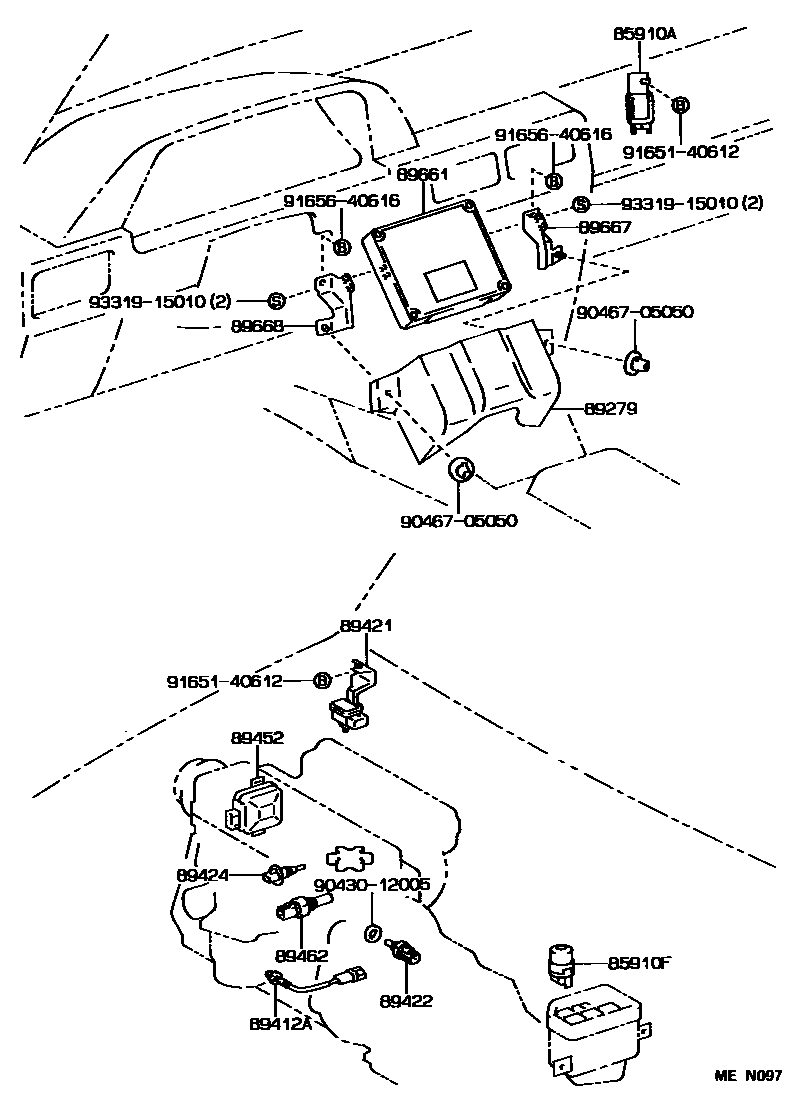

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-16020iEL31..EFI198908-199009

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iEL31..EFI198908-199009

89279COVER, ENGINE CONTROL COMPUTER

main89279-16060iEL31..EFI198908-199009

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iEL31..EFI198908-199009

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-16010iEL31..EFI198908-199009

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEL31..EFI198908-199009

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEL31..EFI198908-199009

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iEL31..EFI198908-199009

89462SWITCH, START INJECTOR TIME

main89462-20030iEL31..EFI198908-199009

89661COMPUTER, ENGINE CONTROL

main89661-16030iEL31..EFI198908-199004

sub89661-16031

main89661-16031iEL31..EFI199004-199009

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16010iEL31..EFI198908-199009

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-16010iEL31..EFI198908-199009

9043012005

main90430-12005

9046705050

main90467-05050

9165140612

main91651-40612

9165640616

main91656-40616

9331915010

main93319-15010

17 parts on this diagram · 1 diagram in section
