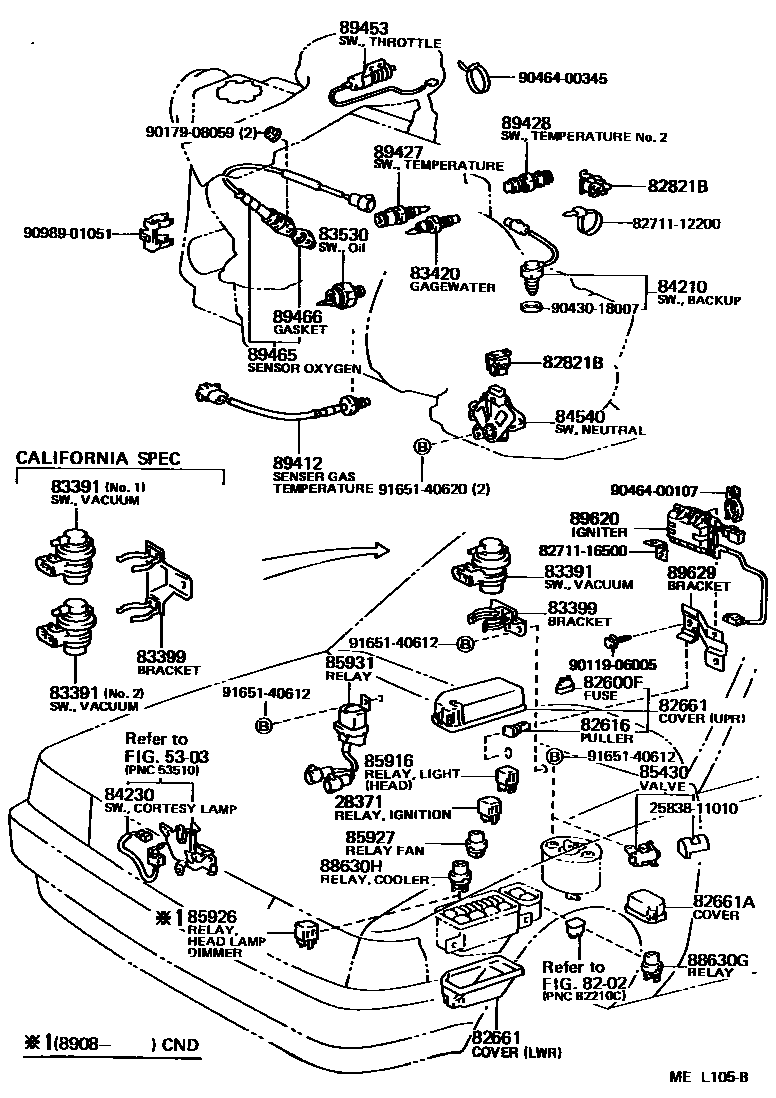

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1

28371RELAY, IGNITION, NO.1

main90987-04002i3E#..EL31198808-199009

5303

8202

82600FFUSE, FUSE BLOCK

main90982-07011iEL31198808-199009

30A,GREEN

main90982-09002iEL31..3DS..3FC..USA..CBR198808-199009

10A

main90982-09003iEL31..DX..CND198808-199009

15A

main90982-09003iEL31..DX..CND198908-199009

15A,15A

main90982-09004iEL31..MTM;EL31..3FC..CND;EL31..STD..EFI;EL31..3FC..DX..USA198808-199009

20A,YELLOW

main90982-09005iEL31..MTM;EL31..3FC..CND;EL31..STD..EFI;EL31..3FC..DX..USA198808-199009

7.5A

82616PULLER, FUSE

main82616-12010iEL31198808-199009

82661COVER, RELAY BLOCK, NO.1

main82661-16170iEL31198808-199009

UPR

main82661-16200iEL31..3FC,5F;EL31..4F..USA198808-199009

LWR

main82661-16230iEL31..EFI198908-199009

UPR

main82661-16240iEL31..(DX,STD)..CND198908-199009

UPR

82661ACOVER, RELAY BLOCK, NO.2

main82661-16190iEL31198808-199009

82821BCOVER, CONNECTOR

main82821-12250iEL31..MTM198808-199009

BACK UP LAMP SW.

main82821-16030iEL31..3FC198808-199009

NEUTRAL START SW.

83391SWITCH, VACUUM

main83391-12210iEL31..USA198808-199009

CALIFORNIA SPEC,NO.1

main83391-12210iEL31..CBR198808-199009

main83391-12220iEL31..MTM..USA198808-199009

CALIFORNIA SPEC,NO.2

main83391-16190iEL31..3FC..USA198808-198908

CALIFORNIA SPEC,NO.2

83399BRACKET, VACUUM SWITCH

main83399-16050iEL31..CBR198808-199009

main83399-16080iEL31..MTM..USA198808-199009

CALIFORNIA SPEC

main83399-16100iEL31..3FC..USA198808-198908

CALIFORNIA SPEC

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL31198808-199009

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30080iEL31198808-199009

sub83530-60040

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL31..MTM198808-199009

sub84210-52050

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-12040iEL31..TER..(2DS,3DS)..USA..CBR198808-199009

84540SWITCH ASSY, NEUTRAL START

main84540-16030iEL31..3FC198808-199009

85430VALVE, OUTER VENT CONTROL

main90925-09013iEL31..CBR198808-199009

NIPPONDENSO

main90925-09014iEL31..CBR198808-199009

85916RELAY, LIGHT CONTROL

main90987-01003iEL31198808-199009

TAIL LAMP

main90987-02006iEL31198808-199009

HEAD LAMP

85926RELAY, HEADLAMP DIMMER

main85926-30020iEL31..CND198908-199009

85927RELAY, COOLING FAN

main90987-03001iEL31198808-199009

85931RELAY, EMISSION CONTROL

main85931-16010iEL31..CBR198808-199009

88630GRELAY ASSY, COOLER

main90987-02004iEL31..CND198808-199009

88630HRELAY ASSY, COOLER

main90987-02004iEL31..CND198808-199009

89412SENSOR, E.G.R GAS TEMPERATURE

main89412-12010iEL31..USA198808-199009

89427SWITCH, TEMPERATURE DETECT

main89427-12090iEL31..CBR198808-199009

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10100iEL31..CBR198808-199009

AISIN

main89428-10110iEL31..CBR198808-199009

NIPPONDENSO

main89428-20060iEL31..EFI198908-199009

89453SWITCH, THROTTLE POSITION (FOR T.C.S.)

main89453-16010iEL31..CBR198808-199009

sub89453-12040

89465SENSOR, OXYGEN

main89465-29165iEL31198808-199009

sub89465-29166

main89465-29316iEL31..3FC198908-199009

89466GASKET, OXYGEN SENSOR

main89466-20020iEL31198810-199009

main89466-30010iEL31198808-198810

sub89466-20020

89620IGNITER ASSY

main89621-12010iEL31..EFI198908-199009

main89621-16010iEL31..CBR198808-199009

89629BRACKET, IGNITER ASSY

main89629-16010iEL31..CBR198808-199009

main89629-16020iEL31..EFI198908-199009

2583811010COVER, OUTER VENT CONTROL VALVE

main25838-11010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271116500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16500

9011906005

main90119-06005

9017908059

main90179-08059

9043018007

main90430-18007

9046400107

main90464-00107

9046400345

main90464-00345

9098901051

main90989-01051

9165140612

main91651-40612

9165140620

main91651-40620

41 parts on this diagram · 5 diagrams in section
