WIRING & CLAMP

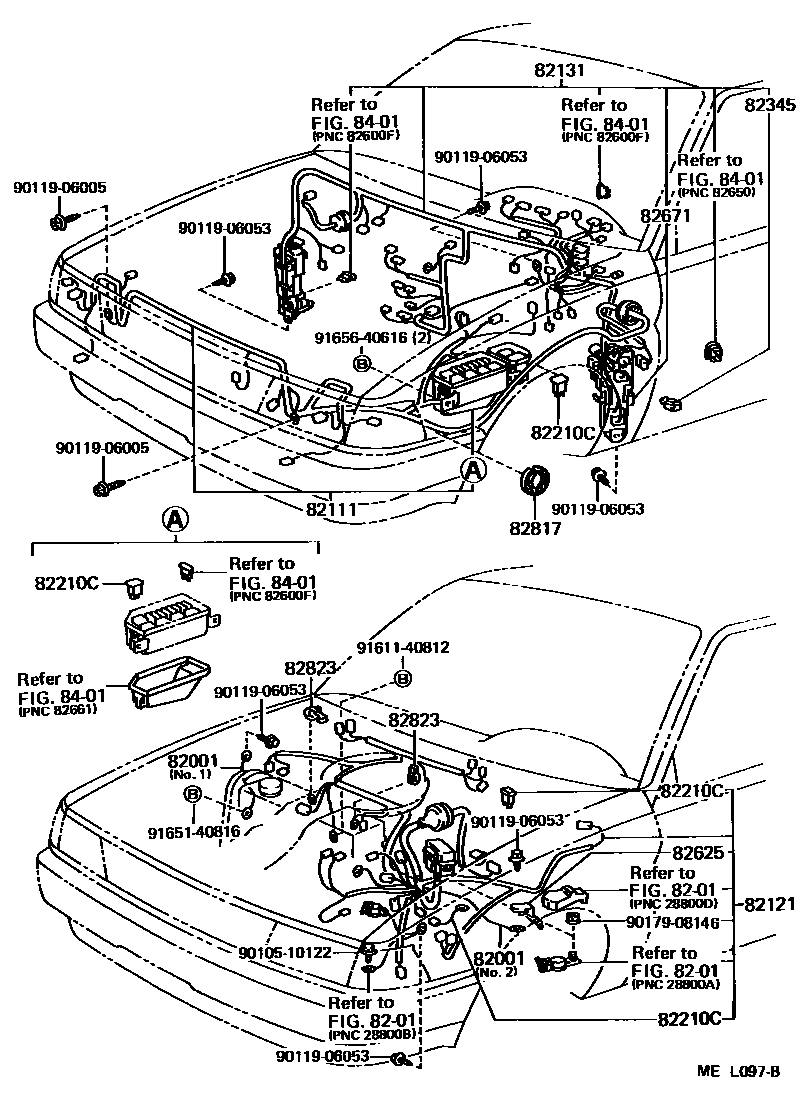

Parts diagram
82001CABLE, BOND, NO.1
main90980-07242i198808-199009
NO.2
main90980-07282i198808-199009
NO.1
8201
82111WIRE, ENGINE ROOM MAIN
main82111-16632i198808-198908
main82111-16633i198908-199009
main82111-16701i198808-198908
main82111-16702i198908-199009
main82111-16711i198808-198908
main82111-16712i198908-199009
main82111-16721i198808-198908
W(RR WIPER)
main82111-16722i198908-199009
W(RR WIPER)
main82111-16731i198808-198908
W(*CRC)
main82111-16741i198808-198908
W(ANTI-THEFT DEVICE)
main82111-16742i198908-199009
W(ANTI-THEFT DEVICE)
main82111-16751i198808-198908
W(ANTI-THEFT DEVICE)
main82111-16752i198908-199009
W(ANTI-THEFT DEVICE)
main82111-16781i198908-199009
main82111-16791i198908-199009
W(RR WIPER)
main82111-16811i198908-199009
main82111-16821i198908-199009
main82111-16831i198908-199009
W(RR WIPER)
main82111-16841i198908-199009
W(*CRC)
82121WIRE, ENGINE
main82121-16273i198808-198908
main82121-16274i198908-199009
main82121-16283i198808-198908
main82121-16284i198908-199009
main82121-16323i198808-198908
COLD SPEC
main82121-16324i198908-199009
COLD SPEC
main82121-16333i198808-198908
COLD SPEC
main82121-16334i198908-199009
COLD SPEC
main82121-16400i198808-198908
CALIFORNIA SPEC
main82121-16401i198908-199009
CALIFOLNIA SPEC
main82121-16410i198808-198908
CALIFORNIA SPEC
main82121-16441i198908-199009
main82121-16480i198908-199009
main82121-16490i198908-199009
82131WIRE, COWL
main82131-1G320i198808-198908
main82131-1G330i198808-198908
W(REAR WINDOW DEFFOGGER)
main82131-1G340i198808-198908
W(RR WIPER) OR W(RR WIPER & *RWD)
main82131-1G340i198808-198908
W(RR WIPER)
main82131-1G350i198808-198908
W(*CRC)
main82131-1G350i198808-198908
W(*CRC) OR W(*CRC & RR WIPER)
main82131-1G360i198808-198908
W(ANTI-THEFT DEVICE)
main82131-1G432i198908-199002
main82131-1G442i198908-199002
W(REAR WINDOW DEFFOGGER)
main82131-1G452i198908-199009
W(REAR WIPER) OR W(RR WIPER & *RWD)
main82131-1G472i198908-199009
main82131-1G482i198908-199009
W(ANTI-THEFT DEVICE)
main82131-1G482i198908-199009
ANTI-THEFT DEVICE
main82131-1G491i198908-199009
main82131-1G501i198908-199009
W(RR WIPER)
main82131-1G511i198908-199009
W(*CRC)
main82131-1G790i199002-199009
main82131-1G800i199002-199009
main82131-1S030i199002-199009
main82131-1S040i199002-199009
82210CFUSIBLE LINK
main90982-08188i198808-199009
30A,TERM.:FEMALE,PNK
main90982-08189i198808-199009
40A,TERM.:FEMALE,GRN
main90982-08190i198808-199009
60A,TERM.:FEMALE,YEL
main90982-08203i198912-199009
80A,TERM.:MALE,BLK
main90982-08223i198908-199009
30A,TERM.:MALE,PNK
main90982-08253i198908-198912
80A,TERM.:MALE,BLK
sub90982-08203
main90982-08262i198908-199009
L=110
82345DIODE
main82345-12050i198808-199009
82625TERMINAL, FUSIBLE LINK
main82625-12030i198908-199009
82671BLOCK, JUNCTION
main82660-12130i198808-199009
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-22280i198808-199009
82823CAP, TERMINAL, NO.1
main82823-20030i198808-199009
ST
main82823-22050i198808-199009
ALTERNATOR
8401
9010510122
main90105-10122
9011906005
main90119-06005
9011906053
main90119-06053
9017908146
main90179-08146
9161140812
main91611-40812
9165140816
main91651-40816
9165640616
main91656-40616

19 parts on this diagram · 5 diagrams in section
