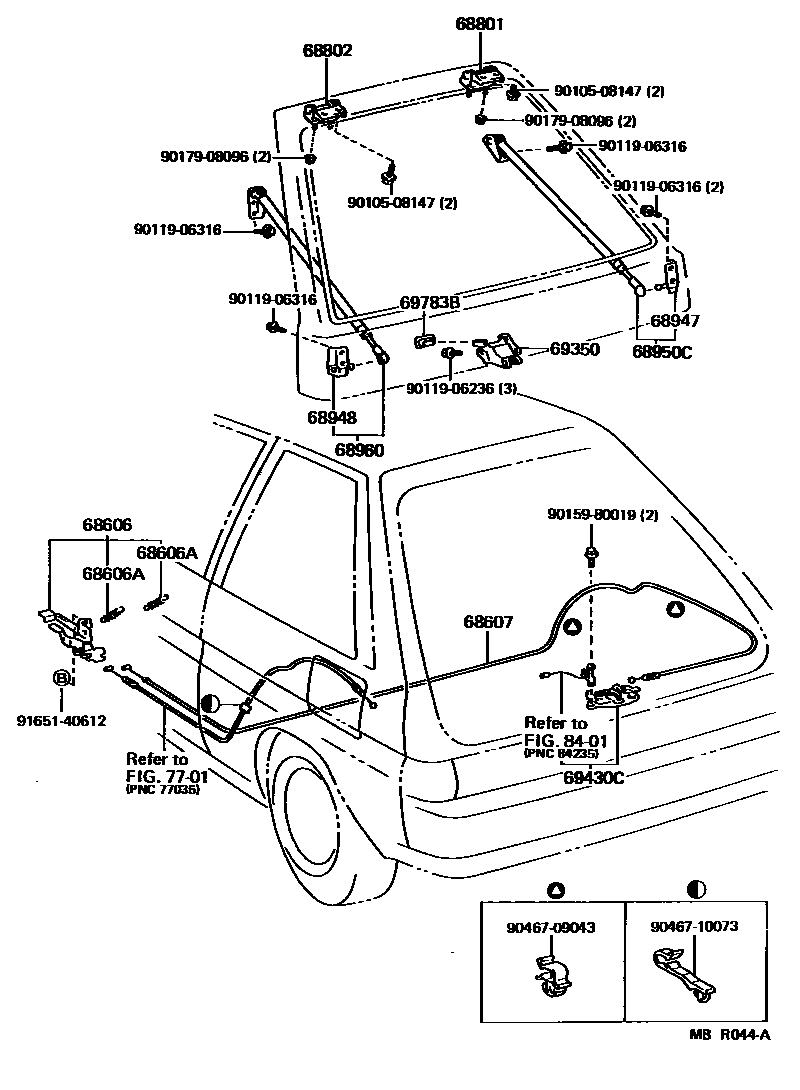

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
W(SECURITY SEAT)
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
W(SECURITY SEAT)
68801HINGE SUB-ASSY, BACK DOOR, UPPER RH
68802HINGE SUB-ASSY, BACK DOOR, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
W(RR WIPER)
W(RR WIPER)
68960STAY ASSY, BACK DOOR, LH
W(RR WIPER)
W(RR WIPER)
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
W(BACK DOOR & TRUNK OPENER)
W(SECURITY LUTCH)
W(BACK DOOR & TRUNK OPENER & SECURITY LUTCH)
69783BBEZEL, BACK DOOR INSIDE HANDLE
7701
8401
9010508147
main90105-08147
9011906236
main90119-06236
9011906316
main90119-06316
9015980019
main90159-80019
9017908096
main90179-08096
9046709043
main90467-09043
9046710073
main90467-10073
9165140612
main91651-40612
22 parts on this diagram · 1 diagram in section
