DECK BOARD & DECK TRIM COVER

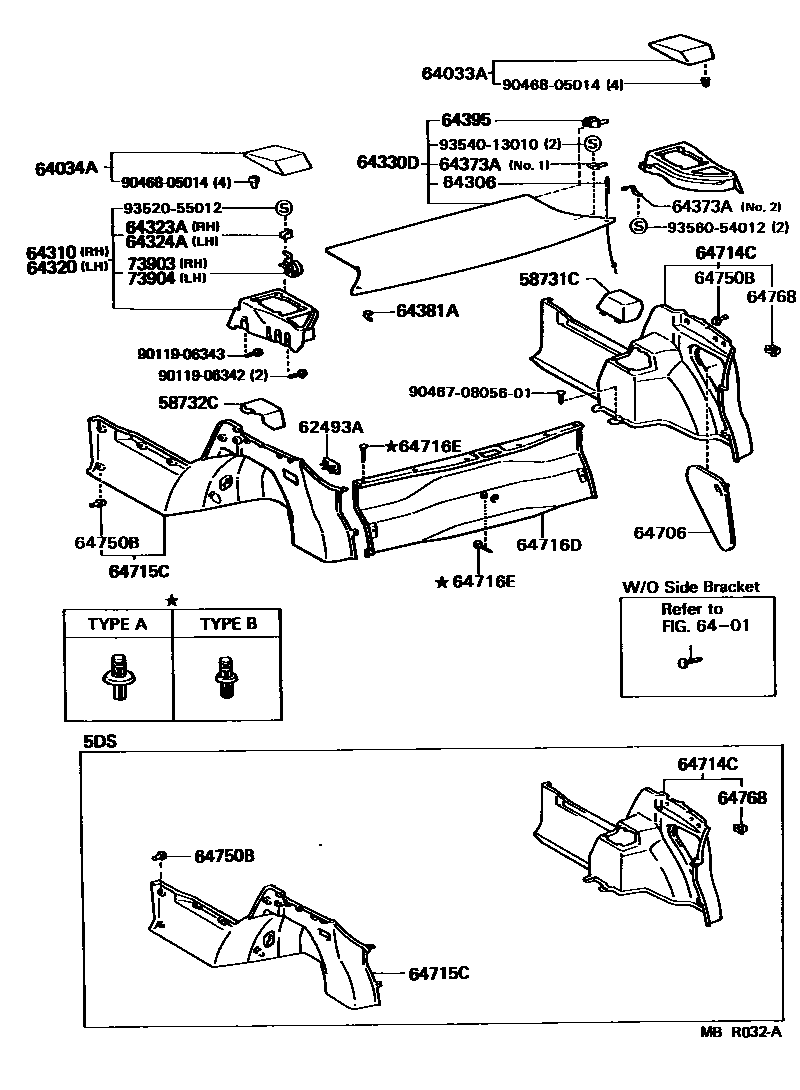

Parts diagram
58731CCAP, REAR ABSORBER
main58731-16040-01i198808-199009
BLACK,TRIM2#
sub58731-16040
main58731-16040-04i198808-199009
BLUE,TRIM8#
sub58731-16040
main58731-16040-06i198908-199009
BROWN,TRIM4#
sub58731-16040
58732CCAP, REAR ABSORBER
main58731-16040-01i198808-199009
BLACK,TRIM2#
sub58731-16040
main58731-16040-04i198808-199009
BLUE,TRIM8#
sub58731-16040
main58731-16040-06i198908-199009
BROWN,TRIM4#
sub58731-16040
62493ACOVER, REAR ROOM LAMP OPENING
main62493-16030-01i198808-199009
BLACK,TRIM2#
main62493-16030-04i198808-199009
BLUE,TRIM8#
main62493-16030-06i198808-199009
BROWN,TRIM4#
6401
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-16030-01i198808-199009
BLACK,TRIM2#
main64033-16030-04i198808-199009
BLUE,TRIM8#
main64033-16030-06i198808-199009
BROWN,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-16030-01i198808-199009
BLACK,TRIM2#
main64033-16030-04i198808-199009
BLUE,TRIM8#
main64033-16030-06i198808-199009
BROWN,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-12030i198808-199009
64310BRACKET, PACKAGE TRAY TRIM, RH
main64301-16070-01i198808-199009
BLACK,TRIM2#
main64301-16070-04i198808-199009
BLUE,TRIM8#
main64301-16070-06i198808-199009
BROWN,TRIM4#
main64301-16080-01i198808-199009
W(4 SPEAKER),BLACK,TRIM2#
main64301-16080-04i198808-199009
W(4 SPEAKER),BLUE,TRIM8#
main64301-16080-06i198808-199009
W(4 SPEAKER),BROWN,TRIM4#
main64301-16090-01i198808-199009
W(REAR SEAT SECURITY LOCK),BLACK,TRIM2#
main64301-16090-04i198808-199009
W(REAR SEAT SECURITY LOCK),BLUE,TRIM8#
main64301-16090-06i198808-199009
W(REAR SEAT SECURITY LOCK),BROWN,TRIM4#
main64301-16100-01i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BLACK,TRIM2#
main64301-16100-04i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BLUE,TRIM8#
main64301-16100-06i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BROWN,TRIM4#
64320BRACKET, PACKAGE TRAY TRIM, LH
main64302-16070-01i198808-199009
BLACK,TRIM2#
main64302-16070-04i198808-199009
BLUE,TRIM8#
main64302-16070-06i198808-199009
BROWN,TRIM4#
main64302-16080-01i198808-199009
W(4 SPEAKER),BLACK,TRIM2#
main64302-16080-04i198808-199009
W(4 SPEAKER),BLUE,TRIM8#
main64302-16080-06i198808-199009
W(4 SPEAKER),BROWN,TRIM4#
main64302-16090-01i198808-199009
W(REAR SEAT SECURITY LOCK),BLACK,TRIM2#
main64302-16090-04i198808-199009
W(REAR SEAT SECURITY LOCK),BLUE,TRIM8#
main64302-16090-06i198808-199009
W(REAR SEAT SECURITY LOCK),BROWN,TRIM4#
main64302-16100-01i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BLACK,TRIM2#
main64302-16100-04i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BLUE,TRIM8#
main64302-16100-06i198808-199009
W(4 SPEAKER & REAR SEAT SECURITY LOCK),BROWN,TRIM4#
64323ACLAMP, PACKAGE TRAY TRIM, RH
main64323-10010i198808-199009
64324ACLAMP, PACKAGE TRAY TRIM, LH
main64324-10010i198808-199009
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-16200-01i198808-199009
BLACK,TRIM2#
sub64330-16200
main64330-16200-04i198808-199009
BLUE,TRIM8#
sub64330-16200
main64330-16200-06i198808-199009
BROWN,TRIM4#
sub64330-16200
main64330-16210-01i198808-199009
W(4 SPEAKER),BLACK,TRIM2#
sub64330-16210
main64330-16210-04i198808-199009
W(4 SPEAKER),BLUE,TRIM8#
sub64330-16210
main64330-16210-06i198808-199009
W(4 SPEAKER),BROWN,TRIM4#
sub64330-16210
64373ASTOPPER, PACKAGE TRAY TRIM
main64373-16030i198808-199009
NO.2
main64373-16040i198808-199009
NO.2
main64373-16050i198808-199009
RH,NO.1
main64379-16010i198808-199009
LH,NO.1
64381AHANGER, PACKAGE TRAY TRIM
main64381-10010i198808-199009
64395PIN, PACKAGE TRAY TRIM HINGE
main64395-12020i198808-199009
64706COVER SUB-ASSY, QUARTER TRIM, JACK
main64766-16030-01i198808-199009
BLACK,TRIM2#
sub64766-16030
main64766-16030-04i198808-199009
BLUE,TRIM8#
sub64766-16030
main64766-16030-06i198808-199009
BROWN,TRIM4#
sub64766-16030
64714CCOVER, DECK SIDE TRIM, RH
main64714-16110-01i198808-199009
BLACK,TRIM2#
main64714-16110-04i198808-199009
BLUE,TRIM8#
main64714-16110-06i198808-199009
BROWN,TRIM4#
main64714-16901-01i198808-199009
BLACK,TRIM2#
main64714-16901-04i198808-199009
BLUE,TRIM8#
main64714-16901-06i198808-199009
BROWN,TRIM4#
64715CCOVER, DECK SIDE TRIM, LH
main64715-16110-01i198808-199009
BLACK,TRIM2#
main64715-16110-04i198808-199009
BLUE,TRIM8#
main64715-16110-06i198808-199009
BROWN,TRIM4#
main64715-16901-01i198808-199009
BLACK,TRIM2#
main64715-16901-04i198808-199009
BLUE,TRIM8#
main64715-16901-06i198808-199009
BROWN,TRIM4#
64716DCOVER, DECK TRIM, REAR
main64716-16040-01i198808-199009
BLACK,TRIM2#
main64716-16040-04i198808-199009
BLUE,TRIM8#
main64716-16040-06i198808-199009
BROWN,TRIM4#
main64716-16050-01i198808-199009
W(SECURITY LUTCH),BLACK,TRIM2#
main64716-16050-04i198808-199009
W(SECURITY LUTCH),BLUE,TRIM8#
main64716-16050-06i198808-199009
W(SECURITY LUTCH),BROWN,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-07043-11i198808-199009
BLACK,TRIM2#,TYPE A
sub90467-07043
main90467-07043-34i198808-199009
BLUE,TRIM8#,TYPE A
sub90467-07043
main90467-07043-36i198808-199009
BROWN,TRIM4#,TYPE A
sub90467-07043
main90467-07066-01i198808-199009
BLACK,TRIM2#,TYPE B
sub90467-07066
main90467-07066-04i198808-199009
BLUE,TRIM8#,TYPE B
sub90467-07066
main90467-07066-06i198808-199009
BROWN,TRIM4#,TYPE B
sub90467-07066
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
main67771-14040i198808-199009
64768STOPPER, JACK COVER
main64768-16010i198808-199009
73903BRACKET SUB-ASSY, REAR SHELF, RH
main73903-16010i198808-199009
73904BRACKET SUB-ASSY, REAR SHELF, LH
main73904-16010i198808-199009
9011906342
main90119-06342
9011906343
main90119-06343
904670805601
main90467-0805601
9046805014
main90468-05014
9352055012
main93520-55012
9354013010
main93540-13010
9356054012
main93560-54012

31 parts on this diagram · 1 diagram in section
