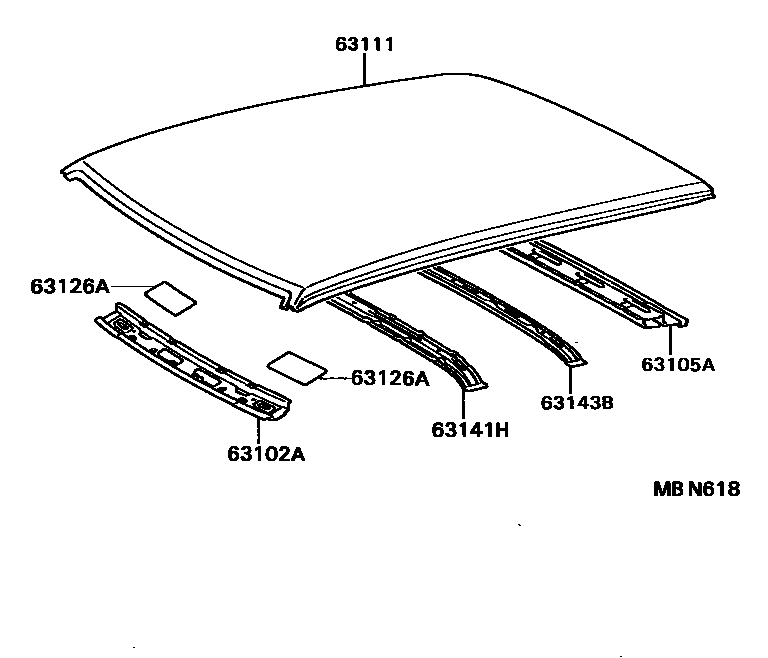

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16020iEL31198808-199009

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-16050iEL31..5DS198808-199009

main63105-16060iEL31..3DS198808-199009

63111PANEL, ROOF

main63111-16130iEL31..3DS198808-199009

main63111-16140iEL31..3DS..DX198808-198908

W(SUNROOF)

main63111-16150iEL31..5DS198808-199009

main63111-16160iEL31..2DS198808-199009

63126ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010iEL31..TER198808-199009

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-16040iEL31..3DS198808-199009

main63141-16050iEL31..5DS198808-199009

main63141-16060iEL31..2DS198808-199009

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-16010iEL31..5DS198808-199009

6 parts on this diagram · 3 diagrams in section
