COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iEL31198808-199009

55701PANEL SUB-ASSY, COWL

main55700-16110iEL31..MTM198808-199009

main55700-16150iEL31..3FC..CBR198808-199009

main55700-16170iEL31..EFI198908-199009

55713APANEL, COWL TOP SIDE, RH

main55713-16030iEL31198808-199009

55714APANEL, COWL TOP SIDE, LH

main55714-16030iEL31198808-199009

55715ABRACE, COWL TOP TO APRON, RH

main55715-16030iEL31198808-199009

55716ABRACE, COWL TOP TO APRON, LH

main55716-16030iEL31198808-199009

55734APLATE, WATER GUARD, RH

main55734-16030iEL31198808-199009

55735APLATE, WATER GUARD, LH

main55734-16030iEL31198808-199009

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-16010iEL31..USA198808-199009

sub55782-16020

main55782-16020iEL31..CND198808-199009

COLD SPEC

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-16040iEL31..USA198808-199009

main55783-16050iEL31..CND198808-199009

COLD SPEC

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-16020iEL31..USA198808-199009

main55784-16030iEL31..CND198808-199009

COLD SPEC

56111GLASS, WINDSHIELD

main56111-16150iEL31..(3DS,5DS)..(BASE,STD)198808-199009

*LAM,T=5.3

main56111-16160iEL31..(3DS,5DS)..DX198808-199009

*TL,T=5.3

main56111-16170iEL31..2DS..STD198808-198908

*TL,T=5.3

main56111-16180iEL31..2DS..DX198808-199009

*TL,T=5.3

56116SPACER, WINDSHIELD GLASS

main56116-24010iEL31198808-199009

56119SEAL, WINDSHIELD GLASS

main67272-32010iEL31198808-199009

9033301007

main90333-01007

9033320001

main90333-20001

9095001722

main90950-01722

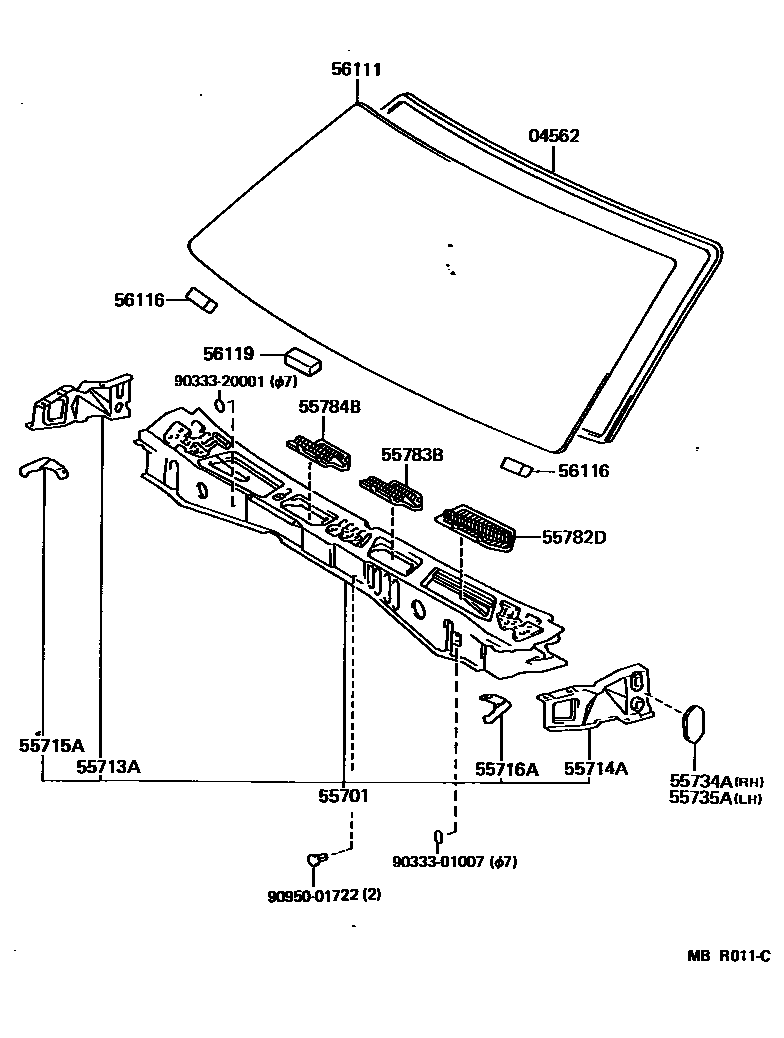

17 parts on this diagram · 1 diagram in section
