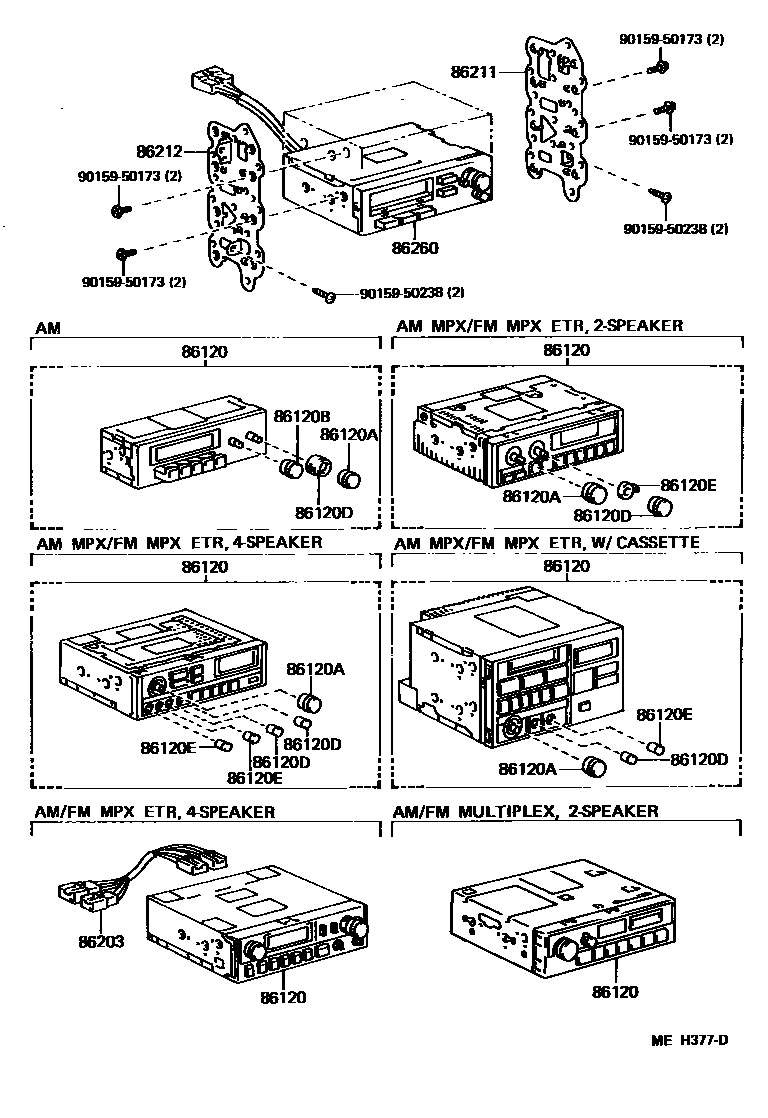

RADIO RECEIVER & AMPLIFIER & CONDENSER

86120RECEIVER ASSY, RADIO

main86120-12460iEL31198708-198808

AM/FM MULTIPLEX,2-SPEAKER

main86120-16350iEL31..USA198608-198808

FUJITSU TEN,AM

sub86120-10290

main86120-16360iEL31198608-198708

AM MPX/FM MPX ETR,2-SPEAKER

main86120-16370iEL31..DX198608-198708

AM MPX/FM MPX ETR,4-SPEAKER

main86120-16371iEL31..DX198708-198808

AM MPX/FM MPX ETR,4-SPEAKER

main86120-16380iEL31..DX198608-198708

AM MPX/FM MPX ETR,W/CASSETTE

main86120-16381iEL31..DX198708-198808

AM MPX/FM MPX ETR,W/CASSETTE

main86120-20680iEL31..USA198708-198808

AM/FM MPX ETR,4-SPEAKER

main86120-28030iEL31..USA198608-198708

AM/FM MPX ETR,4-SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main86128-14800iEL31..DX198608-198808

AM MPX/FM MPX ETR,4-SPEAKER

main86128-14840iEL31..DX198608-198808

AM MPX/FM MPX ETR,W/CASSETTE

main86128-16040iEL31..USA198608-198808

AM

main86128-16120iEL31198608-198808

AM MPX/FM MPX ETR,2-SPEAKER

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-16040iEL31..USA198608-198808

AM

86120DKNOB, RADIO RECEIVER TONE

main86128-14820iEL31..DX198608-198808

AM MPX/FM MPX ETR,4-SPEAKER

main86128-16020iEL31..DX198608-198808

AM MPX/FM MPX ETR,W/CASSETTE

main86128-16060iEL31..USA198608-198808

AM

main86128-16120iEL31198608-198808

AM MPX/FM MPX ETR,2-SPEAKER

86120EKNOB, RADIO RECEIVER BALANCE

main86128-14820iEL31..DX198608-198808

AM MPX/FM MPX ETR,4-SPEAKER

main86128-16020iEL31..DX198608-198808

AM MPX/FM MPX ETR,W/CASSETTE

main86128-16100iEL31198608-198808

AM MPX/FM MPX ETR,2-SPEAKER

86203WIRE, RADIO

main86203-16060iEL31..USA198608-198708

AM/FM MPX ETR,4-SPEAKER

86211BRACKET, RADIO, NO.1

main86211-16180iEL31198608-198808

86212BRACKET, RADIO, NO.2

main86212-16180iEL31198608-198808

86260TAPE PLAYER ASSY

main86260-16140iEL31198608-198808

9015950173

main90159-50173

9015950238

main90159-50238

11 parts on this diagram · 1 diagram in section
