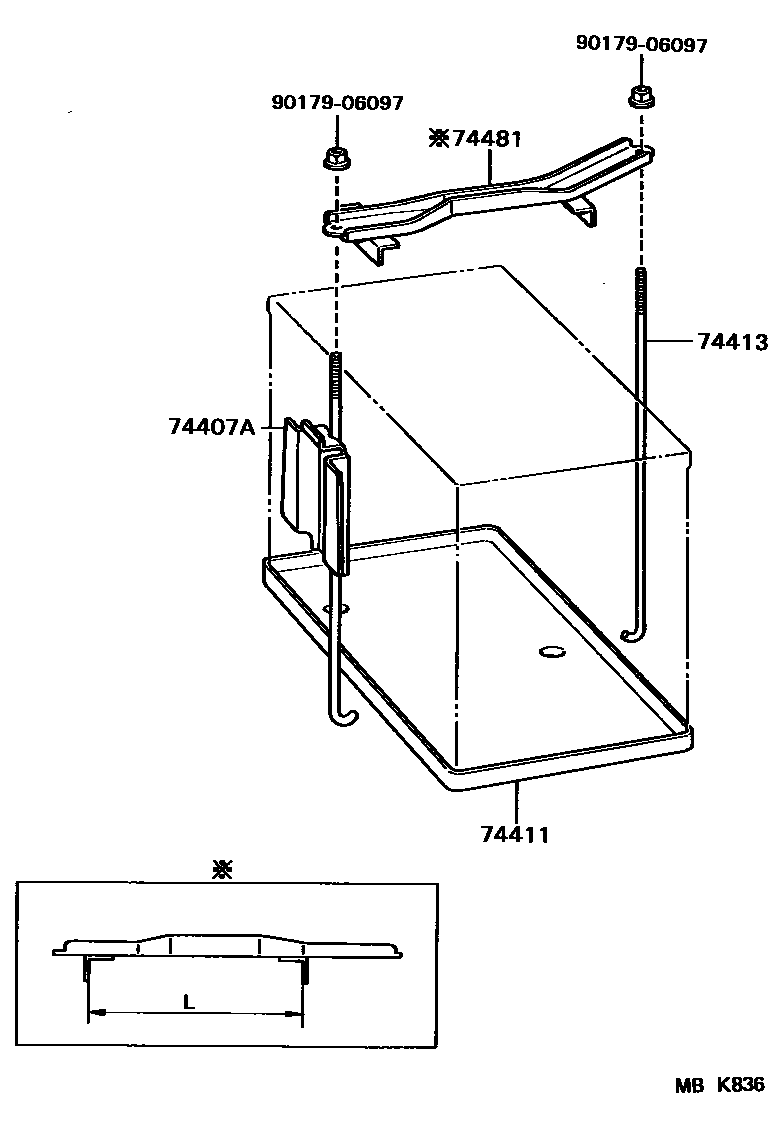

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-16010iEL31198608-198802

50D20L,55D23L

sub74407-16020

main74407-16020iEL31..USA198608-198802

32C24L

main74407-16020iEL31198802-198808

74411CARRIER, BATTERY

main74431-14020iEL31..USA198608-198808

138 X 241

main74431-14030iEL31198608-198808

176 X 263

sub74431-52040

74413BOLT, BATTERY CLAMP

main74451-14010iEL31198608-198808

50D20L,55D23L

main74451-16010iEL31..USA198608-198808

32C24L

74481CLAMP, BATTERY HOLD DOWN

main74404-16070iEL31..USA198608-198808

L=136

main74404-16080iEL31198608-198808

L=173

9017906097

main90179-06097

5 parts on this diagram · 1 diagram in section
