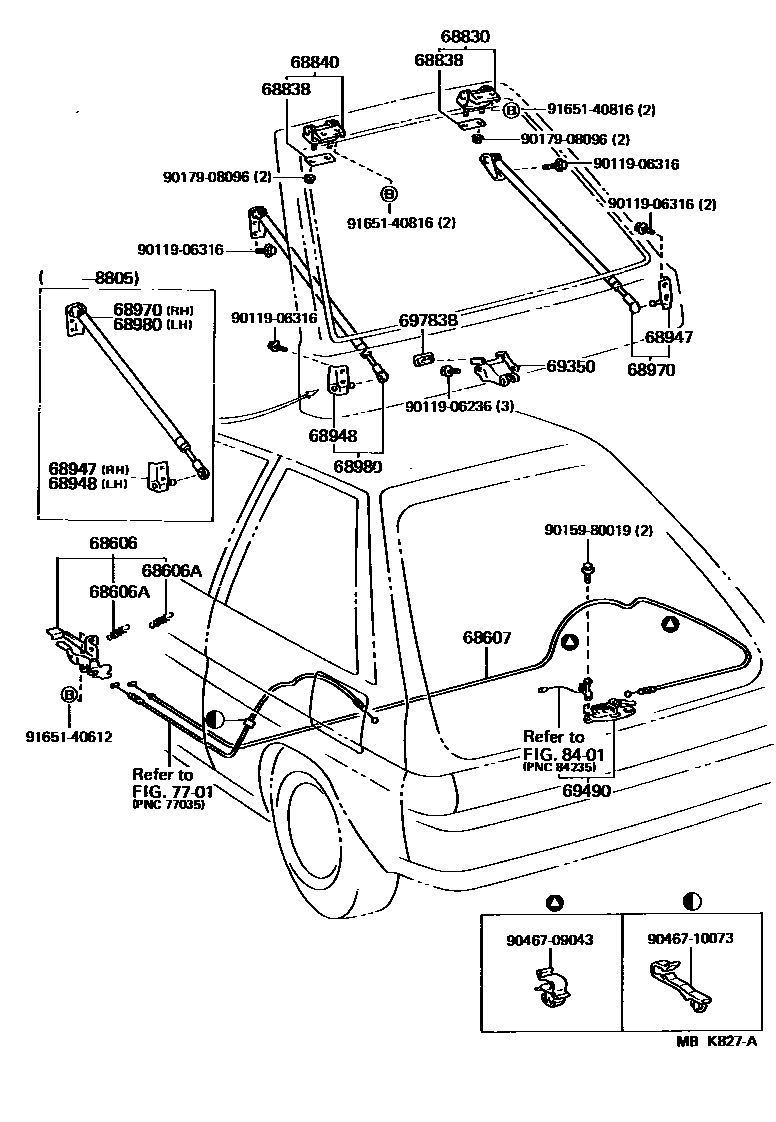

BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68830HINGE ASSY, BACK DOOR, RH
sub68801-16031
68838PAD, BACK DOOR HINGE, NO.1
sub68838-10011
68840HINGE ASSY, BACK DOOR, LH
sub68801-16031
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350LOCK ASSY, BACK DOOR
69490STRIKER ASSY, BACK DOOR LOCK
W/BACK DOOR OPENER
W/BACK DOOR OPENER(W/CANCEL)
69783BBEZEL, BACK DOOR INSIDE HANDLE
7701
8401
9011906236
main90119-06236
9011906316
main90119-06316
9015980019
main90159-80019
9017908096
main90179-08096
9046709043
main90467-09043
9046710073
main90467-10073
9165140612
main91651-40612
9165140816
main91651-40816
23 parts on this diagram · 1 diagram in section
