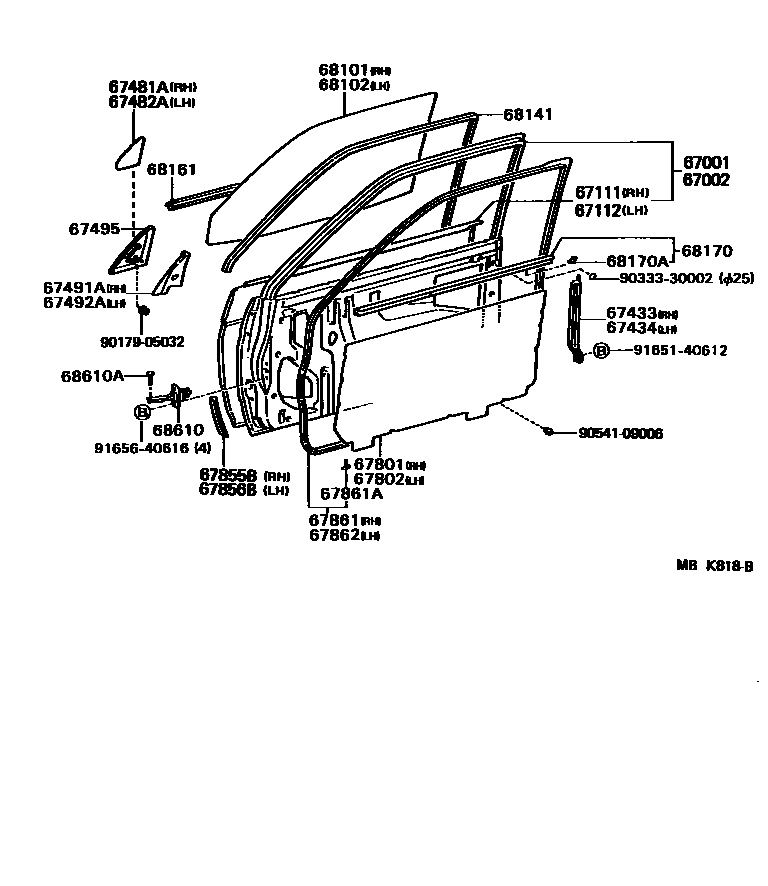

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67433FRAME, FRONT DOOR WINDOW, REAR LOWER RH
W/*TDS
67434FRAME, FRONT DOOR WINDOW, REAR LOWER LH
W/*TDS
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
W/O HOLE
W/HOLE
W/O HOLE
W/HOLE
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W/O HOLE
W/HOLE
W/O HOLE
W/HOLE
67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER
67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,*TEM,T=3.5
*TT,T=3.5,*TT,T=3.5
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.5,*TEM,T=3.5
*TT,T=3.5,*TT,T=3.5
*TT,T=3.5,*TT,T=3.5
*TEM,T=3.5,*TEM,T=3.5
*TT,T=3.5,*TT,T=3.5
68141RUN, FRONT DOOR GLASS
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
RH
RH
LH
LH
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68610CHECK ASSY, FRONT DOOR
68610APIN(FOR FRONT DOOR CHECK)
sub68617-90A01
9017905032
main90179-05032
9033330002
main90333-30002
9054109006
main90541-09006
9165140612
main91651-40612
9165640616
main91656-40616
31 parts on this diagram · 4 diagrams in section
