DECK BOARD & DECK TRIM COVER

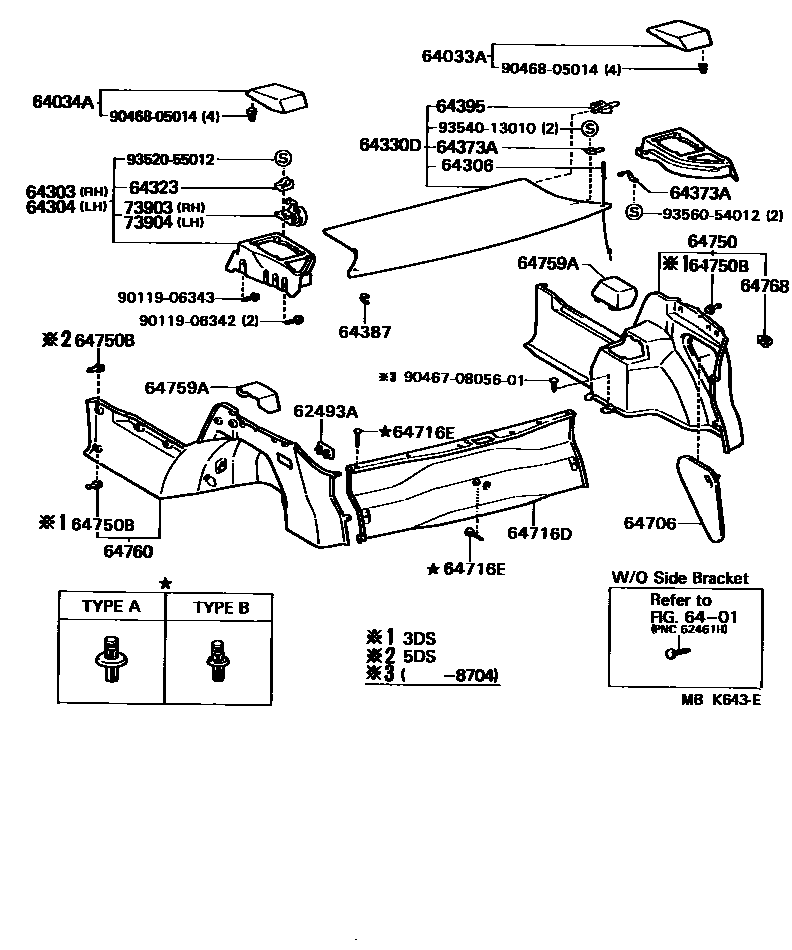

Parts diagram
62493ACOVER, REAR ROOM LAMP OPENING
main62493-16030-01i198608-198808
BLACK,BLACK,TRIM2#
main62493-16030-04i198608-198808
BLUE,BLUE,TRIM8#
main62493-16030-05i198608-198808
BEIGE,BEIGE,TRIM4#
6401
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
main64033-16030-01i198608-198808
BLACK,BLACK,TRIM2#
main64033-16030-04i198608-198808
BLUE,BLUE,TRIM8#
main64033-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
main64033-16030-01i198608-198808
BLACK,BLACK,TRIM2#
main64033-16030-04i198608-198808
BLUE,BLUE,TRIM8#
main64033-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
64303BRACKET SUB-ASSY, PACKAGE TRAY, RH
main64301-16070-01i198608-198808
BLACK,BLACK,TRIM2#
main64301-16070-04i198608-198808
BLUE,BLUE,TRIM8#
main64301-16070-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main64301-16080-01i198608-198808
W/SPEAKER,BLACK,BLACK,TRIM2#
main64301-16080-04i198608-198808
W/SPEAKER,BLUE,BLUE,TRIM8#
main64301-16080-05i198608-198808
W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#
main64301-16090-01i198608-198808
W/SECURITY LOCK,BLACK,BLACK,TRIM2#
main64301-16090-04i198608-198808
W/SECURITY LOCK,BLUE,BLUE,TRIM8#
main64301-16090-05i198608-198808
W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4#
main64301-16100-01i198608-198808
W/SECURITY LOCK,SPEAKER,BLACK,BLACK,TRIM2#
main64301-16100-04i198608-198808
W/SECURITY LOCK,SPEAKER,BLUE,BLUE,TRIM8#
main64301-16100-05i198608-198808
W/SECURITY LOCK,SPEAKER,BEIGE,DARK BEIGE,TRIM4#
64304BRACKET SUB-ASSY, PACKAGE TRAY, LH
main64302-16070-01i198608-198808
BLACK,BLACK,TRIM2#
main64302-16070-04i198608-198808
BLUE,BLUE,TRIM8#
main64302-16070-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main64302-16080-01i198608-198808
W/SPEAKER,BLACK,BLACK,TRIM2#
main64302-16080-04i198608-198808
W/SPEAKER,BLUE,BLUE,TRIM8#
main64302-16080-05i198608-198808
W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#
main64302-16090-01i198608-198808
W/SECURITY LOCK,BLACK,BLACK,TRIM2#
main64302-16090-04i198608-198808
W/SECURITY LOCK,BLUE,BLUE,TRIM8#
main64302-16090-05i198608-198808
W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4#
main64302-16100-01i198608-198808
W/SECURITY LOCK,SPEAKER,BLACK,BLACK,TRIM2#
main64302-16100-04i198608-198808
W/SECURITY LOCK,SPEAKER,BLUE,BLUE,TRIM8#
main64302-16100-05i198608-198808
W/SECURITY LOCK,SPEAKER,BEIGE,DARK BEIGE,TRIM4#
64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
main64306-12030i198710-198808
main64306-16030i198608-198710
sub64306-12030
64323CLAMP, PACKAGE TRAY TRIM, NO.1
main64323-10010i198608-198808
RH
main64324-10010i198608-198808
LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
main64330-16200-01i198608-198808
BLACK,BLACK,TRIM2#
sub64330-16200
main64330-16200-04i198608-198808
BLUE,BLUE,TRIM8#
sub64330-16200
main64330-16200-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub64330-16200
main64330-16210-01i198608-198808
W/SPEAKER,BLACK,BLACK,TRIM2#
sub64330-16210
main64330-16210-04i198608-198808
W/SPEAKER,BLUE,BLUE,TRIM8#
sub64330-16210
main64330-16210-05i198608-198808
W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#
sub64330-16210
64373ASTOPPER, PACKAGE TRAY TRIM
main64373-16030i198608-198808
main64373-16040i198608-198808
main64373-16050i198608-198808
RH
main64379-16010i198608-198808
LH
64387HANGER, PACKAGE TRAY TRIM
main64381-10010i198608-198808
64395PIN, PACKAGE TRAY TRIM HINGE
main64395-12020i198610-198808
64706COVER SUB-ASSY, QUARTER TRIM, JACK
main64766-16030-01i198608-198808
BLACK,BLACK,TRIM2#
sub64766-16030
main64766-16030-04i198608-198808
BLUE,BLUE,TRIM8#
sub64766-16030
main64766-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub64766-16030
64716DCOVER, DECK TRIM, REAR
main64716-16040-01i198608-198808
BLACK,BLACK,TRIM2#
main64716-16040-04i198608-198808
BLUE,BLUE,TRIM8#
main64716-16040-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main64716-16050-01i198608-198808
W/SECURITY LOCK,BLACK,BLACK,TRIM2#
main64716-16050-04i198608-198808
W/SECURITY LOCK,BLUE,BLUE,TRIM8#
main64716-16050-05i198608-198808
W/SECURITY LOCK,BEIGE,DARK BEIGE,TRIM4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-07043-11i198608-198808
TYPE A,BLACK,BLACK,TRIM2#
sub90467-07043
main90467-07043-15i198608-198808
TYPE A,BEIGE,DARK BEIGE,TRIM4#
sub90467-07043
main90467-07043-34i198608-198808
TYPE A,BLUE,BLUE,TRIM8#
sub90467-07043
main90467-07066-01i198608-198808
TYPE B,BLACK,BLACK,TRIM2#
sub90467-07066
main90467-07066-04i198608-198808
TYPE B,BLUE,BLUE,TRIM8#
sub90467-07066
main90467-07066-05i198608-198808
TYPE B,BEIGE,DARK BEIGE,TRIM4#
sub90467-07066
64750PANEL ASSY, DECK SIDE TRIM, RH
main64714-16110-01i198608-198808
BLACK,BLACK,TRIM2#
main64714-16110-04i198608-198808
BLUE,BLUE,TRIM8#
main64714-16110-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main64714-16901-01i198608-198808
BLACK,BLACK,TRIM2#
main64714-16901-04i198608-198808
BLUE,BLUE,TRIM8#
main64714-16901-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
64750BRETAINER(FOR DECK SIDE TRIM PANEL)
main67771-14040i198608-198808
64759ACOVER, SHOCK ABSORBER HEAD
main58731-16040-01i198608-198808
BLACK,BLACK,TRIM2#
sub58731-16040
main58731-16040-04i198608-198808
BLUE,BLUE,TRIM8#
sub58731-16040
main58731-16040-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub58731-16040
64760PANEL ASSY, DECK SIDE TRIM, LH
main64715-16110-01i198608-198808
BLACK,BLACK,TRIM2#
main64715-16110-04i198608-198808
BLUE,BLUE,TRIM8#
main64715-16110-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main64715-16901-01i198608-198808
BLACK,BLACK,TRIM2#
main64715-16901-04i198608-198808
BLUE,BLUE,TRIM8#
main64715-16901-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
64768STOPPER, JACK COVER
main64768-16010i198608-198808
73903BRACKET SUB-ASSY, REAR SHELF, RH
main73903-16010i198608-198808
W/SECURITY LOCK
73904BRACKET SUB-ASSY, REAR SHELF, LH
main73904-16010i198608-198808
W/SECURITY LOCK
9011906342
main90119-06342
9011906343
main90119-06343
904670805601
main90467-0805601
9046805014
main90468-05014
9352055012
main93520-55012
9354013010
main93540-13010
9356054012
main93560-54012

29 parts on this diagram · 1 diagram in section
