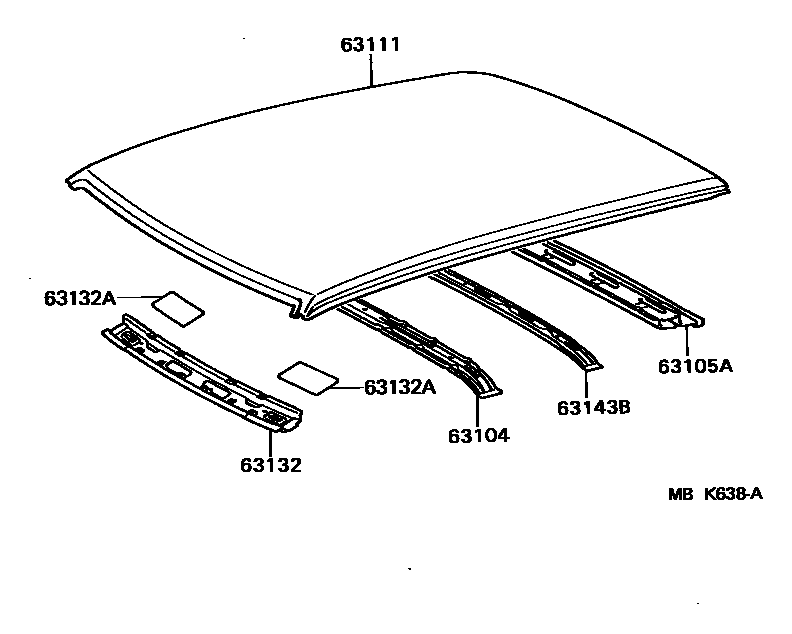

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16040iEL31..3DS¥1,970198608-198808

main63141-16050iEL31..5DS¥1,970198608-198808

main63141-16060iEL31..2DS¥2,300198701-198808

main63142-16020iEL31..3DS..DX¥14,600198608-198808

W/SUN ROOF

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-16030iEL31..3DS¥7,900198608-198704

sub63105-16060¥7,900

main63105-16040iEL31..5DS¥7,900198608-198704

sub63105-16050¥7,900

main63105-16050iEL31..5DS¥7,900198704-198808

main63105-16060iEL31..3DS¥7,900198704-198808

main63133-16030iEL31..2DS¥2,830198701-198808

63111PANEL, ROOF

main63111-16130iEL31..3DS¥30,700198608-198808

main63111-16140iEL31..3DS..DX¥30,700198608-198808

W/SUN ROOF

main63111-16150iEL31..5DS¥34,600198608-198808

main63111-16160iEL31..2DS¥30,700198701-198808

63132PANEL, WINDSHIELD HEADER, INNER

main63102-16020iEL31¥4,220198608-198808

63132ADAMPER, WINDSHIELD HEADER PANEL

main63126-16010iEL31¥1,670198608-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-16010iEL31..5DS¥2,920198608-198808

6 parts on this diagram · 3 diagrams in section
