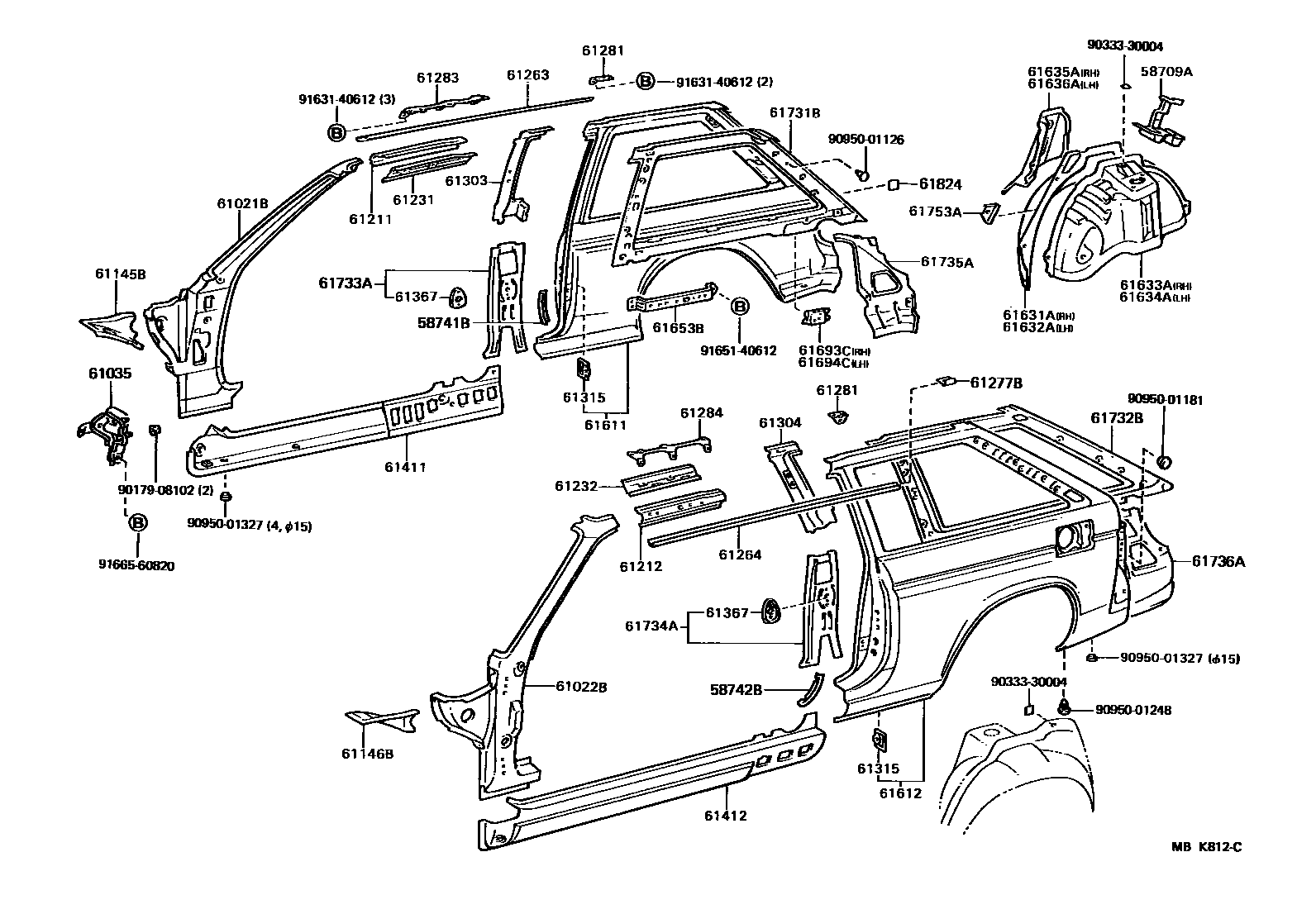

SIDE MEMBER
58709ACARRIER SUB-ASSY, JACK
58741BPROTECTOR, QUARTER PANEL, RH
58742BPROTECTOR, QUARTER PANEL, LH
61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH
61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61263CHANNEL, ROOF DRIP, REAR RH
61264CHANNEL, ROOF DRIP, REAR LH
61277BJOINT, ROOF DRIP CHANNEL
61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1
W/SUN ROOF
61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH
W/SUN ROOF
61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH
W/SUN ROOF
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61304REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61635ABRACE, QUARTER WHEEL HOUSE, RH
61636ABRACE, QUARTER WHEEL HOUSE, LH
61653BBRACKET, DECK SIDE TRIM
61693CRETAINER, REAR SEATBACK SET, RH
61694CRETAINER, REAR SEATBACK SET, LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61753ARETAINER, QUARTER TRIM, LOWER
61824PLATE, NOISE CONTROL, NO.1
sub62939-23010
9017908102
main90179-08102
9033330004
main90333-30004
9095001126
main90950-01126
9095001181
main90950-01181
9095001248
main90950-01248
9095001327
main90950-01327
9163140612
main91631-40612
9165140612
main91651-40612
9166560820
main91665-60820
52 parts on this diagram · 3 diagrams in section
